ams AS5900_EVM_SN Evaluation kit

Description

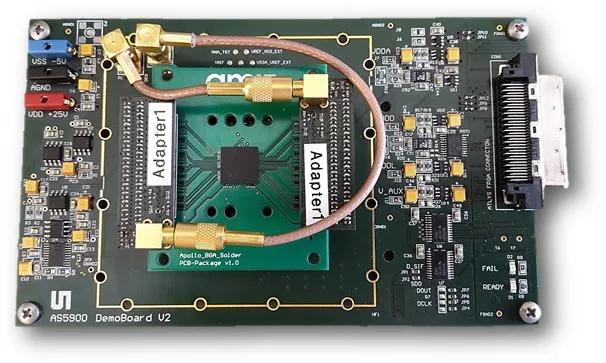

The AS5900 Evaluation Board allows the configuration of the device and the measurement of all relevant parameters like input noise, power consumption, channel uniformity and linearity. In normal configuration, all parameters are measured with an external test setup to simulate the input current from the photodiodes. The evaluation board is designed in a way to attach a customized photodiode array on top of the AS5900 sample board. The evaluation kit comes with several adapter boards that are assembled for the different types of measurements. An additional unpopulated adapter board is included in the kit for customer specific input currents optimized for the specific application.
