ams AS1110 LED Driver IC

ams AS1110 LED Driver IC
Discontinued
×
Discontinued
×

Description

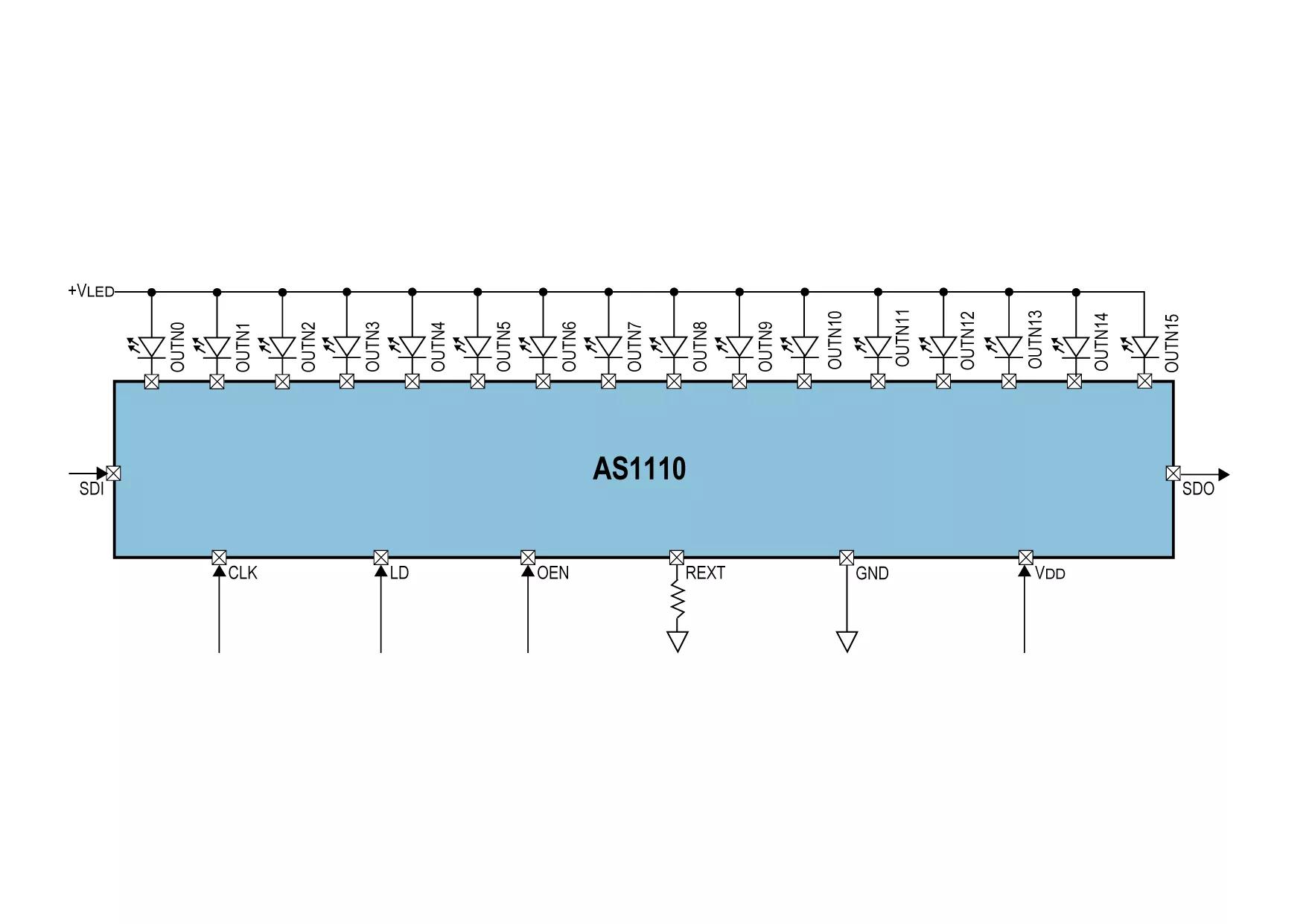

The AS1110 is a SPI interfaced, 100mA 16-channel direct LED driver IC and offers on-chip diagnostics. It can detect open/short LED position during operation and offers a (flickerfree) low current diagnostic mode.
Datasheet
Contact us Support

Details

Features

  • Open/Short error detection
  • Low current diagnostic mode
  • 100mA output current
  • 50MHz SPI interface

Benefits

  • Improved picture quality & reduced maintenance cost through identifying defect LEDs & its position
  • No flickering during LED test
  • Highest brightness of LEDs
  • Allows high resolution external PWM via SPI

Parameters

Read-Back
Yes
LED Current per Output [mA]
100
Supply Voltage [V]
3.0 to 5.5
LED-to-LED Matching [%]
3
Error Detection
Yes
Package
SSOP-24 \ TQFN(5x5)-28
Output [#]
16
