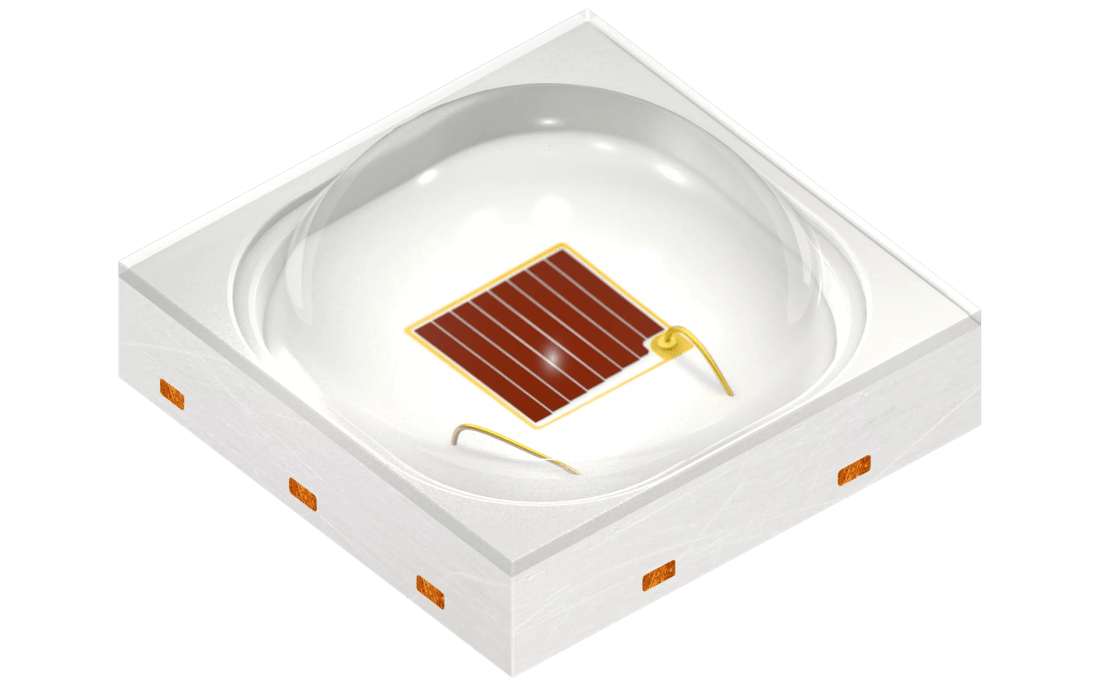

OSRAM OSCONIQ® P 3030, GH QSSPA1.24

OSRAM OSCONIQ® P 3030, GH QSSPA1.24
×

Description

The OSCONIQ P 3030 Colors family LED comes with well known superior robustness, high reliability, long lifetime, low thermal resistance. Compact and proven 3mm x 3mm package and established footprint. Perfectly addressing applications that demand for high efficiency and long lifetime.
Datasheet
GH QSSPA1.24
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Hyper Red (635-666 nm)
Electrical power
0.74 W
High
Brightness
ΦV
31.6 lm
IV
9.13 cd
ΦE
480 mW
IE
139 mW/sr
Beam angle
∢
130 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
3.0 mm
w
3.0 mm
h
1.73 mm

Ordering codes

Product Type Description Order No. Availability
GH QSSPA1.24-4T2U-1-1 ΦE = 400 ... 560 mW (IF = 350 mA) Q65112A8267
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
