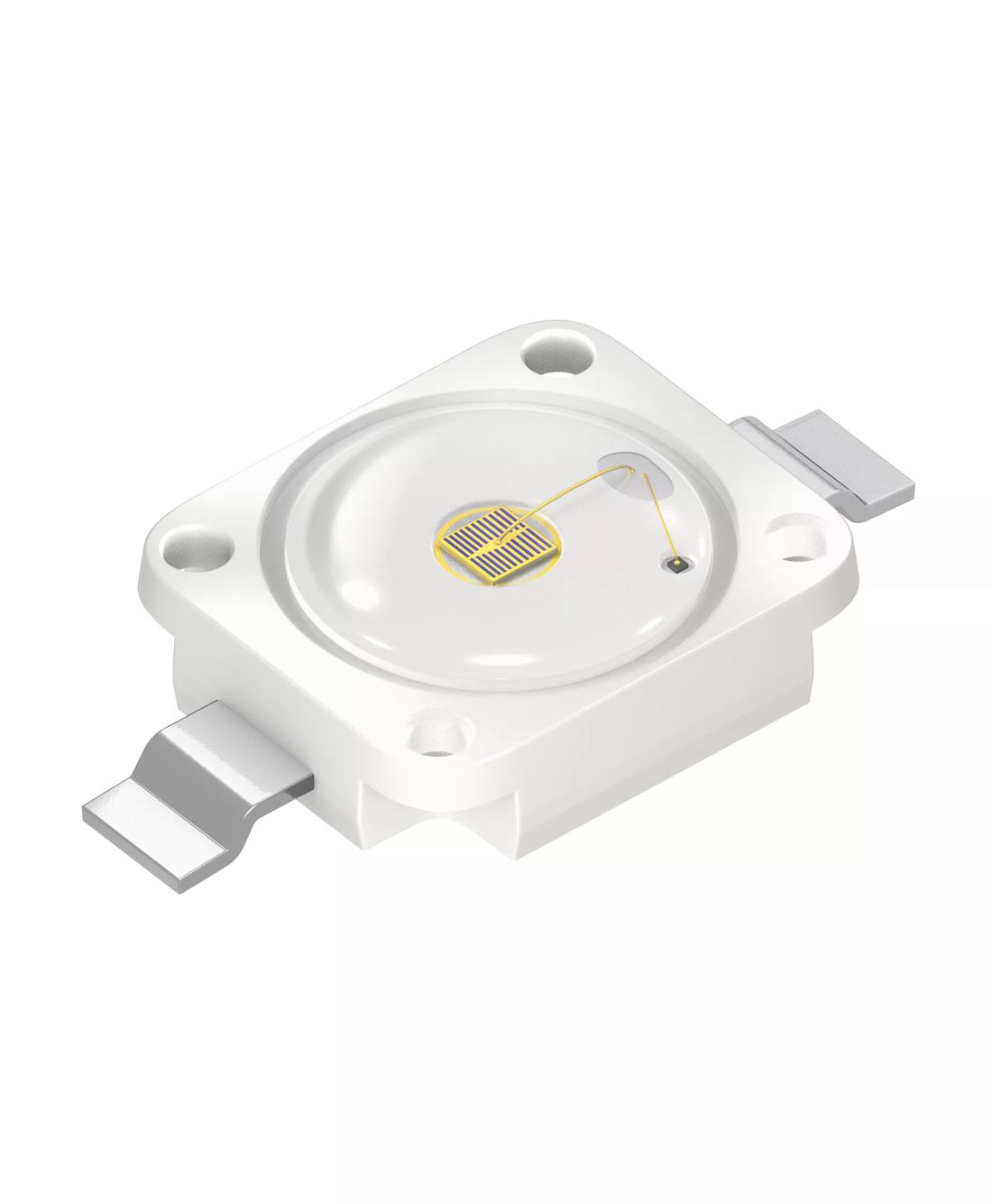

OSRAM Golden DRAGONĀ®, SFH 4232A

Discontinued
Ɨ
Discontinued

Description

High Power Infrared Emitter (850 nm)

Details

Parameters

Color of emission
Infrared (>800 nm)
Current
IF
1000 mA
Peak wavelength
Ī»
860 nm
Brightness
Ī¦E
650 mW
IE
205 mW/sr
Beam angle
āˆ¢
120 Ā°
Dimension
l
11.0 mm
w
6.0 mm
h
1.8 mm
Operating temperature
Top min.
-40 Ā°C
Top max.
100 Ā°C

Ordering codes

Product Type Description Order No. Availability
SFH 4232A Ī¦e = 400 ... 1000 mW, (Ī¦e=650 mW typ.) (IF = 1000 mA) Q65111A3235
SFH 4232A-DB Ī¦e = 500 ... 1000 mW, (Ī¦e=650 mW/sr typ.) (IF = 1000 mA) Q65111A5199
