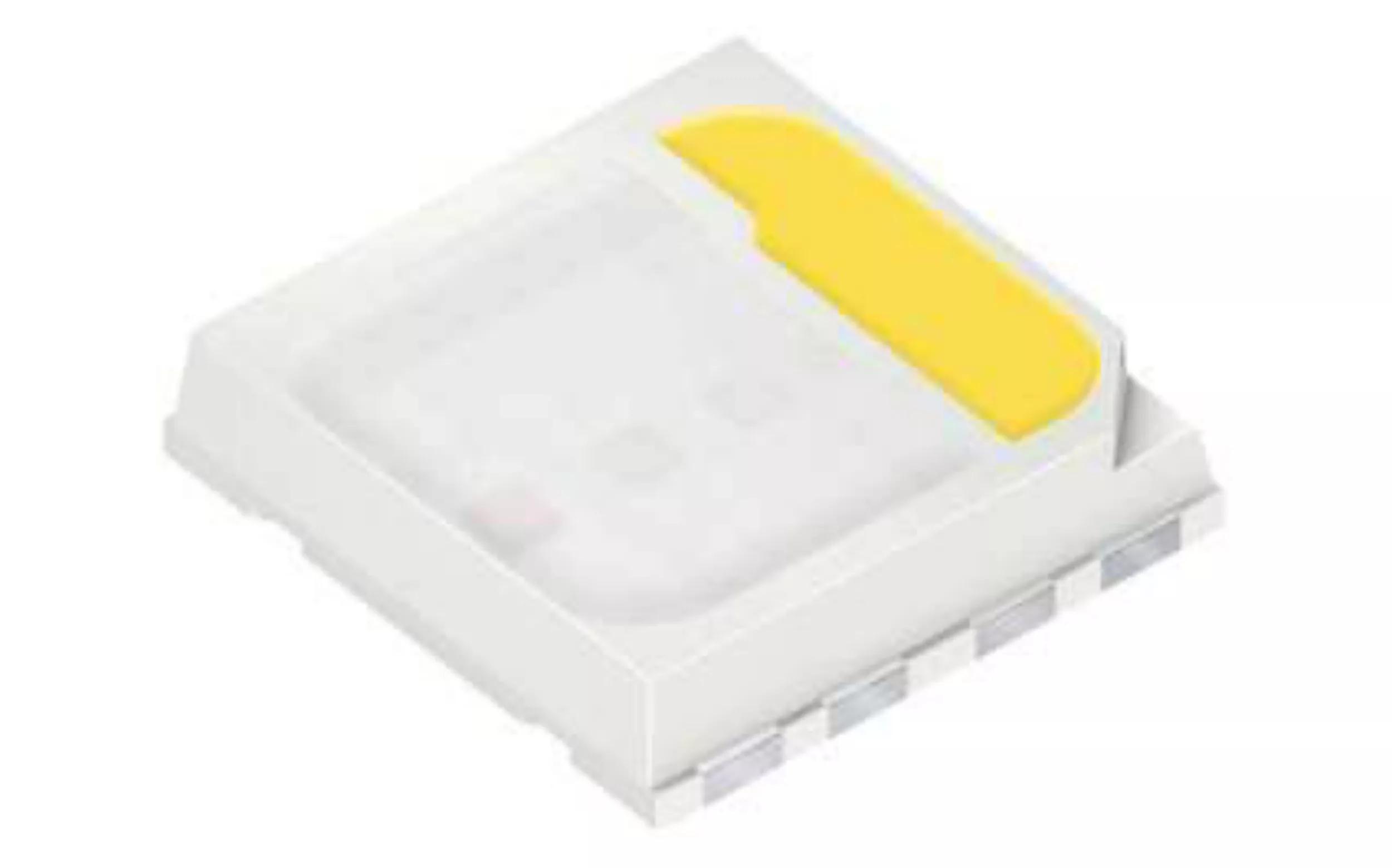

OSRAM DURIS® E 5050, GW J9LHS2.4M

Description

This 5050 RGBW device is the first 4-in-1 color package for general lighting applications from ams OSRAM. It features industry-compatible performance and form factor and promises outstanding reliability for customers. Each chip is individually controlled to enable high customization color options along with tight wavelength and color binning for excellent homogeneity.

Details

Parameters

Color of emission
Red (612-630 nm)
Green (565-575 nm)
Blue (450-480 nm)
White
Electrical power
0.21 W
0.3 W
0.31 W
0.29 W
Mid
Mid
Mid
Mid
Brightness
ΦV
38.9 lm
IV
13 cd
ΦE
121 mW
IE
40.4 mW/sr
Beam angle
120 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
50.0 mm
w
50.0 mm
h
11.0 mm

Ordering codes

Product Type Description Order No. Availability
GW J9LHS2.4M-C0C7-2+35+13+57AW-1 Iv = 4500 ... 10500 mcd (IF□=□100□mA)
Iv = 8500 ... 17500 mcd (IF□=□100□mA)
Iv = 1800 ... 4500 mcd (IF□=□100□mA)
Iv = 8500 ... 17500 mcd (IF□=□100□mA), 5700 K
Q65113A4659
GW J9LHS2.4M-C0C7-2+35+13+35AW-1 Iv = 4500 ... 10500 mcd (IF□=□100□mA)
Iv = 8500 ... 17500 mcd (IF□=□100□mA)
Iv = 1800 ... 4500 mcd (IF□=□100□mA)
Iv = 8500 ... 17500 mcd (IF□=□100□mA), 3500 K
Q65113A4656
GW J9LHS2.4M-C0C7-2+35+13+30AW-1 Iv = 4500 ... 10500 mcd (IF□=□100□mA)
Iv = 8500 ... 17500 mcd (IF□=□100□mA)
Iv = 1800 ... 4500 mcd (IF□=□100□mA)
Iv = 8500 ... 17500 mcd (IF□=□100□mA), 3000 K
Q65113A4660
GW J9LHS2.4M-C0C7-2+35+13+50AW-1 Iv = 4500 ... 10500 mcd (IF□=□100□mA)
Iv = 8500 ... 17500 mcd (IF□=□100□mA)
Iv = 1800 ... 4500 mcd (IF□=□100□mA)
Iv = 8500 ... 17500 mcd (IF□=□100□mA), 5000 K
Q65113A4658
GW J9LHS2.4M-C0C7-2+35+13+40AW-1 Iv = 4500 ... 10500 mcd (IF□=□100□mA)
Iv = 8500 ... 17500 mcd (IF□=□100□mA)
Iv = 1800 ... 4500 mcd (IF□=□100□mA)
Iv = 8500 ... 17500 mcd (IF□=□100□mA), 4000 K
Q65113A4657
