Details
Parameters
Photocurrent
0.51
µA
Fall time
tf
0.067
µs
Rise time
tf
0.047
µs
Spectral range of sensitivity typ.
λ10%
min.
400
nm
λ10%
max.
1100
nm
Radiant sensitive area
A
1.51
mm²
Beam angle
∢
120
°
Dimension
l
2.0
mm
w
1.8
mm
h
0.6
mm
Operating temperature
Top
min.
-40
°C
Top
max.
85
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| SFH 2704A | = N/A (N/A) | Qno_SFH 2704A |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
| SFH 2704 | IP = ≥ 0.39 µA, (IP=0.51 µA typ.) (Ee=0.10 mW/cm²) | Q65112A7214 |
Downloads
For other documents visit our
Download center
Application note
Optical force sensing – design considerations
Product related
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Manual lead-free soldering of LEDs
Soldering and processing
Measuring of the temperature profile during the reflow solder process
Soldering and processing
Processing of SMD LEDs
Soldering and processing
Recommended pick-and-place tools of LEDs
Soldering and processing
PCB technologies for LED applications
Thermal management
Determination of resistances for brightness compensation
Electrical design
Resources
CAD Data
CAD Data
Optical Simulation
Optical Simulation
Images

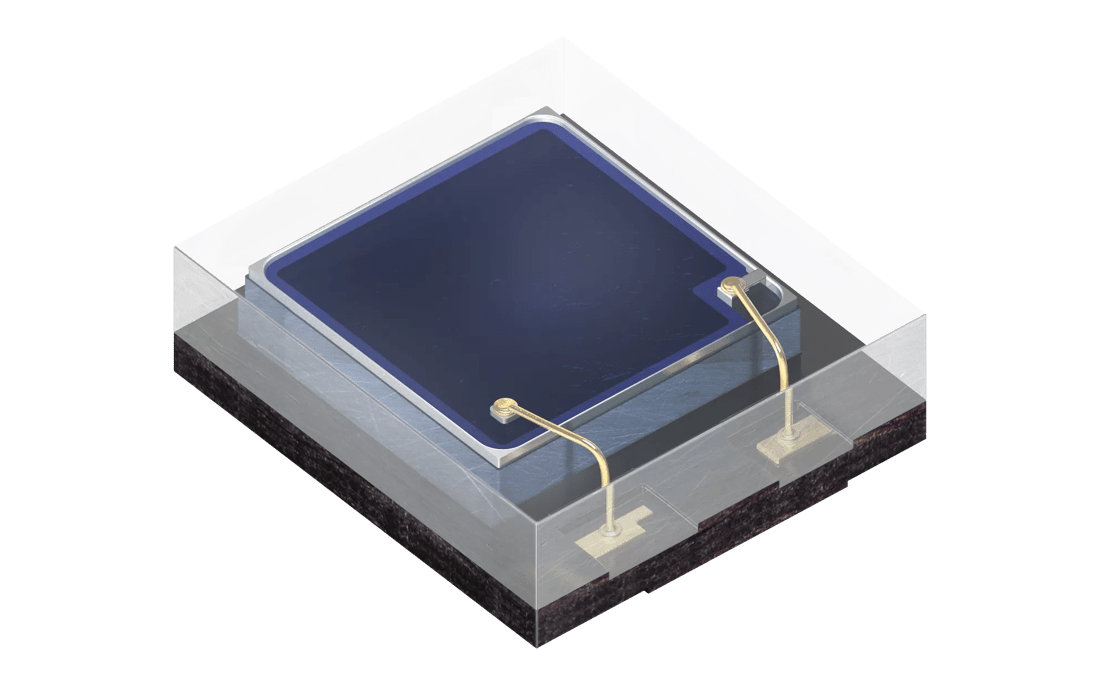

SFH_2714_36x22.4mm_cmyk
