OSRAM DIL, BP 104 F

Discontinued
×
Discontinued

Description

Silicon PIN Photodiode with Daylight Blocking Filter
Datasheet
BP 104 F
English
Download
Select & order
Contact us Support

Details

Parameters

Photocurrent
34.0 µA
Fall time
tf
0.02 µs
Rise time
tf
0.02 µs
Spectral range of sensitivity typ.
λ10% min.
800 nm
λ10% max.
1100 nm
Radiant sensitive area
A
4.84 mm²
Beam angle
∢
120 °
Dimension
l
3.85 mm
w
5.15 mm
h
2.05 mm
Operating temperature
Top min.
-40 °C
Top max.
100 °C

Ordering information

Product Type Description Ordering code Availability
BP 104 F IP = ≥ 28 µA, (IP=34 µA typ.) (Ee=1 mW/cm²) Q62702P0084 Discontinued

Downloads

Datasheets
BP 104 F · Datasheet · PDF · en_US

Application note
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US

Images

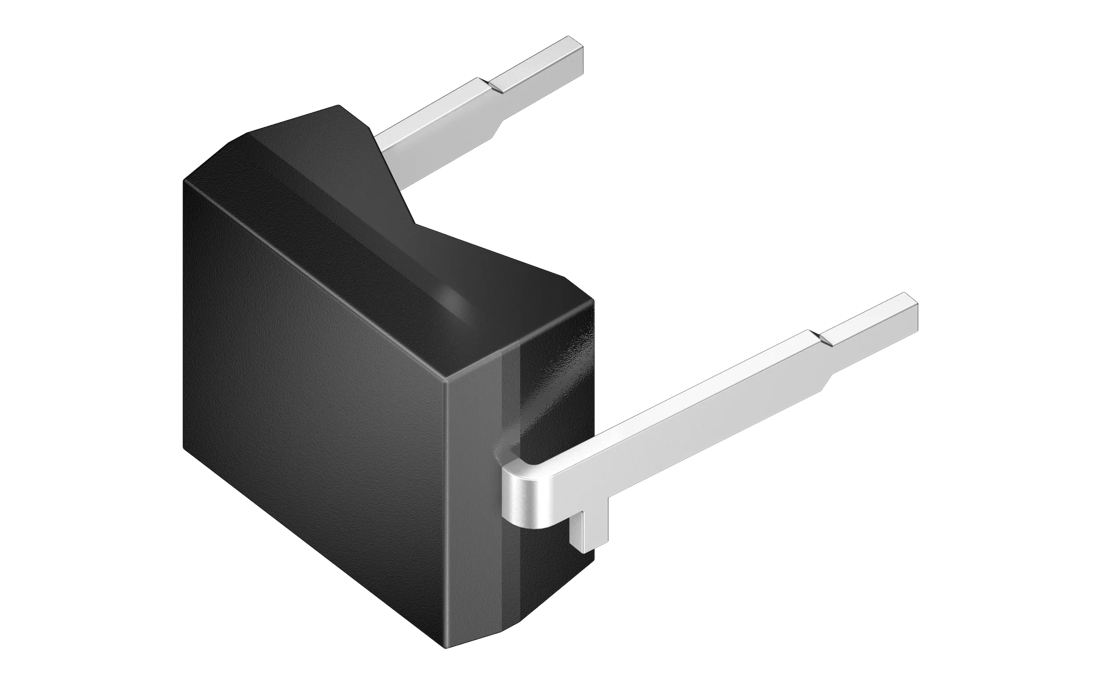

DIL BP 104 F, BPW 34 F, BPW 34 FA · Images · TIF
