Details
Parameters
Photocurrent
25.0
µA
Fall time
tf
6.0
µs
Rise time
tf
6.0
µs
Spectral range of sensitivity typ.
λ10%
min.
740
nm
λ10%
max.
1100
nm
Radiant sensitive area
A
0.31
mm²
Beam angle
∢
30
°
Dimension
l
3.8
mm
w
3.8
mm
h
4.85
mm
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

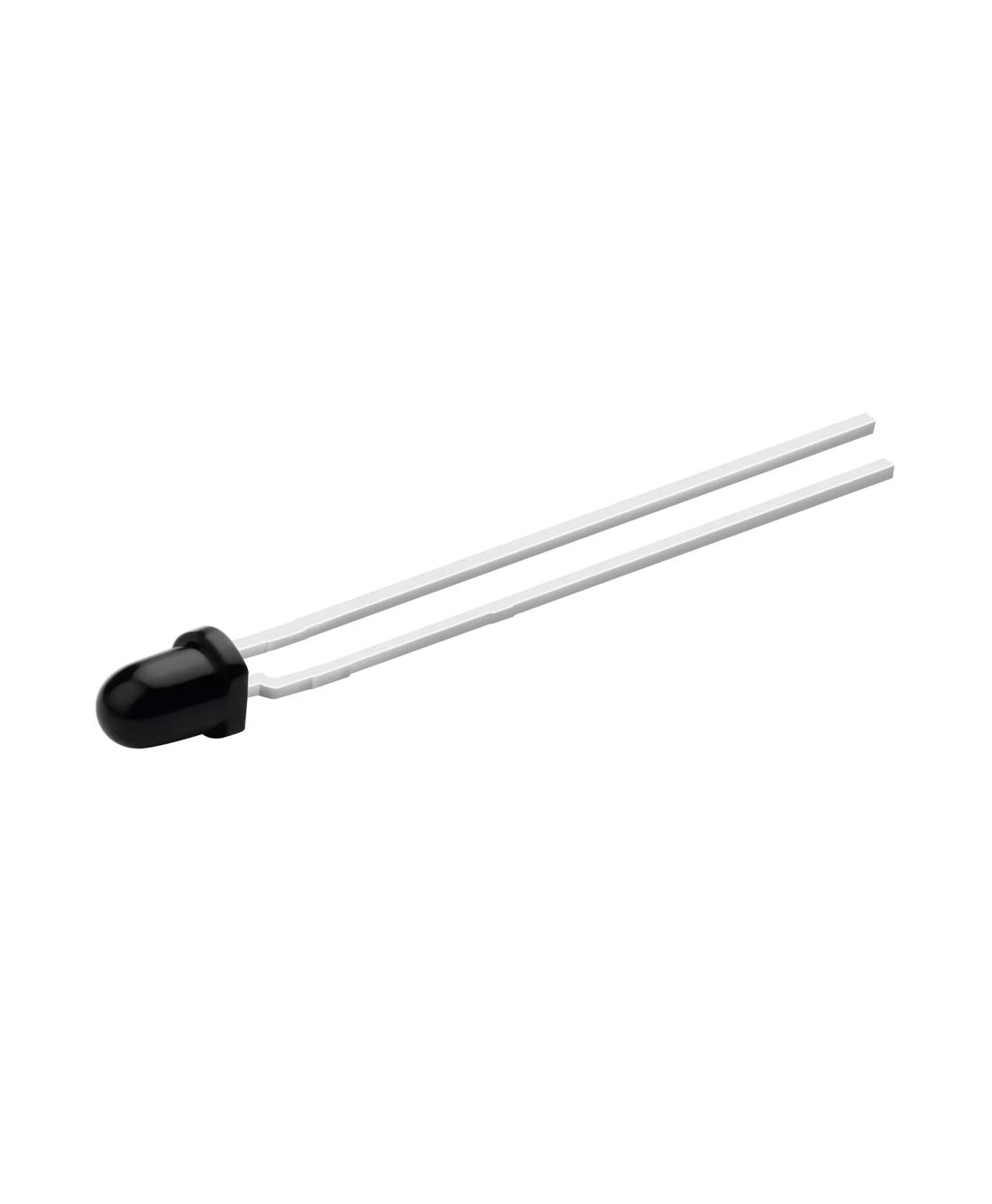

| SFH 229 FA | IP = ≥ 12.0 µA, (IP=25 µA typ.) (Ee=1 mW/cm²) | Q62702P0216 |
