ams AS7210 Smart Daylighting Manager

Discontinued
×
Discontinued

Description

AS7210 is a highly integrated smart lighting manager with an embedded digital ambient light sensor (ALS). This provides single-device, closed-loop and automatic adjustment of the brightness of florescent and LED lamps and luminaires to maintain constant lux in response to available daylight. For streamlined system integration, luminaire control is through direct connection to 0-10V dimmers, with control outputs that include direct PWM to LED drivers or analog 0-10V to standard dimming ballasts.
Contact us Support

Details

Features

  • Photopic sensor for accurate LUX control
  • Compatible with standard dimmer, occupancy controls and ballasts
  • Built-in PWM generator for precise 1% dimming
  • 2.3 x 2.5mm WLCSP package, 5 x 5mm LGA

Benefits

  • Automatic daylighting
  • Direct 0-10V inputs/outputs
  • Direct PWM interfaces
  • Choice of compact 20-pin packages

Downloads

Images

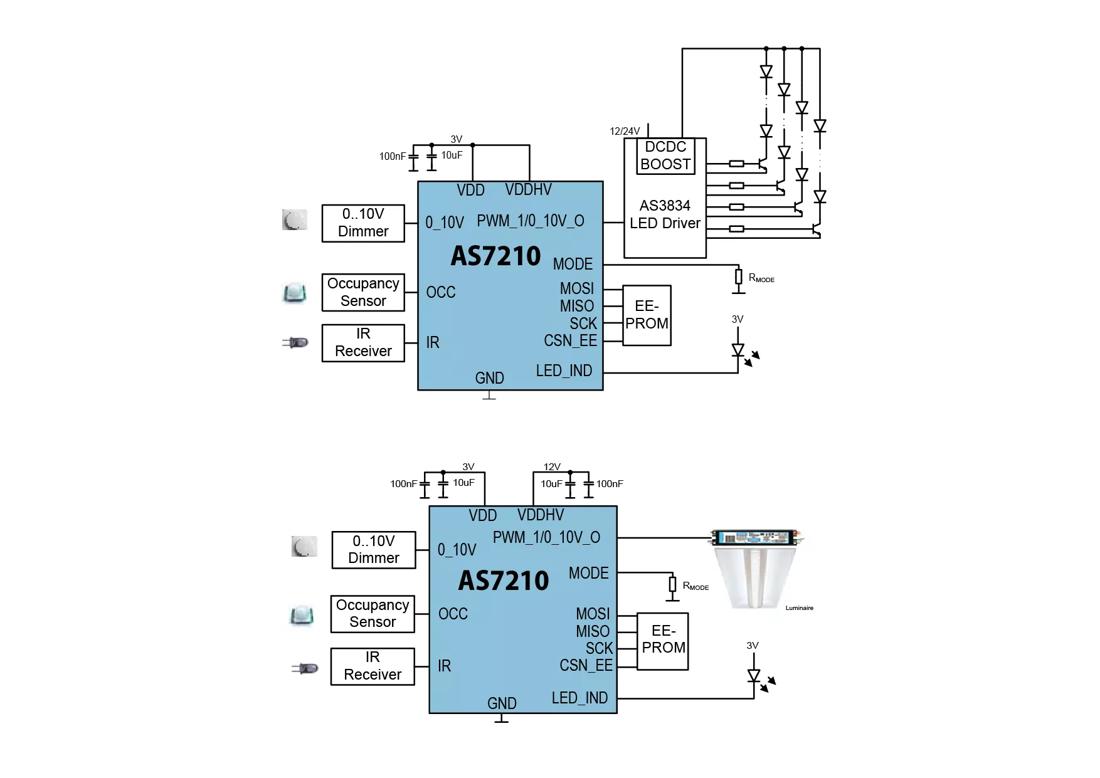

AS7210_BD000348_1-00 · Block diagram · PNG

Software
AS72xx_App_v5-1.zip · App · ZIP · en_US
AS72xx_EvalSW_v5-1-0.zip · Evaluation software · ZIP · en_US
