ams AS7343 Spectral Sensor

×
New

Description

The AS7343 is a 14-channel highly versatile, multi-purpose spectral sensor enabling new consumer, commercial, industrial and laboratory applications. It is optimized for reflective, transmissive and emissive measurements including color matching, fluid or reagent analysis or general spectral reconstruction.

The spectral response is defined by individual channels covering approximately 380 nm to 1000 nm with 12+2 channels: 12 in the visible spectrum (VIS) to near-infrared (NIR) range, a clear channel and flicker channel. Applications can be assisted by full spectral reconstruction of light and an integrated flicker detection channel that can automatically flag ambient light flicker at 50/60 Hz as well as buffer data for externally calculating other flicker frequencies.

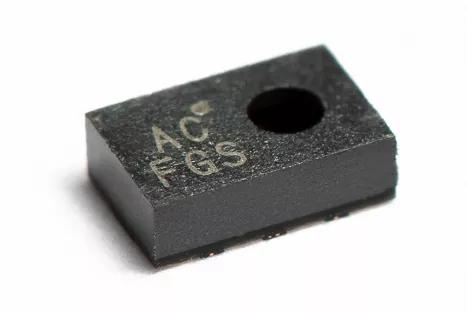

AS7343 integrates high-precision optical filters onto standard CMOS silicon via deposited interference filter technology. A built-in aperture controls the light entering the sensor array to increase accuracy. A programmable digital GPIO and LED driver enable light source and trigger/sync control. Device control and spectral data access is implemented through a serial I²C interface. The device is available in an ultra-low profile package with dimensions of 3.1 mm x 2 mm x 1 mm.

Details

Features

  • 14 optical channels distributed over VIS, including XYZ and one in NIR
  • Including 2 extra channels: Clear and Flicker Detection
  • 6 parallel ADCs for signal processing
  • Ultra-low-profile package 3.1mm x 2mm x 1mm

Benefits

  • Spectral information & XYZ backwards compatibility enables spectrometer-like object color measurements
  • Highest sensitivity vs. channel-count of the multi-purpose spectral sensing product family
  • Optimized channel count and signal processing for fast measurements
  • Highly compact, cost-effective packaging

Parameters

Function
spectral sensing
flicker detection
Supply voltage
1.8 V
min.
1.7 V
max.
2.0 V
Interface
input
I²C slave (400kHz)
output
I²C slave (400kHz)
Operating ambient temperature
min.
-30 °C
max.
85 °C
Integrated diffuser
No
Package
OLGA
Package dimension
l
3.1 mm
w
2.0 mm
h
1.0 mm
Input/Output Voltage
1.8 V

Ordering codes

Product Type Description Order No. Availability
AS7343-DLGT OLGA-8 Tape & Reel 13-inch 10000 pcs/reel 0x39 Q65114A1313
AS7343-DLGM OLGA-8 Tape & Reel 7-inch 500 pcs/reel 0x39 Q65114A1315
