Details
Features
- 64 channel photodiode matrix
- Spectral range 750-1050nm (61 wavelengths, 5nm separation)
- Integrated NIR LEDs to cover range from 750nm to 1050nm
- Integrated micro optics to limit angle of incidence of sensor (Micro Lens Array)
- 16 independent ADCs with programmable gain and integration time
- Typical integration time for 64 channel is 262ms - I²C interface and interrupt
- Power consumption (typ): 2,5mA active, 2µA sleep
- Module size 6.6 x 6 x 2.2mm (OLGA 10 package)
Benefits
- Near infrared spectral footprint analysis of materials, goods, substances, fabrics, foodstuff and more
- High resolution for spectral identification purposes
- All-in-one module enables high sensor stability at fast readout speeds
- Low-cost sensor solutions compared to usual lab equipment such as spectrometers
Application fields
Downloads
Datasheets
Datasheet
Application note
Product related
Product related
Images

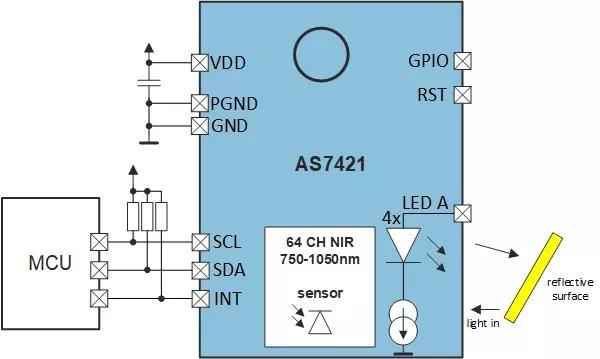

Block diagram
