ams TCS3410 Color and Flicker Detection Sensor

New
×
New

Description

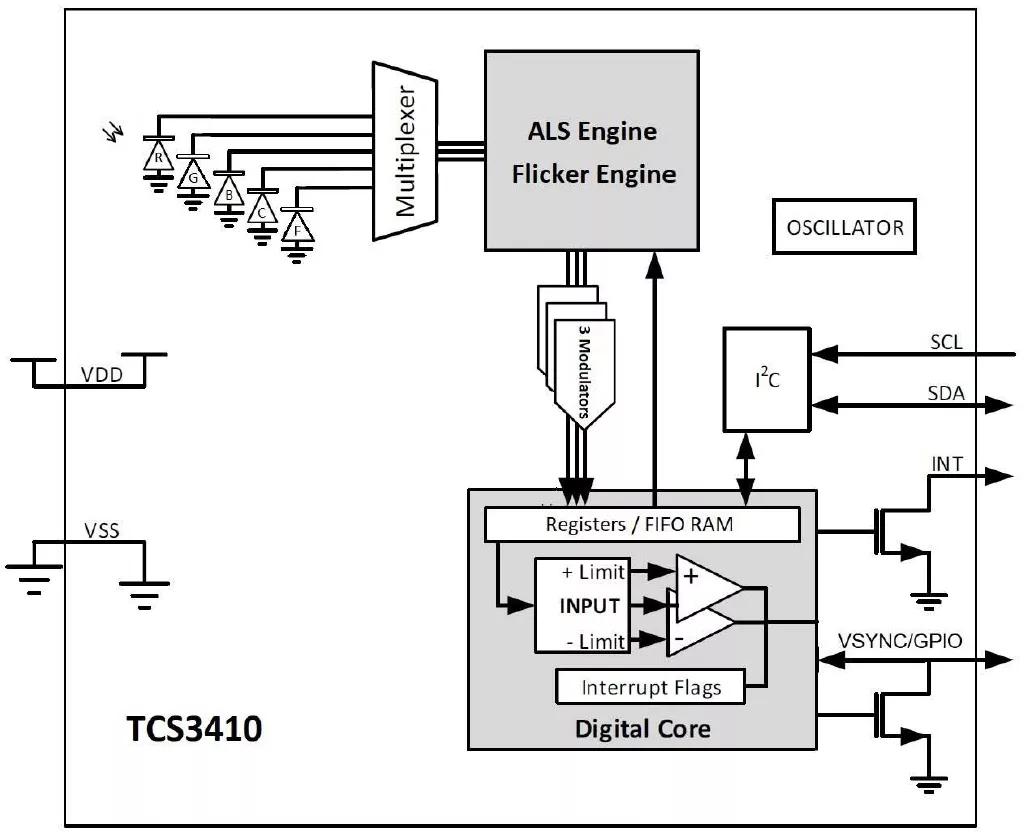

The TCS3410 features ambient light sensing, as well as flicker detection. The device comes in a low-profile and small footprint, L2.0mm x W1.0mm x H0.5mm optical QFN package. The Ambient Light Sensing function provides three concurrent ambient light and flicker sensing channels, which can be arbitrarily connected to the photodiodes via a programmable multiplexer. TCS3410 incorporates a set of RGB photodiodes and a Clear photodiode. The RGB and Clear photodiode area is covered with a UV/IR blocking filter. This architecture accurately measures ambient light and enables the calculation of irradiance of different light sources. Calculation results help to improve display appearance and picture taking. The device also integrates direct detection of ambient light flicker. Flicker detection is executed in parallel with ambient light sensing and has independent gain configuration. The flicker detection engine will sample and buffer data for calculating flicker frequencies externally on a host CPU.

Details

Features

  • 1mlux detectable illuminance
  • UV/IR blocking filter for RGBC channels
  • Flicker-immune ALS sensing with programmable integration time
  • Concurrent flicker and ALS measurement with new simplified readout methodology
  • Up to 7kHz flicker detection (14kHz sampling)
  • Configurable sleep mode
  • Interrupt-driven device
  • Digital and analog saturation flags
  • Decreases traffic on I2C bus

Benefits

  • Invisible ALS sensing under any glass type
  • Unique fast ALS integration mode
  • Integrated ambient light flicker detection on chip
  • Low power consumption and minimum I2C traffic
  • Integrated status checking for all functions
  • On chip data compression

Parameters

Function
color sensing
flicker detection
Supply voltage
1.8 V
min.
1.7 V
max.
2.0 V
Interface
input
I²C slave (1MHz)
output
I²C slave (1MHz)
Operating ambient temperature
min.
-30 °C
max.
85 °C
Integrated diffuser
No
Package
OLGA
Package dimension
l
2.0 mm
w
1.0 mm
h
0.5 mm
Input/Output Voltage
1.8 V
