Details
Features
- Integrated factory calibrated 940nm IR VCSEL
- Display synchronization with highly programmable Proximity Start Delay (PSD)
- Crosstalk and ambient light cancellation
- Optimized sensitivity and noise level
- Wide configuration range
- 1.8V power supply with 1.8V I2C bus
- Configurable sleep mode
- Interrupt driven device
- Proximity saturation flag
- VSYNC status check
Benefits
- Proximity detection behind OLED displays
- Low power consumption
- Integrated status checking for all functions
Parameters
Function
proximity detection
Supply voltage
1.8
V
min.
1.7
V
max.
2.0
V
Interface
input
I²C slave (400kHz)
output
I²C slave (400kHz)
Operating ambient temperature
min.
-30
°C
max.
85
°C
Emitter quantity
1 integrated
Integrated diffuser
No

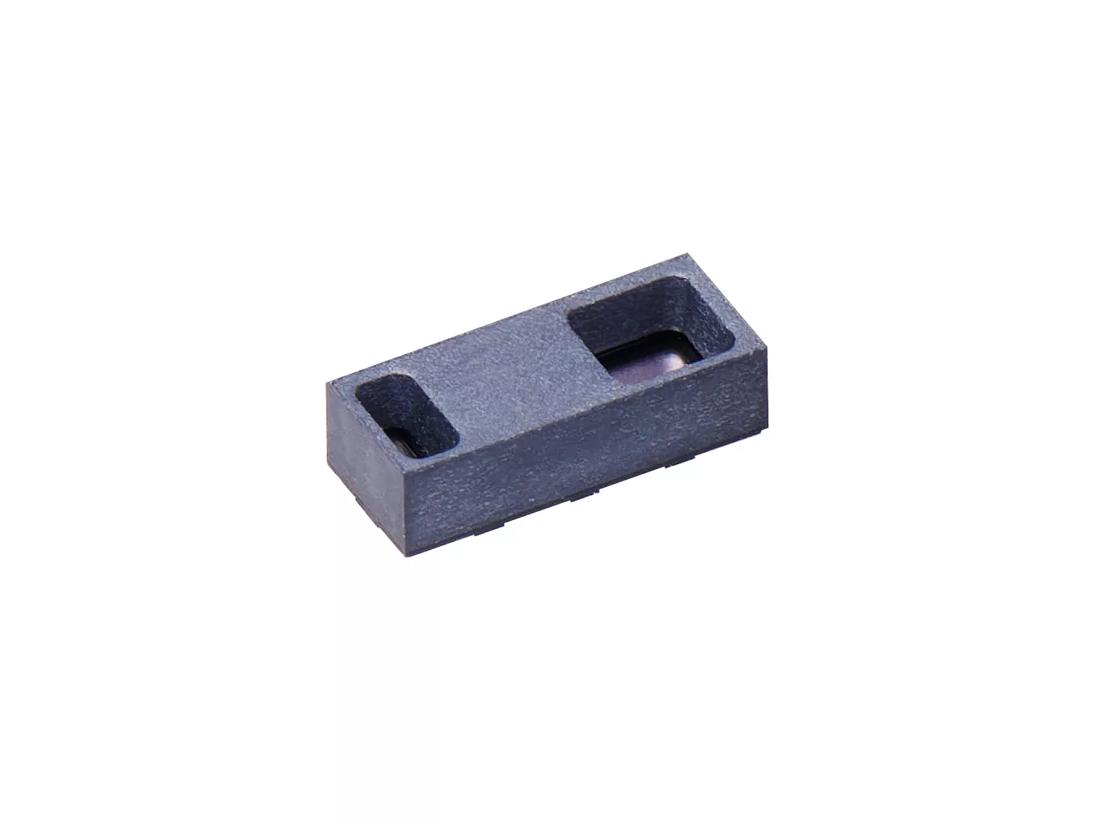

Package
Module
Package dimension
l
4.65
mm
w
1.86
mm
h
1.3
mm
Input/Output Voltage
1.8 V
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| TMD26213 | Q65114A2957 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
|
| TMD26213M | Q65114A2958 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
