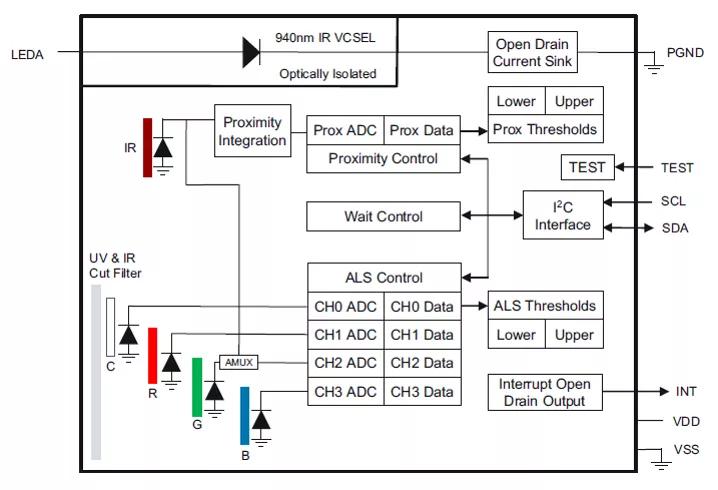

Details
Features
- Small (3.9mm2) narrow glass touch-panel aperture design
- Proximity crosstalk compensation
- Ultra-high ALS and color sensitivity down to mLux levels
- 940nm IR proximity with automatic ambient light subtraction
- 0.18µm process technology with 1.8V I²C
- Narrow footprint and low profile 1.44mm x 2.84mm x 0.65mm package
Benefits
- Enables ultra-thin display bezel applications
- Enables operation behind highly diffusive glass
- Enables accurate and stable measurement under dark glass in low light level environments
- Compensates for unwanted ambient light photodiode current
- Reduces power consumption
- Reduce board space requirements and enable low-profile system design
Parameters
Function
color sensing
proximity detection
Supply voltage
1.8
V
min.
1.7
V
max.
2.0
V
Interface
input
I²C slave (400kHz)
output
I²C slave (400kHz)
Operating ambient temperature
min.
-30
°C
max.
85
°C
Emitter quantity
1 integrated
Integrated diffuser
No
Package
Module
Package dimension
l
2.84
mm
w
1.84
mm
h
0.65
mm
Input/Output Voltage
1.8 V
Application fields
