ams TSL25911 Ambient Light Sensor

×

Description

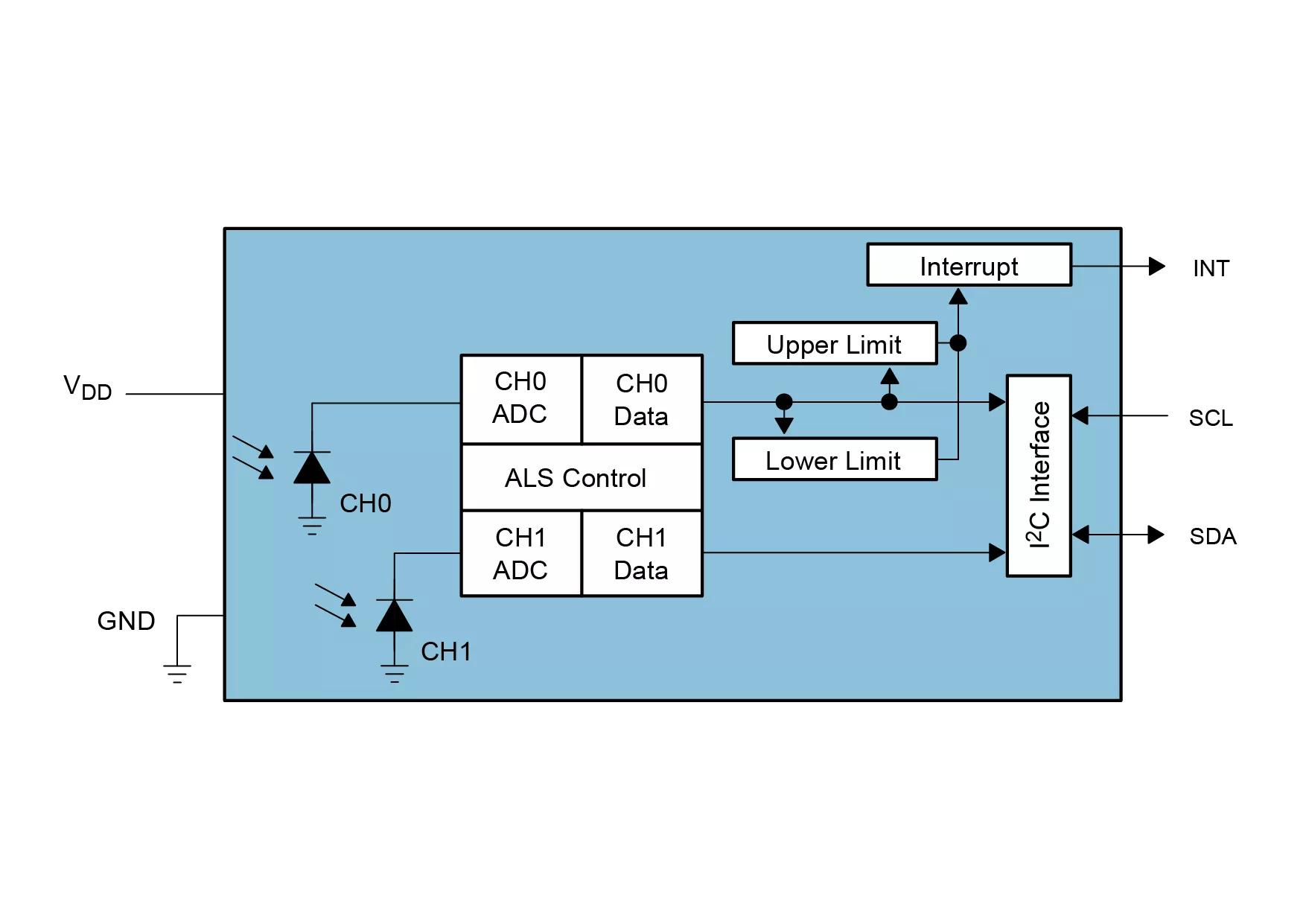

The TSL2591 is a very high sensitivity light-to-digital converter that transforms light intensity into a digital signal output capable of direct I2C interface. The device combines one broadband photodiode (visible plus infrared) and one infrared-responding photodiode on a single CMOS integrated circuit. Two integrating ADCs convert the photodiode currents into a digital output that represents the irradiance measured on each channel. This digital output can be input to a microprocessor where illuminance (ambient light level) in lux is derived using an empirical formula to approximate the human eye response. The TSL2591 supports a traditional level style interrupt that remains asserted until the firmware clears it.

Details

Features

  • Highest sensitivity to 188µLux
  • Patented dual-diode architecture
  • 600M:1 dynamic range
  • Programmable interrupt function
  • UV-rejection package
  • Area efficient 2mm x 2.4mm Dual Flat no-lead (FN) package

Benefits

  • Design flexibility for dark glass and placement
  • Enables operation in IR light environments
  • Enables dark room to sunlight operation
  • Reduces microprocessor interrupt overhead
  • Improves lux accuracy across various light sources

Ordering codes

Product Type Description Order No. Availability
TSL25911FN

Downloads

For related software/further documents visit our Download center

Datasheets

TSL2591 DS000338

Datasheet
