Details
Features
- Integrated factory calibrated 940nm IR VCSEL
- Display synchronization with highly programmable Proximity Start Delay (PSD)
- Crosstalk and ambient light cancellation
- Optimized sensitivity and noise level
- Wide configuration range
- 1.8V power supply with 1.8V I2C bus
- Configurable sleep mode
- Interrupt driven device
- Proximity saturation flag
- VSYNC status check
Benefits
- Proximity detection behind OLED displays
- Low power consumption
- Integrated status checking for all functions
Parameters
Package
OLGA, pin count 8
Programmable
Gain, integration time, interrupt
I²C Bus
[V]
1.8
Supply Voltage
[V]
1.7 - 1.98
Recommended Operating Distances
[mm]
30
Integrated Capabilities and Components
Proximity Emitter Driver, VCSEL, Photodetector
Temperature Range
[°C]
-30 to 85
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability | |
|---|---|---|---|---|
| TMD26213 | Q65114A2957 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
Order now
|
|
| TMD26213M | Q65114A2958 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
Order now
|
×
Downloads
For other documents visit our
Download center
Datasheets
TMD2621 DS001039
Short datasheet
Images

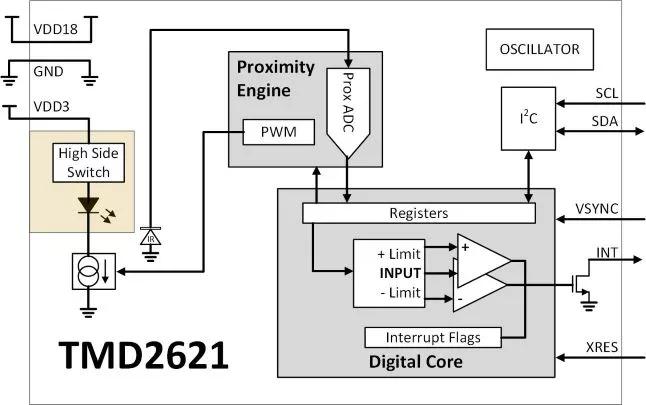

TMD2621 Block Diagram
Block diagram
