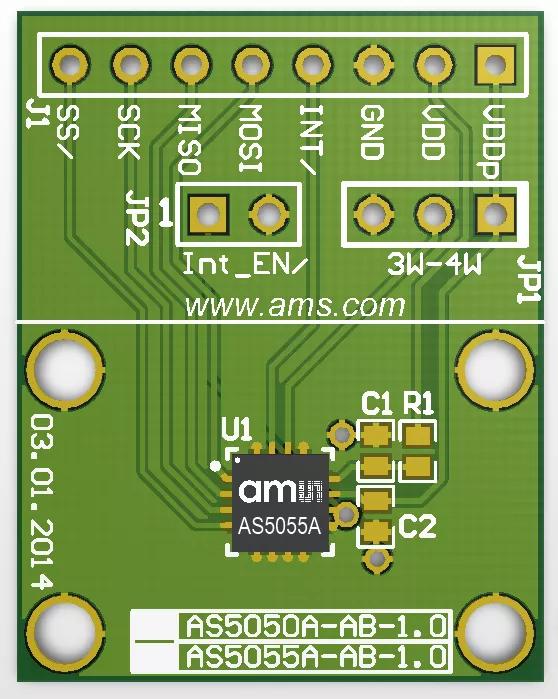

ams AS5055A_QF_EVM_AB Evaluation board
×
Downloads
User guides
User guide
Images
Related boards, kits & accessories
ams AS5XXX_EVM_CB_UNIVERSAL Evaluation board
The Universal Connector Board completes the USB-8451 device (not included) and provide an evaluation tool which is easy to handle. The UCB in addition with the standard adapter board enables to do easy setups of basic application examples. This evaluation tool supports following products: AS5048A, AS5048B, AS505xA, AS5013
The National Instruments USB-8451 is a USB interface that provides standard I²C and Serial Peripheral Interface (SPI) communication for test and validation purposes. Further details on NI USB-8451 and ordering information is available on National Instruments homepage: NI USB-8451
ams AS5XXX-RMH05_EVM_AC Evaluation accessory
This Rotary Magnetic Holder (RMH) is designed to use it on our magnetic rotary position sensor adapter boards for easy evaluation. It allows fast prototyping and quick measurements during development. For more details please download the document.
ams USB-I-P-BOX_EVM_AC Evaluation accessory
The USB Interface & Programmer Box is an universal evaluation tool for magnetic position sensors with I2C or SPI interface. It comes with a 10-way cable to connect to a supported product on an existing board. The I2C or SPI wires are used for the communication (3.3V mode) and additionally the sensor can be powered from the USB I&P Box. By using the USB I&P Box Software, it is possible to read out the sensor data, write a configuration and to permanently program a configuration.
Hardware and Software requirements: PC with Windows 7 or later and a USB-A port
