ams AS5134_EVM_AB Evaluation board

×

Description

The AS5134-AB Adapter Board allows you an easy-to-use evaluation of the principle function of the AS5134 magnetic position sensor in your own system design. This small factor board includes the position sensor with its necessary external components. All relevant signals are available on a 2.54mm header footprint and can be easily wired to your own application.

Downloads

For related software/further documents visit our Download center

Images

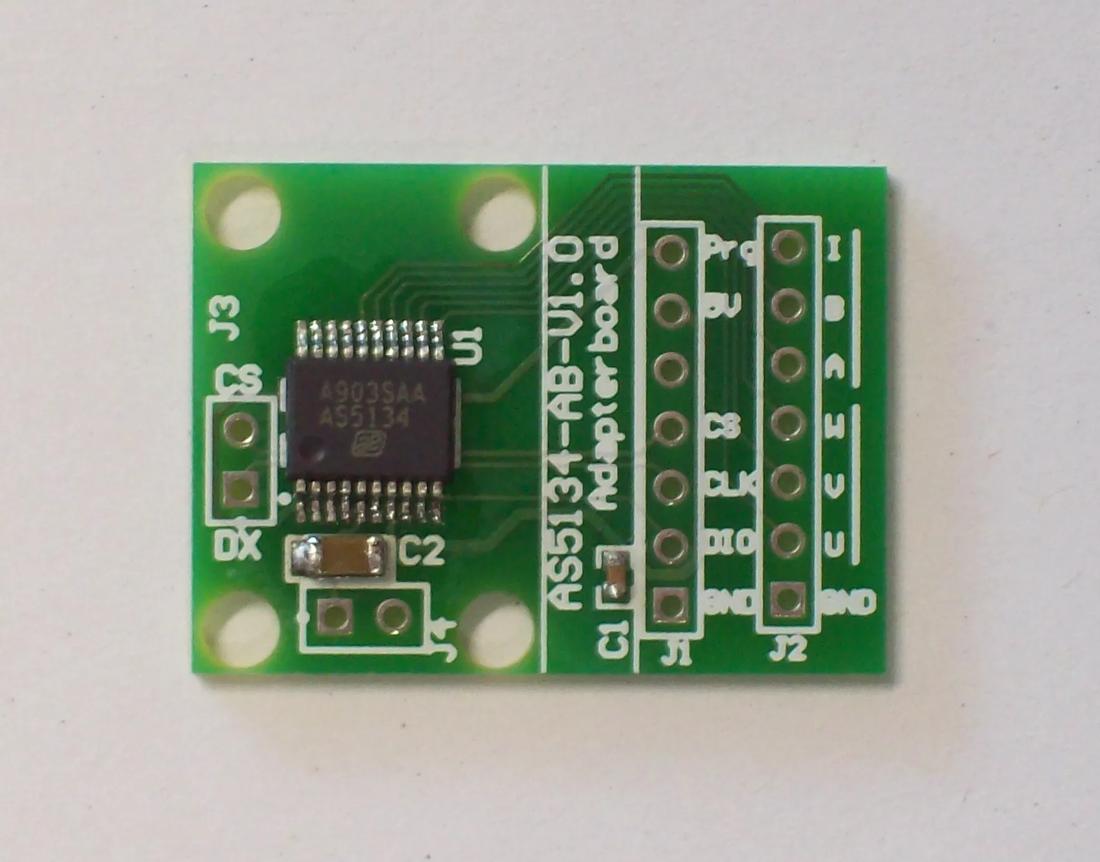

AS5134AdapterBoard
