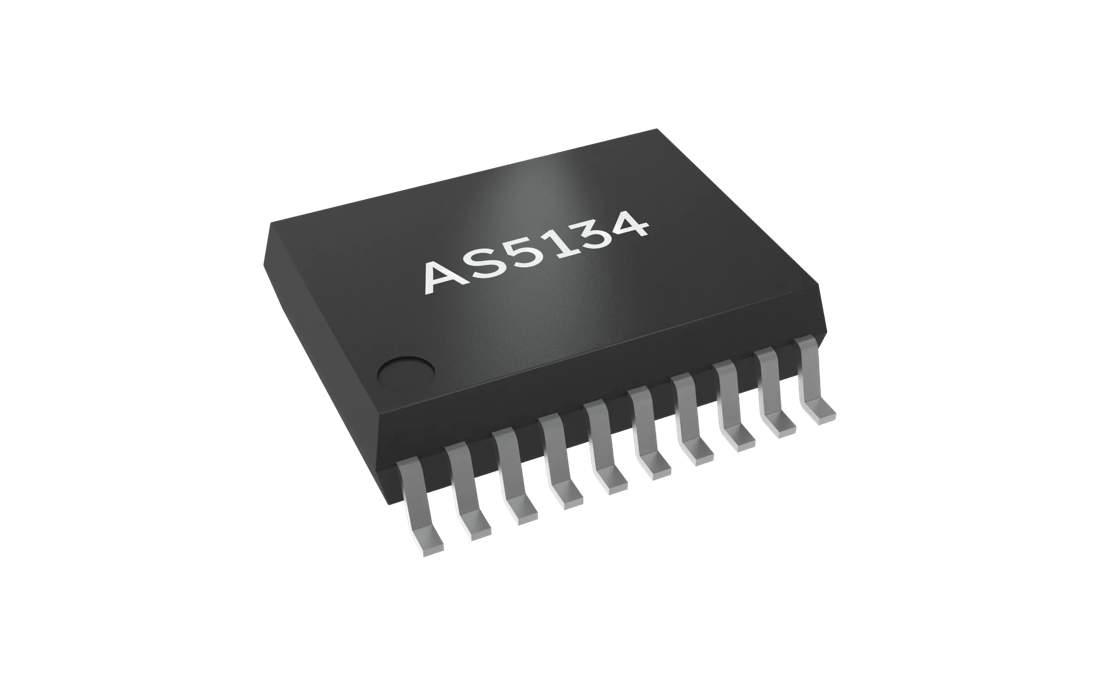

ams AS5134 Rotary Sensor

Description

The AS5134 is a contactless magnetic rotary position sensor for accurate angular measurement over a full turn of 360 degrees and over an extended ambient temperature of -40°C to +150°C. The absolute angle measurement provides instant indication of the magnet’s angular position with a resolution of 8.5 bit = 360 positions per revolution via a serial output over the interface and as a pulse width modulated (PWM) signal.

With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.

Details

Features

  • Selectable pole pairs
  • High speed
  • Multi-turn low power
  • Zero position
  • Sensitivity programming

Benefits

  • High start-up torque, low torque ripple
  • Precise position control
  • Increased durability

Parameters

Die in package
single
Operating ambient temperature
min.
-40 °C
max.
140 °C
Package
SSOP 20
Automotive qualified
AEC-Q100
Function
angle sensing

Ordering codes

Product Type Description Order No. Availability
AS5134-ZSSM 360 Step Programmable High Speed Magnetic Rotary Encoder Tape & Reel 20-pin SSOP Q65114A0651
AS5134-ZSST 360 Step Programmable High Speed Magnetic Rotary Encoder Tape & Reel 20-pin SSOP Q65114A0652
