ams AS516X_SO_EVM_SB Evaluation board

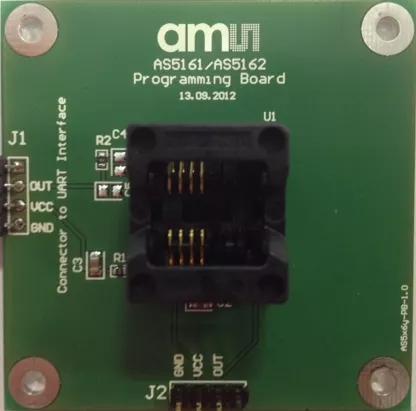

The AS516X Socket Board is used for quick programming the AS5161 and AS5162 magnetic angle position sensor without soldering due to its ZIF socket. This board can be used in combination with the UART interface board and the AS5x6y software, which provides the chip with the adequate OTP programming commands.

Ordering codes

Product Type Description Order No. Availability


User guides

User guide
User guide
