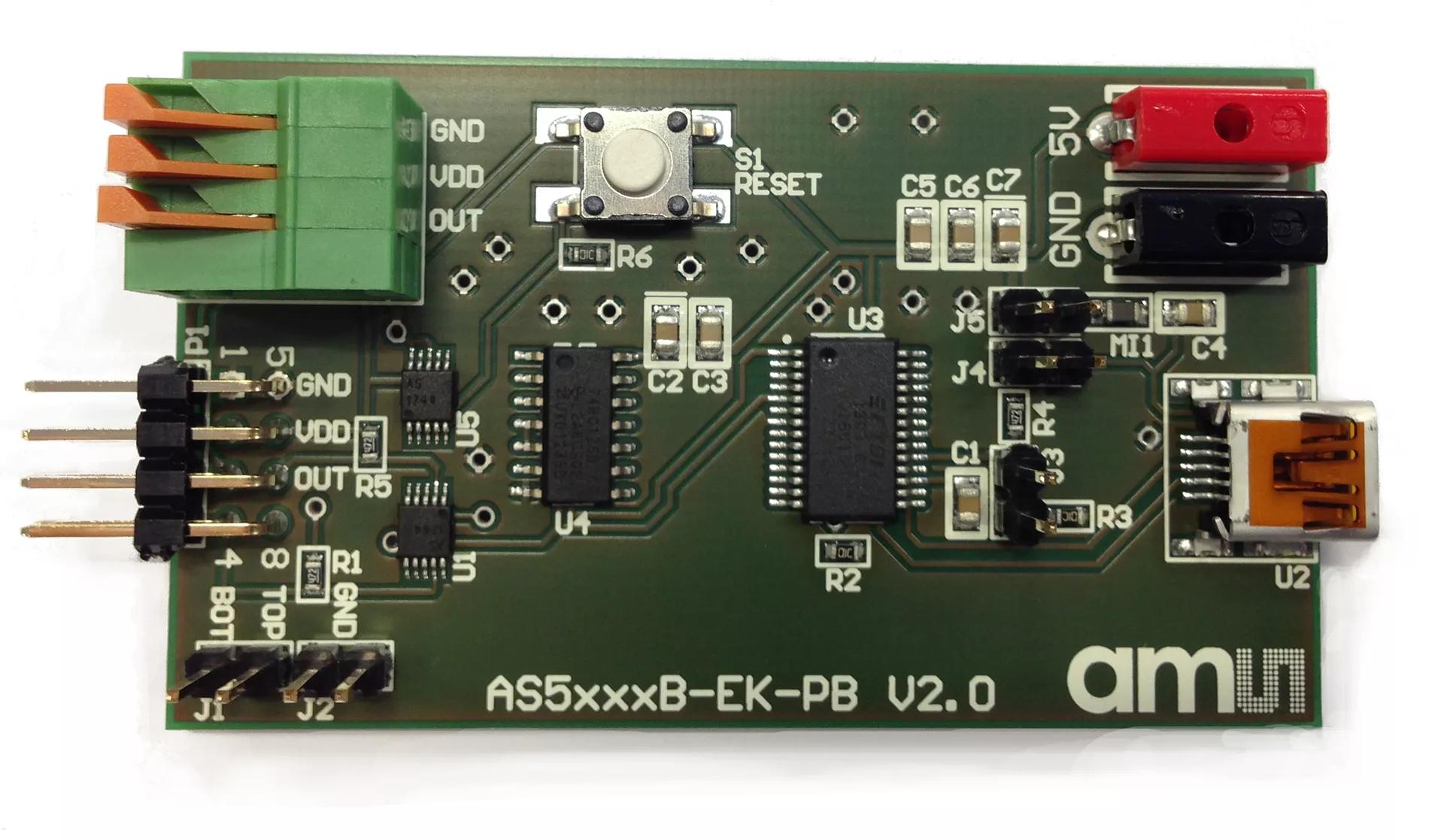

ams AS5XXX_EVM_PB_USB Evaluation board
×
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| AS5XXX-EK-USB-PB |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
Downloads
User guides
User guide
Images
Images
Related boards, kits & accessories
ams AS5X6X_EVM_SN Evaluation kit
The AS5x6x Evaluation Kit allows you an easy-to-use evaluation on all sensors of the AS5x6x family. The evaluation kit includes the UART interface board (AS5xxx-EK-PB), the evaluation software for the AS5x6y sensor family. 4 different adapter boards ( AS5161, AS5162, AS5261 and AS5262). Additional included is a USB2Serial Adapter.
ams AS5270_MF_EVM_AB Evaluation board
"The AS5270 Adapter Board allows you an easy-to-use evaluation of the basic function of the AS5270 magnetic position sensor in your own system design.
This small factor board includes the position sensor with its necessary external components. All relevant signals are available on a 2.54mm header footprint and can be easily wired to your own application."
ams AS5261_MF_EVM_AB Evaluation board
The AS5261-EK-AB Adapter Board allows you an easy-to-use evaluation of the principle function of the AS5261 magnetic angle position sensor in your own system design. This small factor board includes the sensor with its necessary external components. All relevant signals are available on a 2.54mm header footprint and can be easily wired to your own application.
ams AS516X_SO_EVM_SB Evaluation board
The AS516X Socket Board is used for quick programming the AS5161 and AS5162 magnetic angle position sensor without soldering due to its ZIF socket. This board can be used in combination with the UART interface board and the AS5x6y software, which provides the chip with the adequate OTP programming commands.
ams AS5262_MF_EVM_AB Evaluation board
The AS5262-EK-AB Adapter Board allows you an easy-to-use evaluation of the principle function of the AS5262 magnetic angle position sensor in your own system design. This small factor board includes the sensor with its necessary external components. All relevant signals are available on a 2.54mm header footprint and can be easily wired to your own application.
ams AS5270_MF_EVM_SB Evaluation board
The AS5270-SO_EK_SB Socket Board is used for quick programming the AS5270A and AS5270B magnetic rotary position sensors without soldering due to its ZIF socket.
This board can be used in combination with the AS5xxx-EK-USB-PB UART Programming Board and the provided LabVIEW evaluation software.
