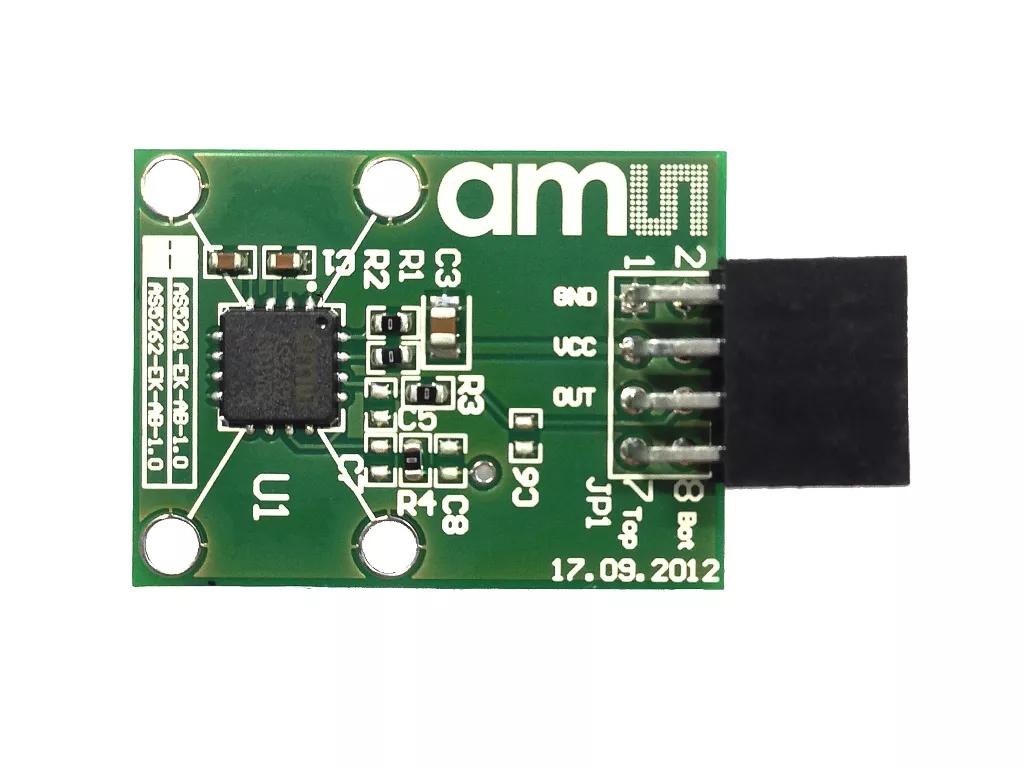

ams AS5261_MF_EVM_AB Evaluation board
×
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| AS5261-MF_EK_AB |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
Downloads
Images
Related boards, kits & accessories
ams SD4Y-PROGRAMMER_EVM_AC Evaluation accessory
The SD4Y Programmer is an in-system programming tool which is applicable for production environment. The SD4Y programmer supports: digital writing and reading; OTP programming and analog read back for the OTP verification. Additional the SD4Y programmer can use the AMS programming boards.
The GUI and the Labview source code are available. Additional code samples for C; C++ and C# are available.
Download latest software (UProg_SW_package_2v0.zip,
264MB)
ams AS5XXX-RMH05_EVM_AC Evaluation accessory
This Rotary Magnetic Holder (RMH) is designed to use it on our magnetic rotary position sensor adapter boards for easy evaluation. It allows fast prototyping and quick measurements during development. For more details please download the document.
ams AS5XXX_EVM_PB_USB Evaluation board
The AS5xxx Programming Board is used for quick programming the ams magnetic angle position sensor with 1 wire UART interface. This board can be used in combination with the socket boards and adapter boards of the AS5161/62 and AS5261/62, which provides the chip with the adequate OTP programming data.
