ams AS5304_EVM_AB Evaluation board

ams AS5304_EVM_AB Evaluation board
×

Description

The AS5304-DK-AB Adapter Board allows you an easy-to-use evaluation of the principle function of the AS5304 linear incremental magnetic position sensor in your own system design. This small factor board includes the position sensor with its necessary external components. All relevant signals are available on a 2.54mm header footprint and can be easily wired to your own application.
Contact us Support

Downloads

Images

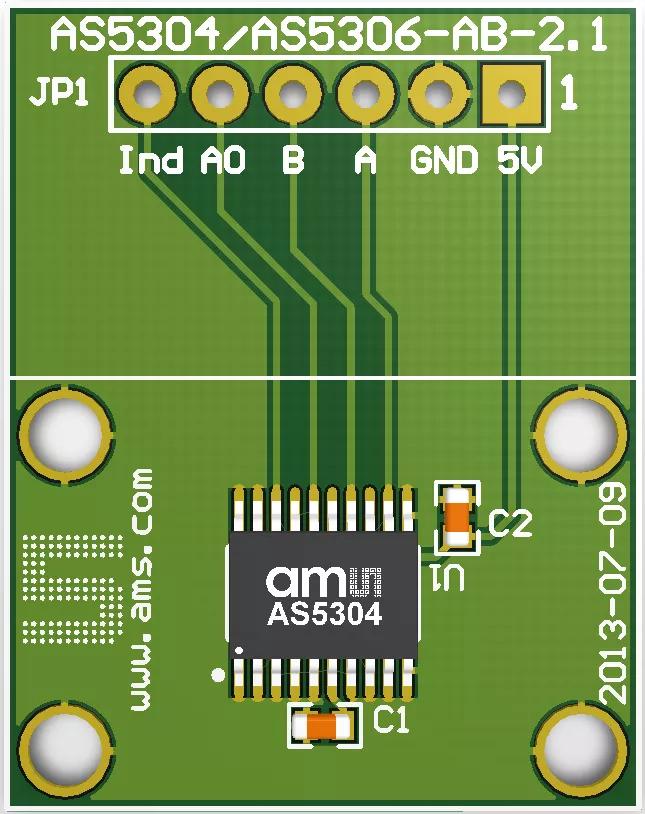

AS5304 Adapter Board
