ams AS5306_EVM_AB Evaluation board

ams AS5306_EVM_AB Evaluation board
×

Description

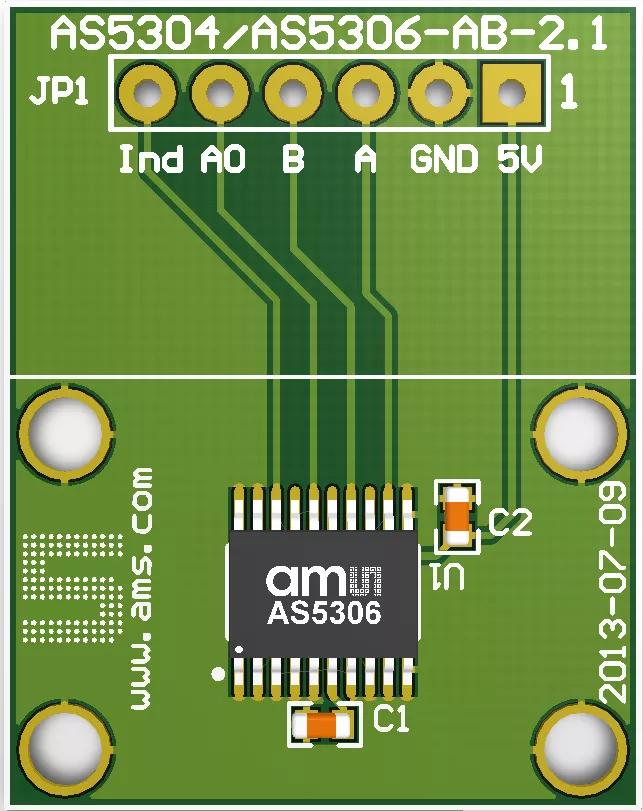

The AS5306-DK-AB Adapter Board allows you an easy-to-use evaluation of the principle function of the AS5306 linear incremental magnetic position sensor in your own system design. This small factor board includes the magnetic position sensor with its necessary external components. All relevant signals are available on a 2.54mm header footprint and can be easily wired to your own application.
User guide
Contact us Support

Downloads

For other documents visit our Download center

User guides

AS5304_06_UG000216_2-00

User guide
EN
DE
CN
JP
