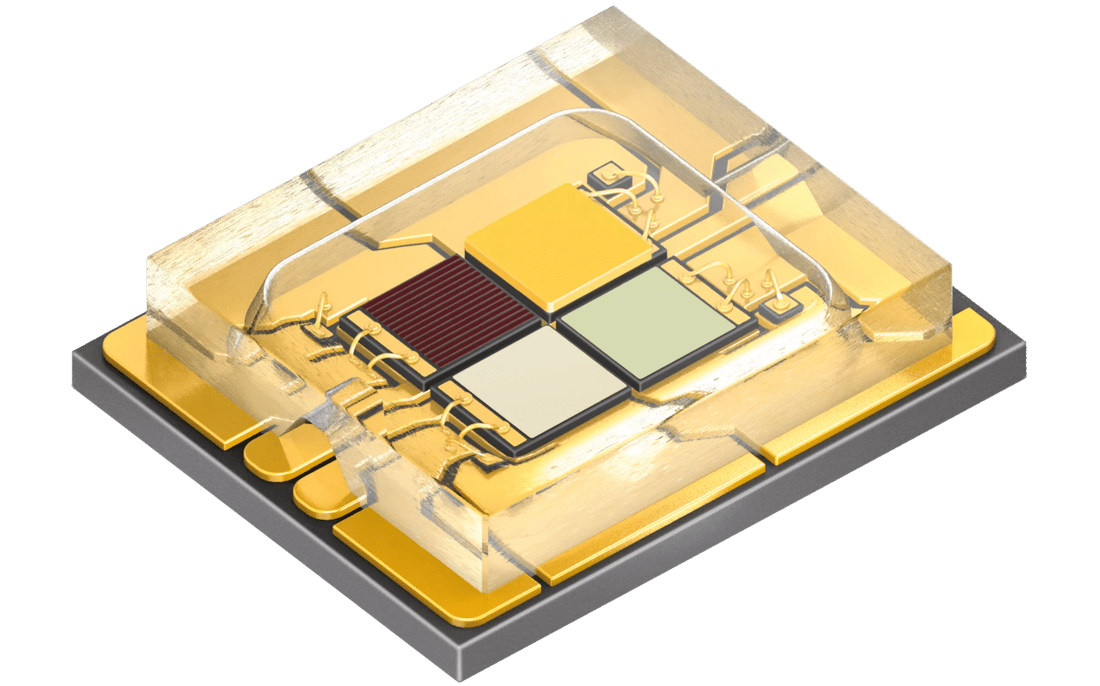

OSRAM OSRAM OSTAR® Stage, LE RTDCY S2WN

×

Description

Compact lightsource in SMT technology, glass window on top, RoHS compliant

Details

Parameters

Color of emission
Red (612-630 nm)
True Green (513-545 nm)
Deep Blue (439-461 nm)
Yellow (580-595 nm)
Electrical power
2.4 W
2.9 W
3.0 W
3.0 W
High
High
High
High
Brightness
ΦV
115 lm
IV
41.4 cd
ΦE
446 mW
IE
160 mW/sr
Beam angle
120 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
5.75 mm
w
4.68 mm
h
1.1 mm

Application fields

Ordering codes

Product Type Description Order No. Availability
LERTDCYS2WN-KBLA-1+MANA-P+AXAZ-P+LBMB-YS ΦV = 90 ... 140 lm (IF□=□1000□mA)
ΦV = 180 ... 355 lm (IF□=□1000□mA)
ΦE = 1120 ... 1800 mW (IF□=□1000□mA)
ΦV = 140 ... 280 lm (IF□=□1000□mA)
Q65112A5476
