OSRAM OSRAM OSTAR™ Stage, LE RTDUW S2WM

×

Description

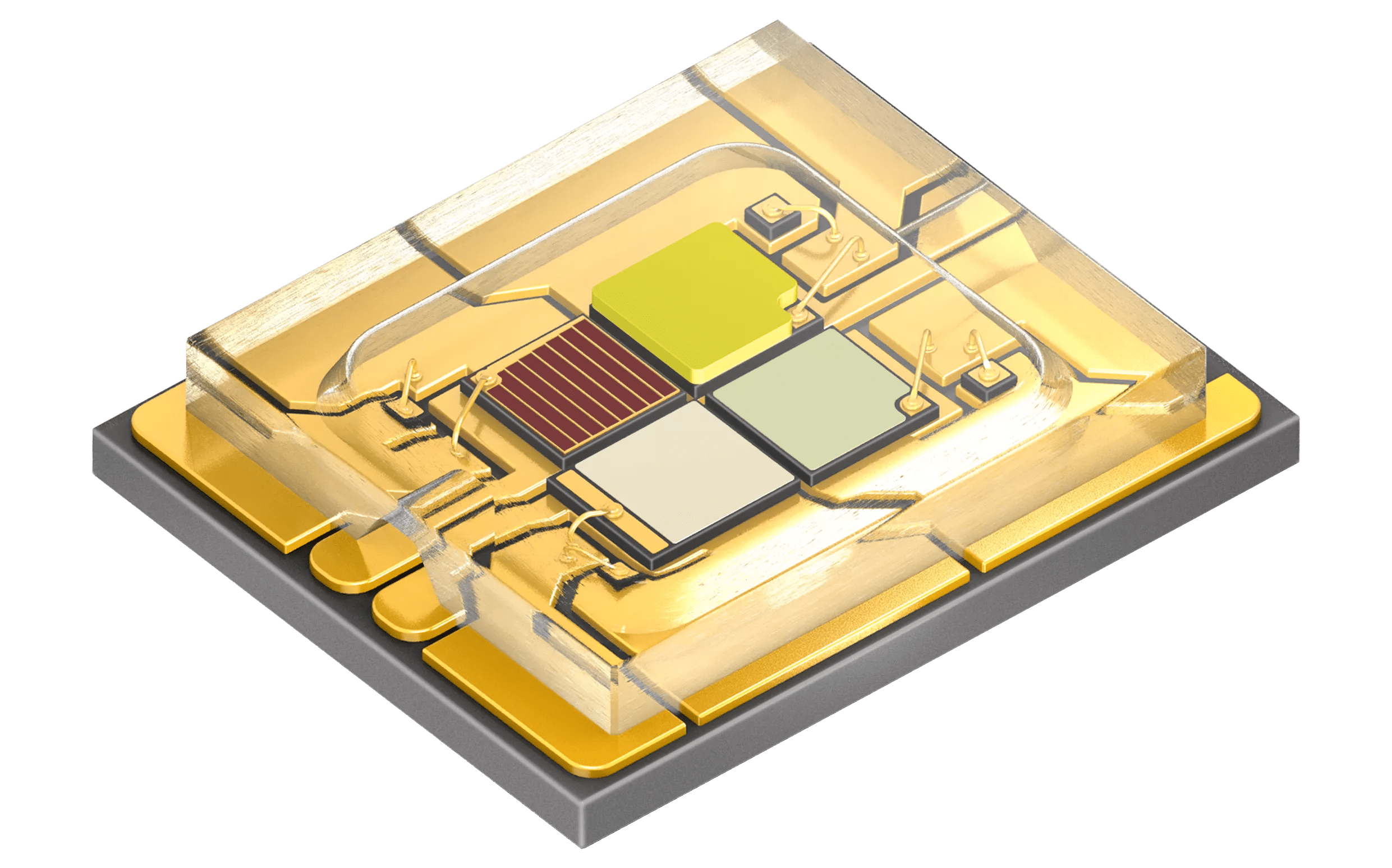

Compact lightsource in SMT technology, glass window on top, RoHS compliant
Datasheet
LE RTDUW S2WM
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Red (612-630 nm)
True Green (513-545 nm)
Deep Blue (439-461 nm)
White
Electrical power
1.5 W
1.9 W
2.1 W
2.1 W
High
High
High
High
Brightness
ΦV
98 lm
IV
35.2 cd
ΦE
380 mW
IE
137 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
5.75 mm
w
4.68 mm
h
1.1 mm

Application fields

Lighting Entertainment

Ordering information

Product Type Description Ordering code Availability
LERTDUWS2WM-JBKB-1+LBMA-C+4V-T+MB-P ● ΦV = 71 ... 112 lm (IF = 700 mA)
● ΦV = 140 ... 224 lm (IF = 700 mA)
● ΦE = 1000 ... 1250 mW (IF = 700 mA)
● ΦV = 224 ... 355 lm (IF = 700 mA) 		Q65113A2306 Full production
LERTDUWS2WM-JBLA-1+LBMA-P+4V5A-P+MBNA-CQ ● ΦV = 71 ... 112 lm (IF = 700 mA)
● ΦV = 140 ... 224 lm (IF = 700 mA)
● ΦE = 1000 ... 1250 mW (IF = 700 mA)
● ΦV = 224 ... 355 lm (IF = 700 mA) 		Q65112A2120 Full production
LERTDUWS2WM-KAKB-1+LBMA-P+4V5A-P+MBNA-CQ ● ΦV = 71 ... 112 lm (IF = 700 mA)
● ΦV = 140 ... 224 lm (IF = 700 mA)
● ΦE = 1000 ... 1250 mW (IF = 700 mA)
● ΦV = 224 ... 355 lm (IF = 700 mA) 		Q65113A2305 Full production
