OSRAM OSRAM OSTAR® Stage, LE RTDUW S2WN

×

Description

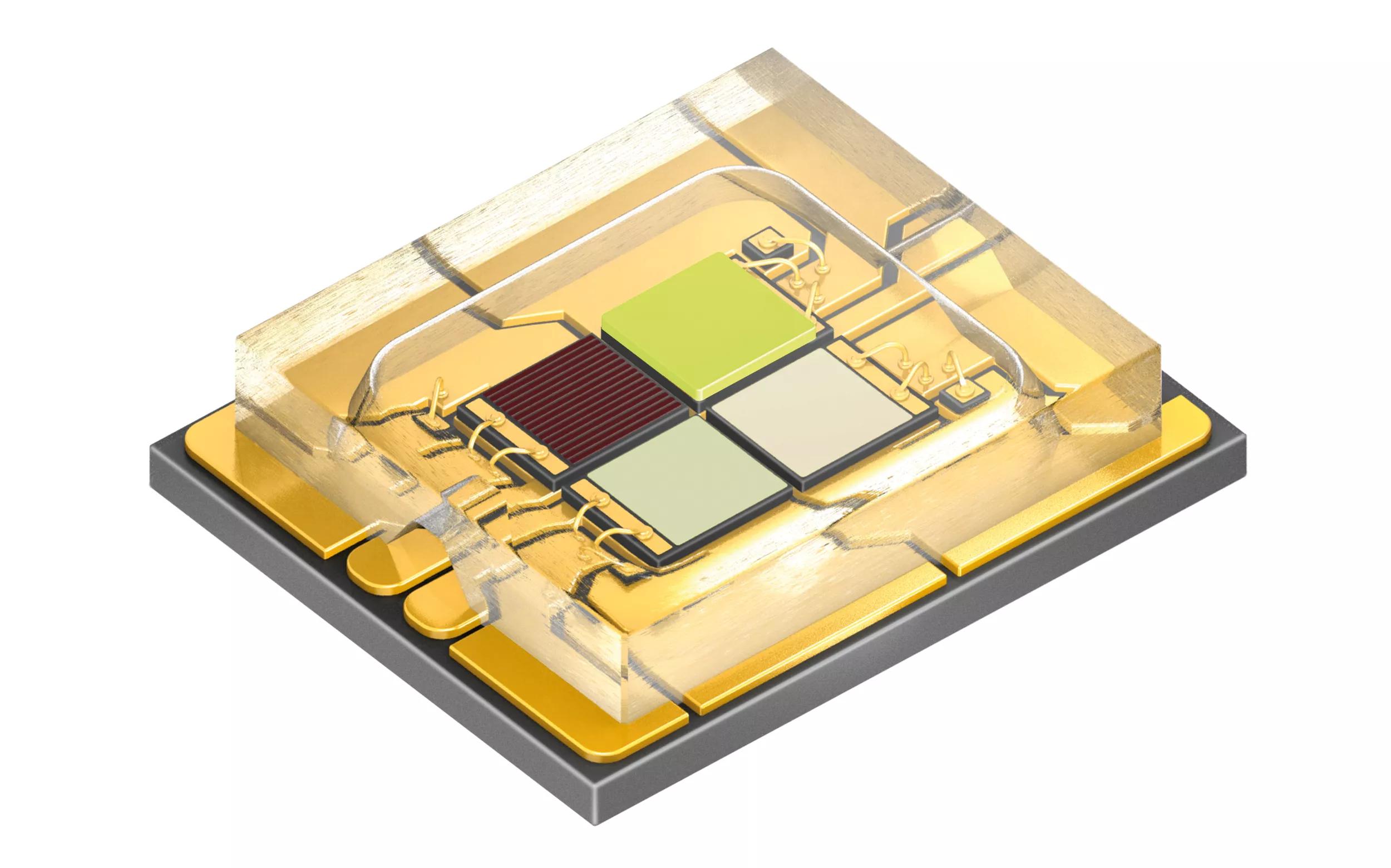

Compact lightsource in SMT technology, glass window on top, RoHS compliant

Details

Parameters

Color of emission
Red (612-630 nm)
True Green (513-545 nm)
Deep Blue (439-461 nm)
White
Electrical power
2.4 W
2.9 W
3.0 W
3.0 W
High
High
High
High
Brightness
ΦV
37.3 lm
IV
13.4 cd
ΦE
1460 mW
IE
525 mW/sr
Beam angle
120 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
5.75 mm
w
4.68 mm
h
1.1 mm

Application fields

Ordering codes

Product Type Description Order No. Availability
LERTDUWS2WN-KBLA-1+MBNA-C+AXAY-T+MBNA-P ΦV = 90 ... 140 lm (IF□=□1000□mA)
ΦV = 180 ... 355 lm (IF□=□1000□mA)
ΦE = 1120 ... 1800 mW (IF□=□1000□mA)
ΦV = 224 ... 450 lm (IF□=□1000□mA)
Q65113A5135
LERTDUWS2WN-KBLA-1+MANA-F+AXAZ-P+MBNB-CQ ΦV = 90 ... 140 lm (IF□=□1000□mA)
ΦV = 180 ... 355 lm (IF□=□1000□mA)
ΦE = 1120 ... 1800 mW (IF□=□1000□mA)
ΦV = 224 ... 450 lm (IF□=□1000□mA)
Q65113A5080
LERTDUWS2WN-KBLA-1+MBNA-F+AYAZ-P+NANB-CQ ΦV = 90 ... 140 lm (IF□=□1000□mA)
ΦV = 180 ... 355 lm (IF□=□1000□mA)
ΦE = 1120 ... 1800 mW (IF□=□1000□mA)
ΦV = 224 ... 450 lm (IF□=□1000□mA)
Q65113A5081

Downloads

Datasheets

Application note

Resources

Tools

LightGuide

Calculate the effectiveness of an LED based on a selected light guide by showing the amount of incoupled, reflected and missed light rays.
