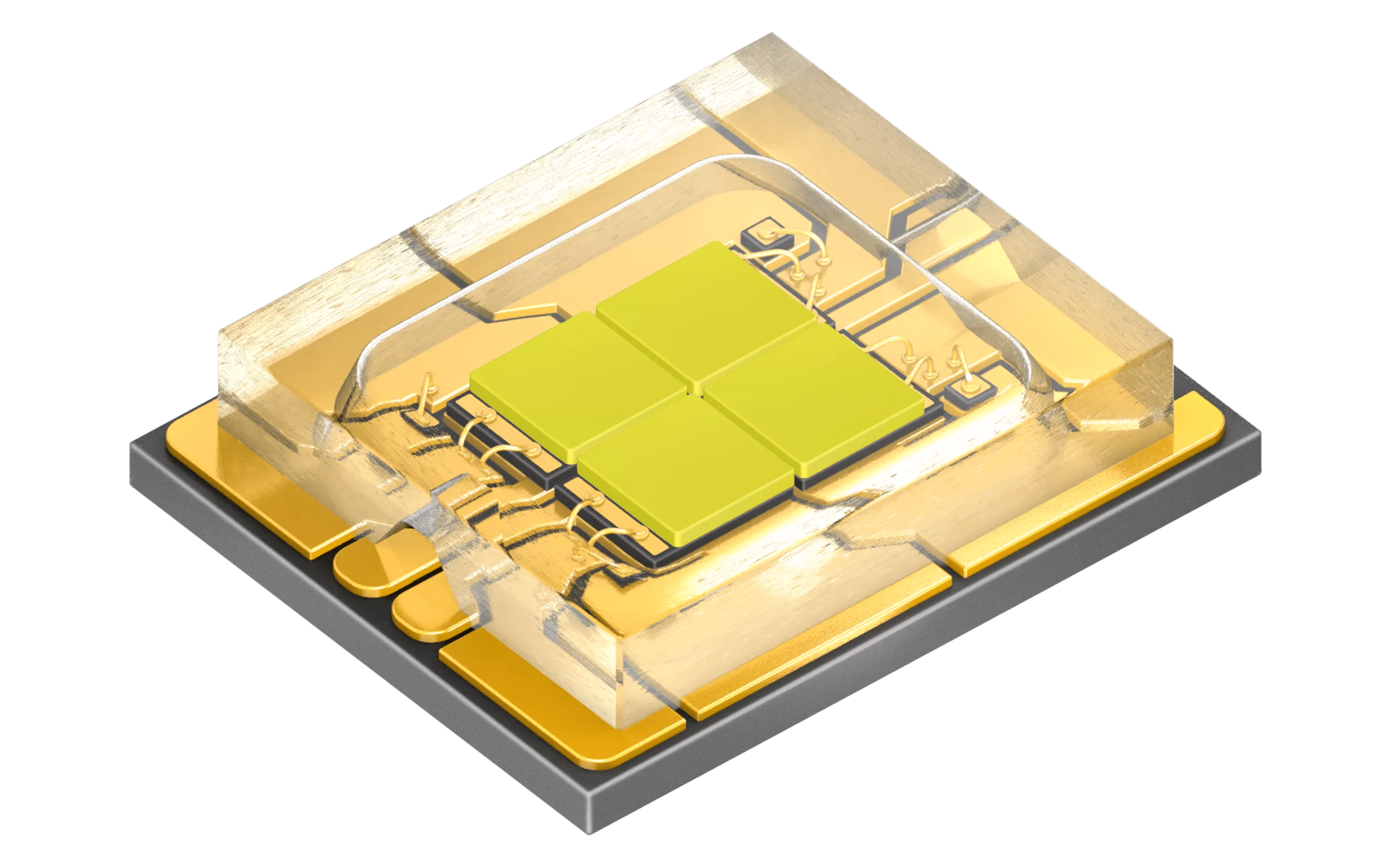

OSRAM OSRAM OSTAR® Stage, LE UW S2WN

×

Description

Outstanding brightness and luminance due to surface emission and low Rth

Details

Parameters

Color of emission
White
Electrical power
3.0 W
High
Brightness
ΦV
1680 lm
Beam angle
130 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
5.75 mm
w
4.68 mm
h
1.25 mm

Application fields

Ordering codes

Product Type Description Order No. Availability
LE UW S2WN-RASA-CQ ΦV = 1120 ... 2240 lm (IF = 1000 mA) Q65112A7619

Downloads

Datasheets

Datasheet

Application note

Tools

LightGuide

Calculate the effectiveness of an LED based on a selected light guide by showing the amount of incoupled, reflected and missed light rays.
