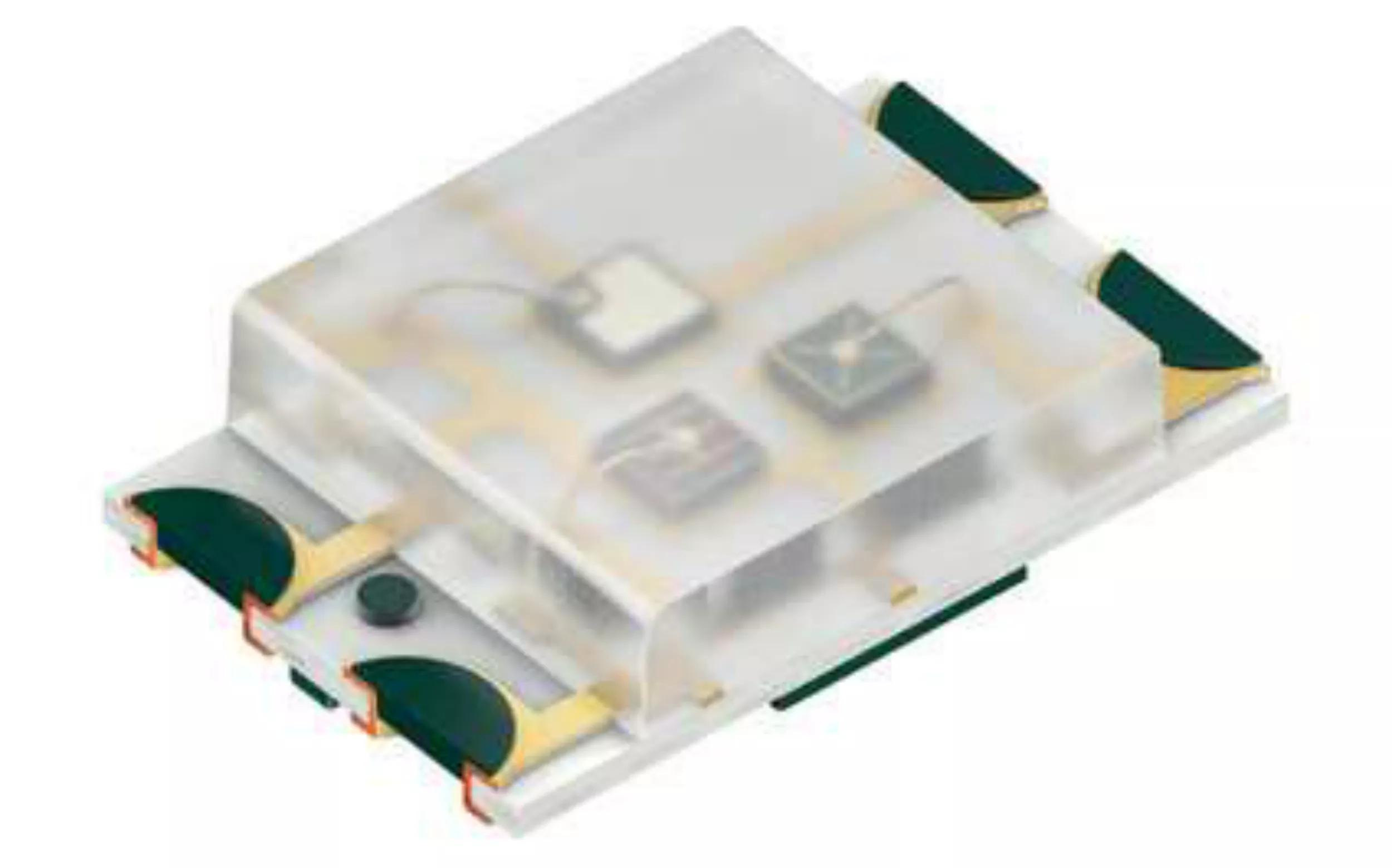

OSRAM Multi Chip LED, SFH 7013

OSRAM Multi Chip LED, SFH 7013
Discontinued
OSRAM Multi Chip LED, SFH 7013
×
Discontinued

Replacement Products

OSRAM Multi Chip LED, SFH 7016

OSRAM Multi Chip LED, SFH 7016

Green (530 nm), Red (655 nm) and Infrared (940 nm) Emitter
1 Products in total

Downloads

Datasheet

SFH 7013

Datasheet / 834.8 KB

Application note

Advanced LED rework procedure for video wall and signage application

Product Related / 1.6 MB

Eye safety of IREDs used in lamp applications

Product Related / 1.5 MB

High-speed switching of IR-LEDs — Background and data sheet definition

Product Related / 1.7 MB

Light guides

Product Related / 1.0 MB

适用于显示屏和信息牌的LED返修流程

Product Related / 1.9 MB

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General Information / 1.7 MB

Dry pack information

General Information / 1.2 MB

Importing rayfiles and ray-measurement files of LEDs

General Information / 903.2 KB

LED 可靠性与使用寿命

General Information / 1.7 MB

Lebensdauer und Zuverlässigkeit von LEDs

General Information / 1.9 MB

Reliability and lifetime of LEDs

General Information / 1.9 MB

Handling of silicon resin LEDs

Processing and Handling / 496.2 KB

Manual lead-free soldering of LEDs

Processing and Handling / 1.9 MB

Measuring of the temperature profile during the reflow solder process

Processing and Handling / 1.2 MB

PCB technologies for LED applications

Processing and Handling / 3.1 MB

Processing of SMD LEDs

Processing and Handling / 4.5 MB

Recommended pick-and-place tools for LEDs

Processing and Handling / 6.0 MB

Determination of resistances for brightness compensation

Driving of LEDs / 873.5 KB

Optical simulation

Optical Simulation

Optical simulation

CAD files

CAD Data

CAD files

Ordering codes

Product Type Description Order No. Availability
SFH 7013 Ie = ≥ 1.12 mW/sr (IF = 20 mA)
Ie = ≥ 2.20 mW/sr (IF = 20 mA)
Ie = ≥ 1.65 mW/sr (IF = 20 mA)
Q65112A1316

Tools

LightGuide

Calculate the effectiveness of an LED based on a selected light guide by showing the amount of incoupled, reflected and missed light rays.
