OSRAM OSLON® Black Flat S, KW2 HIL532.TK

Name: OSRAM OSLON® Black Flat S, KW2 HIL532.TK
Brand: ams-OSRAM AG

Product features

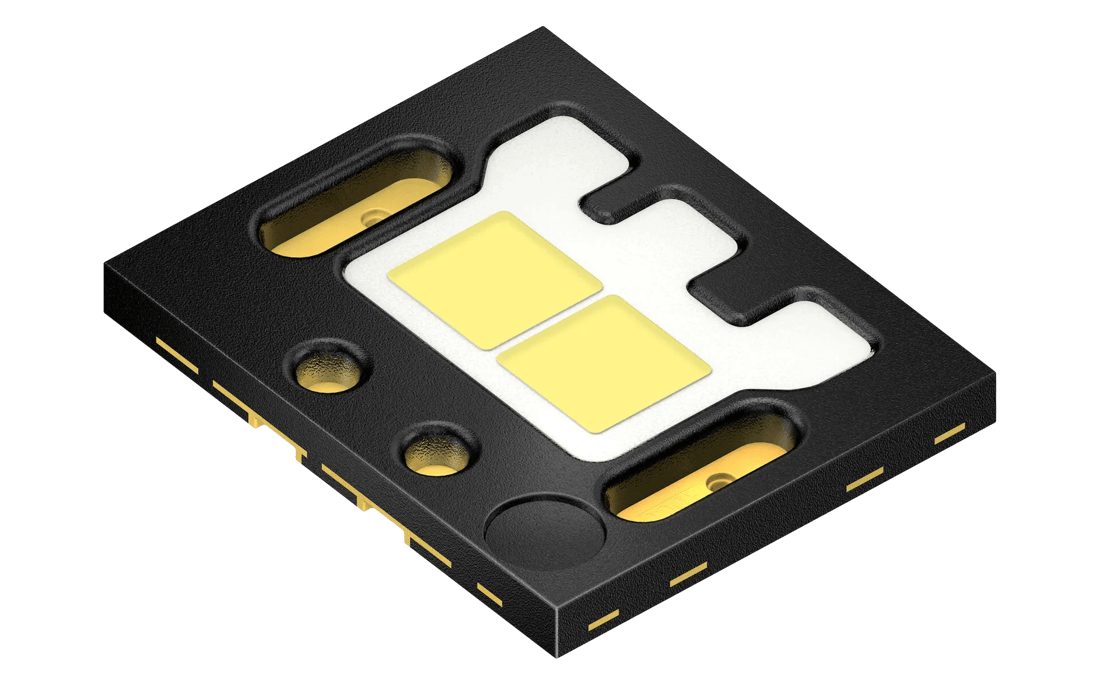

The OSLON Black Flat S product family meets both, excellent brightness in combination with outstanding luminance. The SMT device is very stable, durable and can be used with standard processes. A new solder pad layout allows for high reliability and supperior thermal management. The compact chips not only deliver high light output, they are also individually addressable with an ensured chip-to-chip contrast.

Datasheet Choose product

Application note Optical simulation CAD files Electrical simulation Contact us Support

Downloads

Datasheet

KW2 HIL532.TK

Datasheet / 2.1 MB

EN CN

Application note

Chemical compatibility of LEDs

General information / 2.0 MB

Comparison of simple LED circuits for low power LEDs

Electrical design / 1.2 MB

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General information / 1.7 MB

Details on photobiological safety of LED light sources

General information / 1.4 MB

Dimming LEDs with respect to grouping current

Electrical design / 1,007.0 KB

Dry pack information

Handling recommendations / 1.2 MB

ESD protection while handling LEDs

Handling recommendations / 1.8 MB

Fundamentals of LED handling

Handling recommendations / 1.3 MB

Further details on lead free reflow soldering of LEDs

Soldering and processing / 1.4 MB

Handling of silicon resin LEDs

Handling recommendations / 496.2 KB

Importing rayfiles and ray-measurement files of LEDs

General information / 903.2 KB

LED diagnosis in automotive applications

Electrical design / 2.1 MB

LED 可靠性与使用寿命

General information / 1.7 MB

LED 无铅回流焊的详细介绍

Soldering and processing / 1.7 MB

Lebensdauer und Zuverlässigkeit von LEDs

General information / 1.9 MB

Measurement, calibration and measurement uncertainty of LEDs

General information / 2.5 MB

Measuring of the temperature profile during the reflow solder process

Soldering and processing / 1.2 MB

OSLON® Black Flat S - LED low and high beam without the need for a heat sink

Product related / 2.1 MB

PCB technologies for LED applications

Thermal management / 3.1 MB

Package related thermal resistance of LEDs

Thermal management / 2.1 MB

Preventing LED failures caused by corrosive materials

General information / 1.2 MB

Processing of SMD LEDs

Soldering and processing / 4.5 MB

Recommended pick-and-place tools for LEDs

Soldering and processing / 6.0 MB

Reliability and lifetime of LEDs

General information / 1.9 MB

Temperature measurement with thermocouples

Thermal management / 3.9 MB

The basic principles of Electrical Overstress (EOS)

Electrical design / 1.6 MB

The thermal measurement point of LEDs

Thermal management / 2.7 MB

Thermal management of LED light sources

Thermal management / 1.9 MB

Weitere Hinweise zum bleifrei Reflow-Löten von LEDs

Soldering and processing / 1.4 MB

欧司朗光电半导体有限公司 LED 的测量、

General information / 2.4 MB

Optical simulation

Optical Simulation

Optical simulation

Download

CAD files

CAD Data

CAD files

Download

Electrical simulation

Electrical Simulation

Electrical simulation

Download

Ordering codes

Product Type	Description	Order No.	Availability
KW2 HIL532.TK-D2D9-4L07M0-SC6B	Φ_V = 700 ... 980 lm (I_F = 1000 mA)	Q65112A8069	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Mouser Buy now RS Buy now Farnell Buy now
