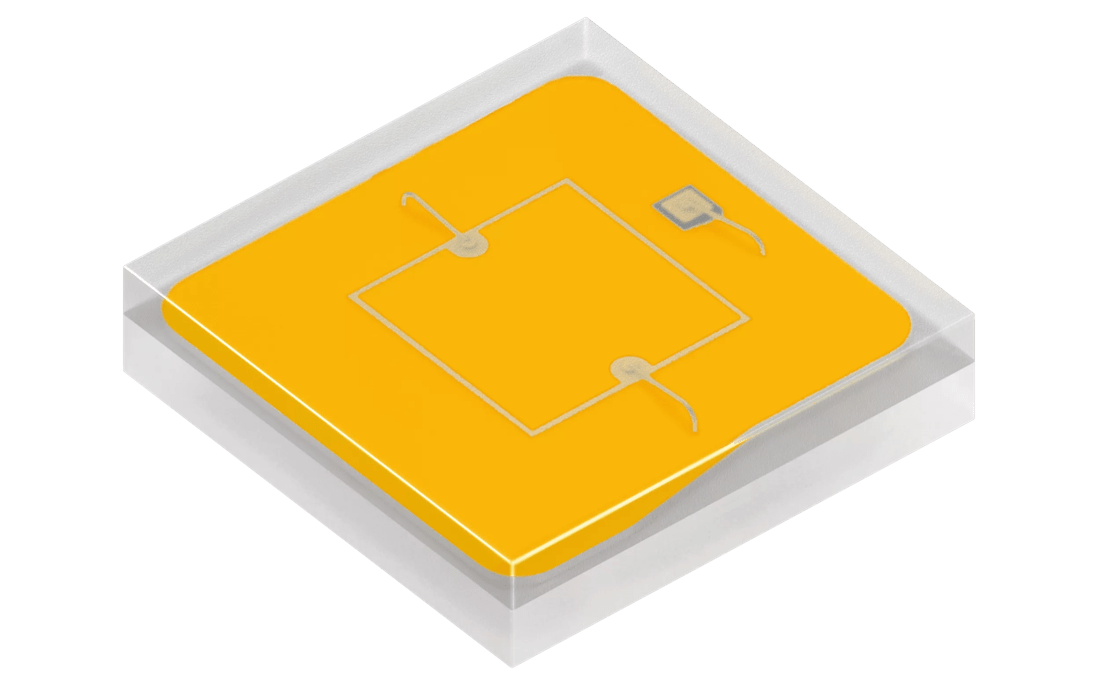

OSRAM OSLON™ Square Flat, KW CSLPM2.CC

Discontinued
×
Discontinued

Description

This most compact 3 x 3 mm high-power LED with electrically isolated thermal pad allows superior heat dissipation designs. The flat package enhances color quality due to a reduced color over angle variation. Its extremely low thermal resistance helps to keep the efficiency remarkably high even when driven at high currents.
Datasheet
KW CSLPM2.CC
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
90
Electrical power
2.0 W
High
Brightness
ΦV
220 lm
IV
72.1 cd
ΦE
758 mW
IE
249 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
3.0 mm
w
3.0 mm
h
0.78 mm

Ordering information

Product Type Description Ordering code Availability
KW CSLPM2.CC-8L8M-4L8N ΦV = 159 ... 280 lm, 4000 K (IF = 700 mA) Q65112A2445 Discontinued
KW CSLPM2.CC-8L8M-4O9Q ΦV = 159 ... 280 lm, 3500 K (IF = 700 mA) Q65112A2578 Discontinued
KW CSLPM2.CC-8L8M-4R9T ΦV = 159 ... 280 lm, 3000 K (IF = 700 mA) Q65112A2579 Discontinued
