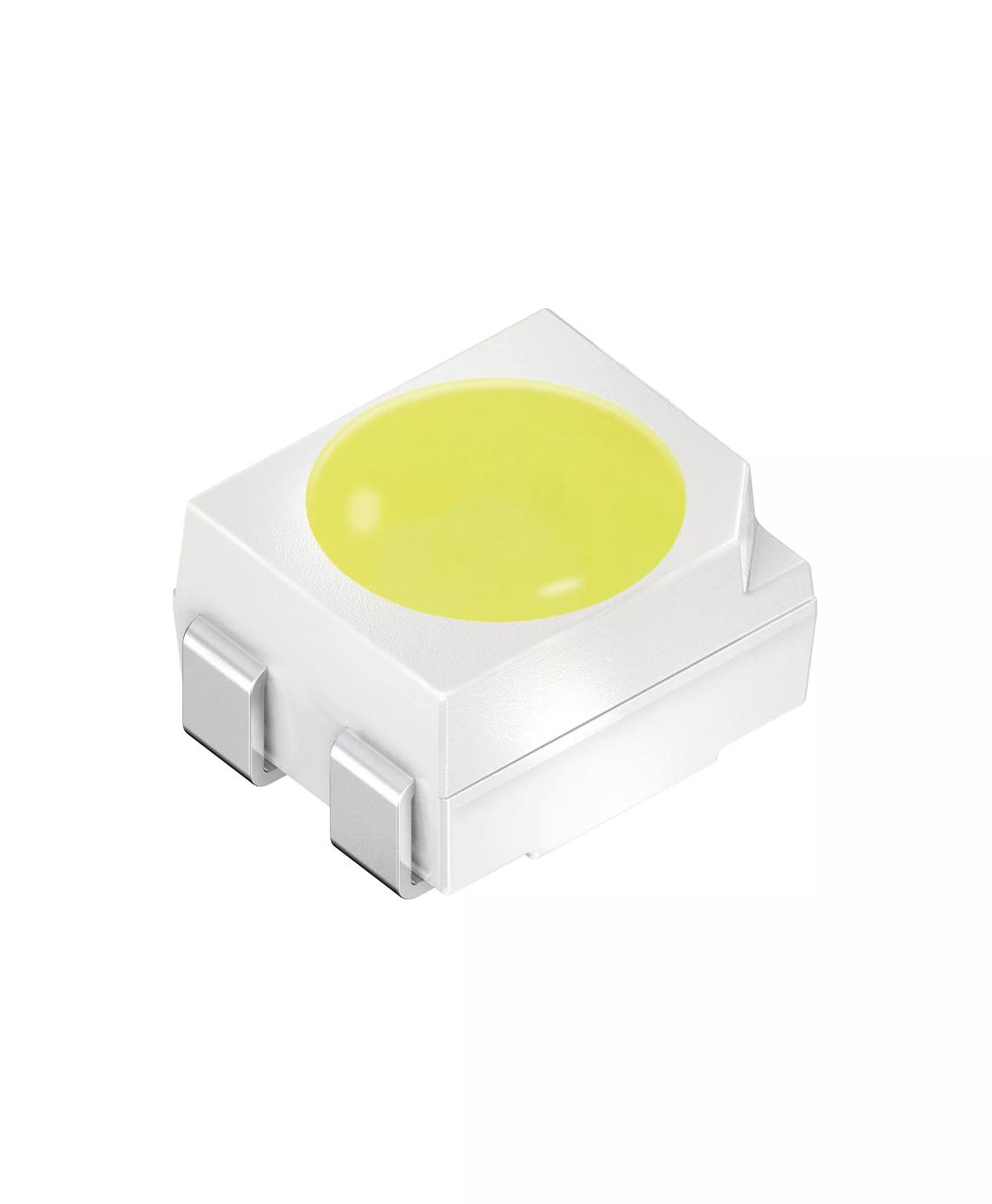

OSRAM Power TOPLED®, LW E67C

Name: OSRAM Power TOPLED®, LW E67C
Brand: ams-OSRAM AG

Discontinued

Description

PowerTOPLED, a powerful member of the TOPLED family. Thanks to their high luminous efficacy, the LEDs are ideal for rear light clusters and indicators on vehicles and for display panels for traffic control systems.

Datasheet

Select & order

Replacement Products

OSRAM TOPLED® E3014, KW DCLMS2.EC

The TOPLED Compact 3014 has a wide beam angle with a compact format (3.0 mm x 1.4 mm) and is a very small LED for screen backlighting. It is therefore ideal for injecting in light guides for homogeneous illumination applications where the TOPLED Compact 3014 never fails to impress with its performance on system level.

Details and Datasheet

OSRAM TOPLED®, LW TVSG.BB

TOPLED, SMT LED with integrated reflector. With our great experience in SMT LED we are able to offer a high quality product for all kind of applications.

Details and Datasheet

Details

Parameters

Color of emission

White

Electrical power

0.1 W

Low

Brightness

Φ_V

2.21 lm

I_V

0.7 cd

Φ_E

7.01 mW

I_E

2.23 mW/sr

Beam angle

∢

120 °

Operating temperature

T_op min.

-40 °C

T_op max.

100 °C

Dimension

3.2 mm

2.8 mm

1.9 mm

Application fields

Automotive & mobility Static signaling

Ordering codes

Product Type	Description	Order No.	Availability
LW E67C-T1V2-5K8L-1	I_v = 280 ... 1120 mcd (I_F = 30 mA)	Q65110A1932	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Digi-Key Buy now Mouser Buy now RS Buy now Rochester Buy now
