ams TCS3400 Color Sensor

×

Description

The TCS3400 device family provides color and IR (red, green, blue, clear and IR) ambient light sensing. The improved accuracy lux and color temperature measurement from color sensing is typically used to adjust the backlight intensity and correct the display color gamut. Additionally it can be used for light source type detection as it reports the IR content of the light.

Details

Features

  • RGBC and ALS support
  • Separate IR channel
  • 1M:1 dynamic range
  • 360⁰ circular RGBC photodiodes
  • Clear and IR reference channels

Benefits

  • Integrated single device optical solution
  • Enables IR light measurement for light-source detection
  • Enables accurate color sensing and ALS under varying lighting conditions
  • Enhancing angular response
  • Isolates color content and enhances color accuracy

Parameters

Function
color sensing
Supply voltage
3.0 V
min.
2.7 V
max.
3.6 V
Interface
input
I²C slave (400kHz)
output
I²C slave (400kHz)
Operating ambient temperature
min.
-40 °C
max.
70 °C
Integrated diffuser
No
Package
FN
Package dimension
l
2.4 mm
w
2.0 mm
h
0.65 mm
Input/Output Voltage
1.8 V & VDD

Ordering information

Product Type Description Ordering code Availability
TCS34001FN Q65114A1106 Discontinued
TCS34001FN 12k pcs / reel Q65114A2757 Full production
TCS34001FNM Q65114A1100 Discontinued
TCS34001FNM 500 pcs / reel Q65114A2751 Full production
TCS34003FNM Q65114A1101 Discontinued
TCS34003FNM 500 pcs / reel Q65114A2752 Full production
TCS34007FN Q65114A1104 Discontinued
TCS34007FNM Q65114A1102 Discontinued
TCS34007FNM 500 pcs / reel Q65114A2753 Full production

Downloads

Datasheets

TCS3400 Color Light-to-Digital Converter · Datasheet · PDF · en_US

Application note

Basic Pre-Production Light & Color Sensor Solution Validation Process · Product related · PDF · en_US
ColorSensors AN000166 · Product related · PDF · en_US
ColorSensors AN000261 · Product related · PDF · en_US
ColorSensors AN000518 · Product related · PDF · en_US
LightSensors AN000519 · Product related · PDF · en_US

Technical documents

TCS3400_FS000200_1-00 · Factsheet · PDF · en_US

Environmental documents

MDF_503460002_TCS34001FN_MD000132_2-00 · Material declaration form · PDF · en_US
MDF_503460002_TCS34001FNM_MD000133_2-00 · Material declaration form · PDF · en_US
MDF_503460002_TCS34003FNM_MD000134_2-00 · Material declaration form · PDF · en_US
MDF_503460002_TCS34007FNM_MD000135_2-00 · Material declaration form · PDF · en_US
TCS3400_RC000106_3-00 · RoHS certificate · PDF · en_US

Images

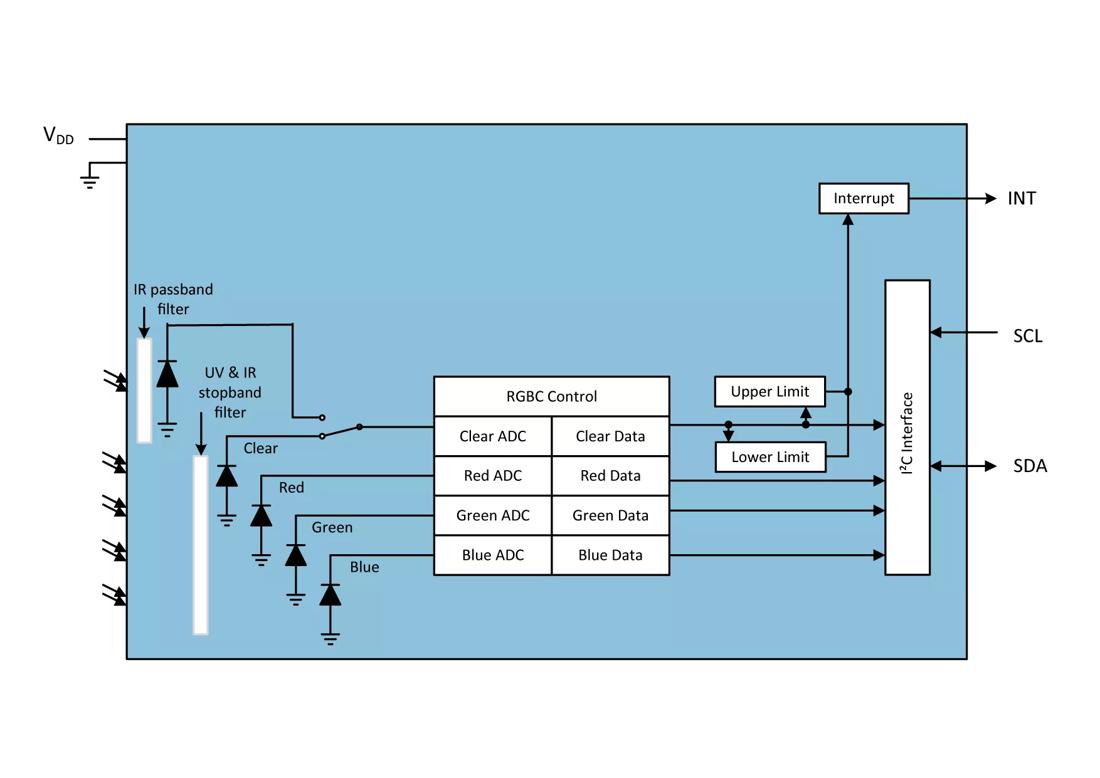

TCS3400 · Block diagram · PNG
