Details
Features
- Integrated factory calibrated 940nm IR VCSEL
- Display synchronization with highly programmable Proximity Start Delay (PSD)
- Crosstalk and ambient light cancellation
- Optimized sensitivity and noise level
- Wide configuration range
- Red, green, blue and clear ALS channels with improved sensitivity
- Highly programmabe gain and integration time
- Display synchronization with highly programmable ALS Start Delay (ASD)
- 737kHz ALS clock rate
- 1KB FIFO
- 1.8V power supply with 1.8V I2C bus
- Configurable sleep mode
- Interrupt driven device
- Proximity saturation flag
- Digital and analog ALS saturation flags
- VSYNC status check
- Detection Range 3cm (detection) - 5cm (release)
Benefits
- Proximity detection behind OLED displays
- Ambient light sensing behind OLED displays
- Low power consumption
- Integrated status checking for all functions
Parameters
Function
color sensing
proximity detection
Supply voltage
1.8
V
min.
1.7
V
max.
2.0
V
Interface
input
I²C slave (400kHz)
output
I²C slave (400kHz)
Operating ambient temperature
min.
-30
°C
max.
85
°C
Emitter quantity
1 integrated
Integrated diffuser
No

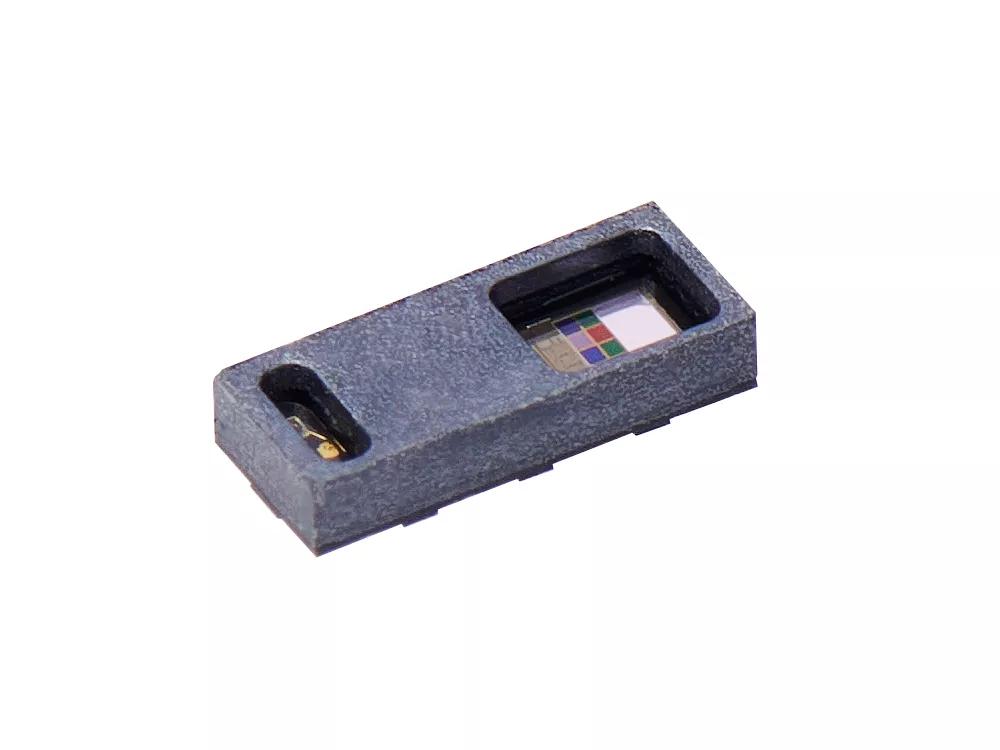

Package
Module
Package dimension
l
4.65
mm
w
1.86
mm
h
0.9
mm
Input/Output Voltage
1.8 V
Application fields
