ams TSL2520 - Ambient Light Sensor

New
×
New

Description

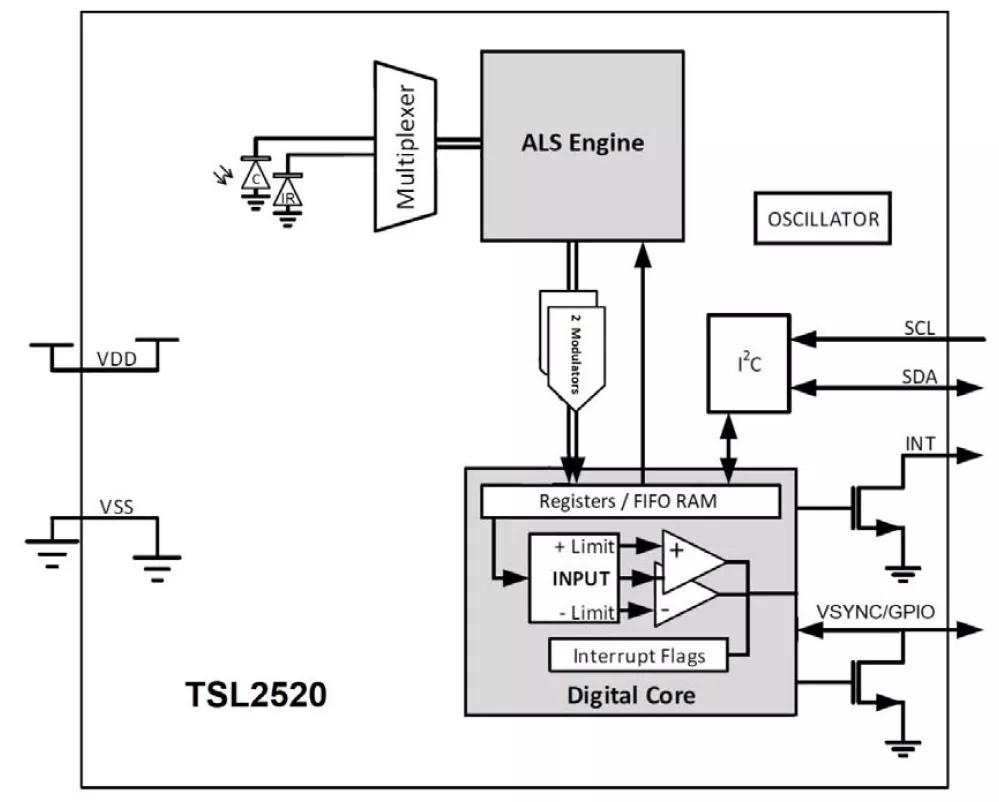

The TSL2520 features ambient light sensing and comes in a low-profile and small footprint, L2.0mm x W1.0mm x H0.5mm optical QFN package. The Ambient Light Sensing function provides two concurrent ambient light sensing channels, which can be arbitrarily connected to the photodiodes via a programmable multiplexer. TSL2520 incorporates a set of infrared photodiodes and a set of clear photodiodes. The clear photodiode area is covered with a UV/IR blocking filter. This architecture accurately measures ambient light and enables the calculation of irradiance of different light sources. Calculation results help to improve display appearance and picture taking.

Details

Features

  • 1mlux detectable illuminance
  • UV/IR blocking filter for clear channel
  • ALS interrupt with thresholds
  • Flicker-immune ALS sensing with programmable integration time
  • Configurable sleep mode
  • Interrupt-driven device
  • Digital and analog saturation flags

Benefits

  • Invisible ALS sensing under any glass type
  • Unique fast ALS integration mode
  • Low power consumption and minimum I²C traffic
  • Integrated status checking for all functions

Parameters

Function
ambient light sensing
Supply voltage
1.8 V
min.
1.7 V
max.
1.98 V
Interface
input
I²C slave (1MHz)
output
I²C slave (1MHz)
Operating ambient temperature
min.
-30 °C
max.
85 °C
Integrated diffuser
No
Package
OLGA
Package dimension
l
2.0 mm
w
1.0 mm
h
0.5 mm
Input/Output Voltage
1.8 V
