Details

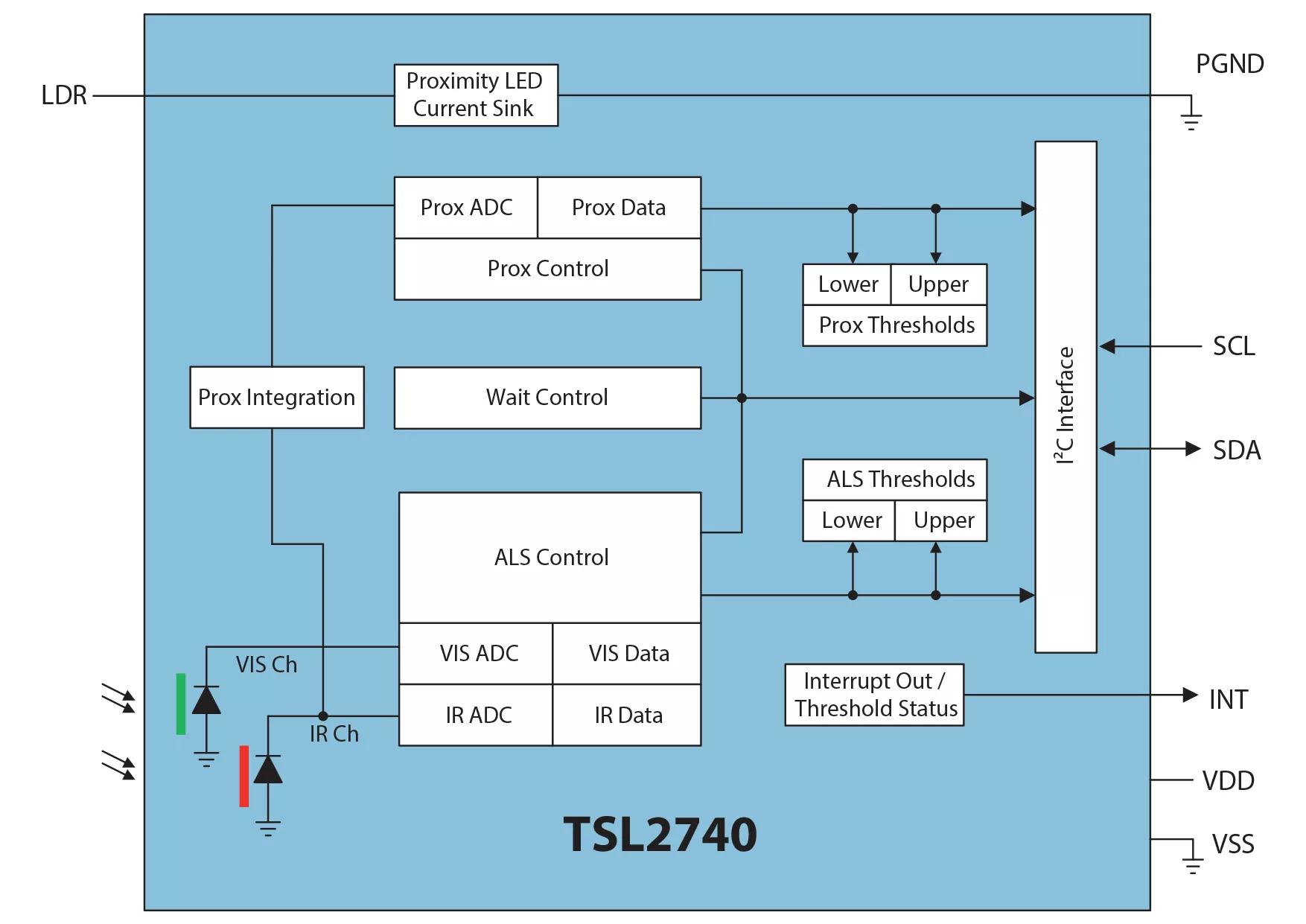

Features
- Integrated on-chip photopic filter
- High Sensitivity down to mLux levels
- 0.18µm process technology with 1.8V I²C
- 1M:1 dynamic range
- Programmable proximity offset adjustment
- Proximity automatic ambient light subtraction
Benefits
- Provides near photopic responsiveness
- Design flexibility for dark glass & placement
- Reduces power consumption
- Enables dark room to sunlight operation
- Compensates for unwanted IR energy system crosstalk reflection
- Compensates for unwanted ambient light photodiode current
Parameters
Function
ambient light sensing
proximity detection
Supply voltage
1.8
V
min.
1.7
V
max.
1.98
V
Interface
input
I²C slave (400kHz)
output
I²C slave (400kHz)
Operating ambient temperature
min.
-30
°C
max.
85
°C
Emitter quantity
external
Integrated diffuser
No
Package
QFN
Package dimension
l
2.0
mm
w
2.0
mm
h
0.5
mm
Input/Output Voltage
1.8 V
Application fields
