ams TSL2540 Ambient Light Sensor

×

Description

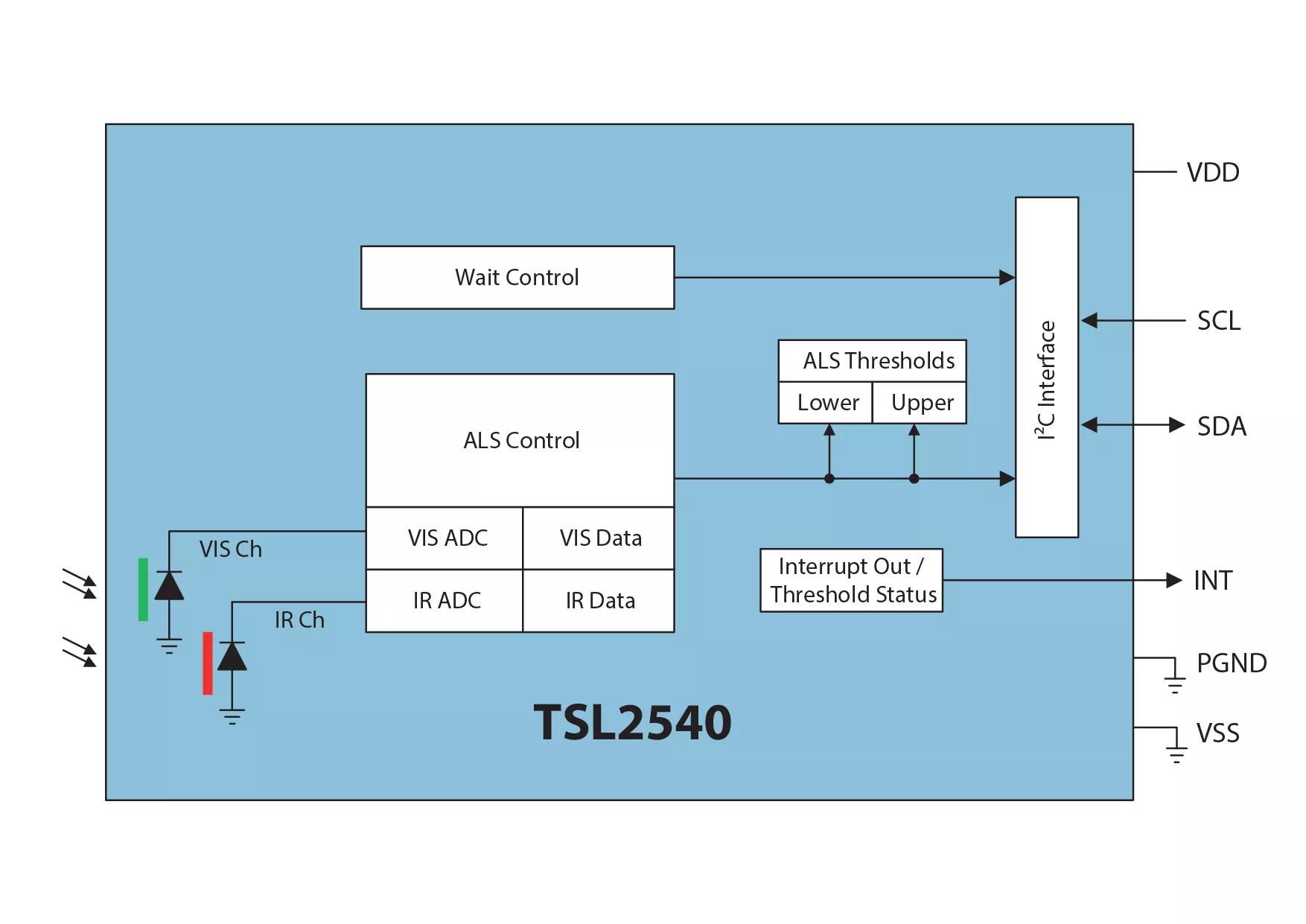

The TSL2540 is a very-high sensitivity light-to-digital converter that approximates the human eye response to light intensity under varying lighting conditions and transforms this light intensity to a digital signal output capable through a 1.8V I²C interface. The ALS sensor features 2 output channels, a visible channel and an IR channel. The visible channel has a photodiode with a photopic Interferometric UV and IR blocking filter and the IR channel has a photodiode with an IR pass filter. Each channel has a dedicated integrating data converter which converts photodiode current into a 16-bit digital output. This digital output can be interfaced with a microprocessor where illuminance in lux is derived to accurately measure ambient light to control a displays backlight.

Details

Features

  • Integrated on-chip photopic filter
  • High Sensitivity down to mLux levels
  • 0.18µm process technology with 1.8V I²C
  • 1M:1 dynamic range
  • Automatic AUTO Zero/Dark Count control

Benefits

  • Provides near photopic responsiveness
  • Design flexibility for dark glass and placement
  • Reduces power consumption
  • Enables dark room to sunlight operation
  • Eliminates system electrical background noise

Parameters

Function
ambient light sensing
Supply voltage
1.8 V
min.
1.7 V
max.
1.98 V
Interface
input
I²C slave (400kHz)
output
I²C slave (400kHz)
Operating ambient temperature
min.
-30 °C
max.
85 °C
Integrated diffuser
No
Package
QFN
Package dimension
l
2.0 mm
w
2.0 mm
h
0.5 mm
Input/Output Voltage
1.8 V

Ordering codes

Product Type Description Order No. Availability
TSL25403M
TSL25403
