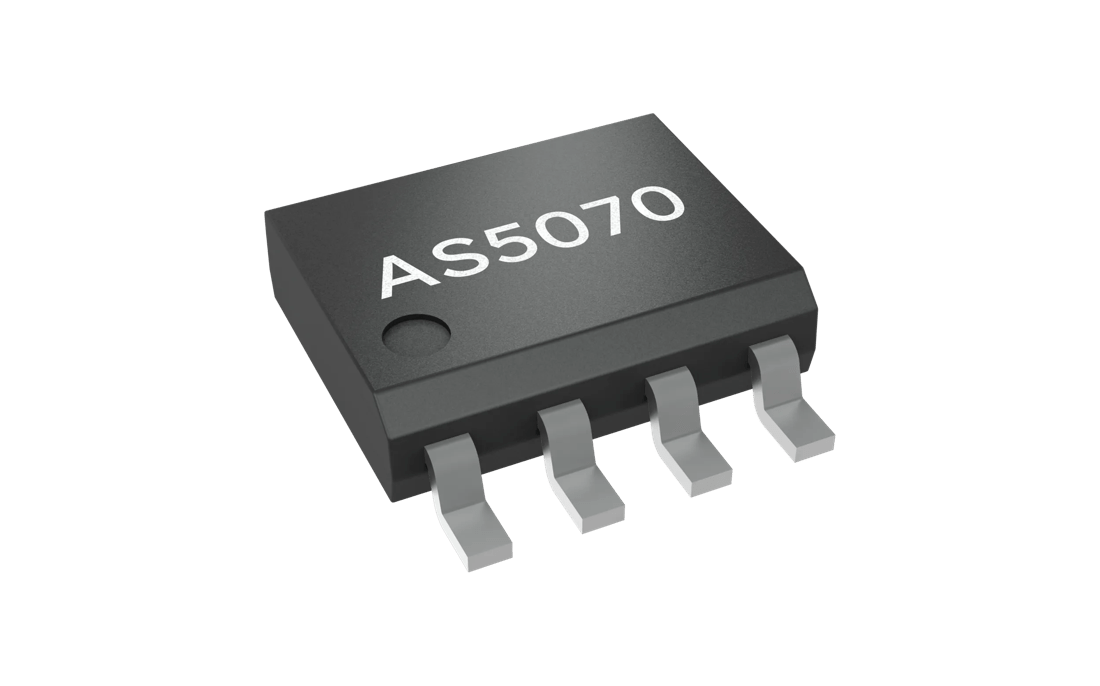

ams AS5070 - High Resolution Position Sensor

Longevity January 2031
×
Longevity January 2031

Description

The AS5070 is a high-resolution angular position sensor for precise absolute angle measurement. The AS5070 is available with an analog output interface (AS5070A) or a digital output interface (AS5070B). The latter can be programmed as a PWM or a SENT-compliant output interface.
Based on a Hall sensor technology, this device measures the orthogonal component of the flux density (Bz) over a full-turn rotation and compensates for external stray magnetic fields with a robust architecture based on a 14-bit sensor array and analog front-end (AFE). A sub-range can be programmed to achieve the best resolution for the application. To measure the angle, only a simple two-pole magnet rotating over the center of the package is required. The magnet may be placed above or below the device. The absolute angle measurement provides an instant indication of the magnet’s angular position. The AS5070 operates at a supply voltage of 5V, and the supply and output pins are protected against overvoltage up to +20V. In addition the supply pins are protected against reverse polarity up to –20V. With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.

.

Details

Features

  • 12-bit resolution @90° minimum arc
  • Low output noise, low inherent INL
  • Magnetic stray field immunity
  • Diagnostics

Benefits

  • Resolve small angular excursion with high accuracy
  • Accurate angle measurement
  • Higher durability and lower system costs (no shield needed)
  • Enabler for safety critical applications

Ordering codes

Product Type Description Order No. Availability
AS5070A-HSOM
AS5070A-HSOT
AS5070B-HSOM
AS5070B-HSOT
