세부 정보
다운로드
기타 문서는
다운로드 센터에서 검색하세요
데이터시트
AS1115 DS000206
Datasheet
환경 문서
라이프사이클 문서
AS1115_EN001032_1-00
Product discontinuation notification (PDN)
이미지
AS1115

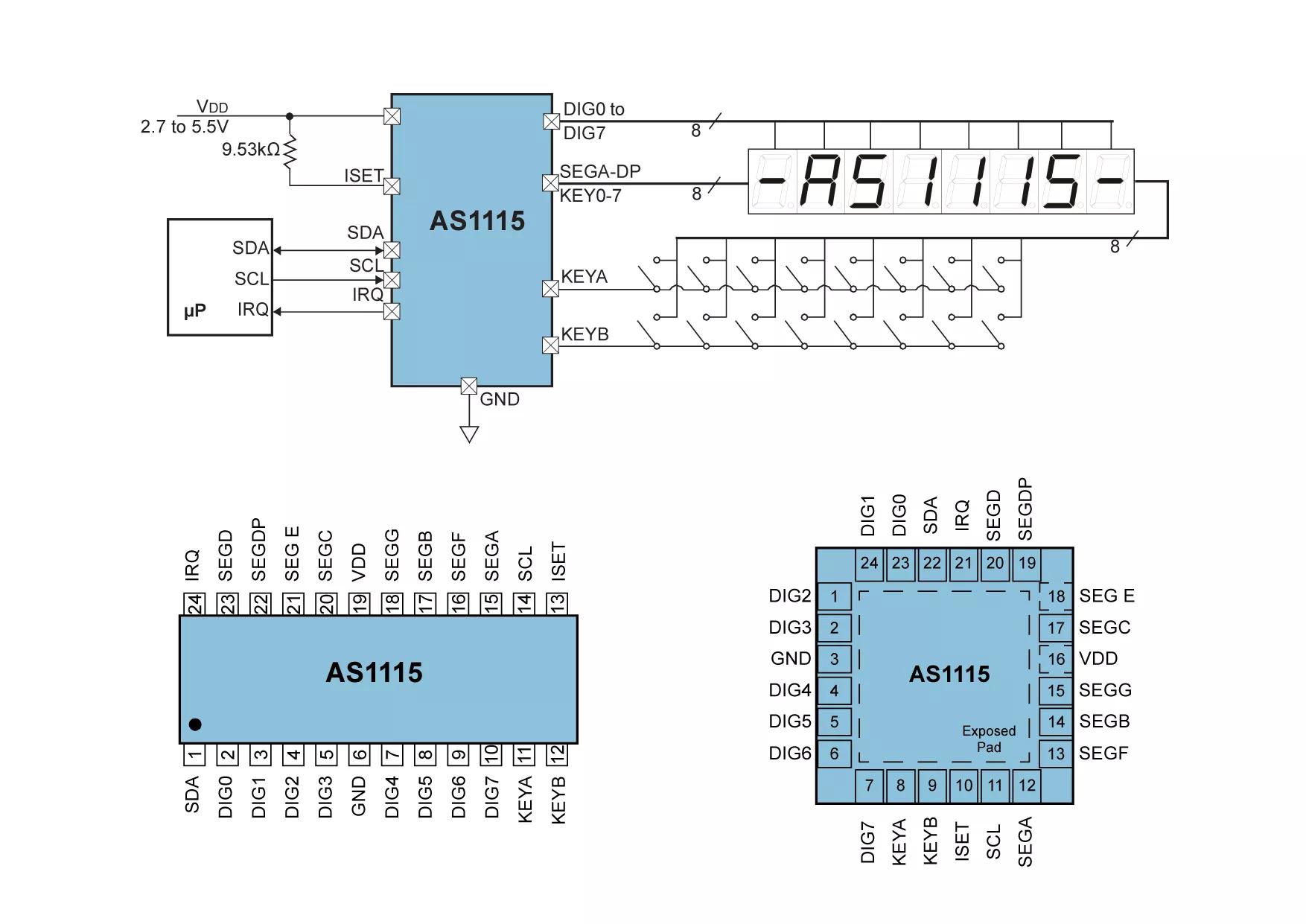

Block diagram
관련 보드, 키트 & 액세서리
ams AS1115_QF_DEM_ST_B Demonstrator kit
The AS1115 is 64 LEDs multiplexed LED driver with I²C interface and Keyscan. The device is powered via an USB connector from a PC or via an external power supply. The AS1115 demo kit BLUE can be controlled via the ams USB box in addition with the evaluation software or with an external device via an I²C interface. The demo kit comes with 64 LEDs on it.
ams AS1115_SS_REF_RB_WHITEGOODS Reference design kit
The AS1115 is a 64 LEDs multiplexed LED driver with I²C interface and keyscan. The device is powered via an USB connector from a PC or via an external power supply. The reference design can be controlled via the ams USB box in addition with the evaluation software or with an external device via an I²C interface. The AS1115 reference design comes with 34 single yellow LEDs, 4x7 segment digits and 13 buttons. All of this is controlled by the AS1115.
ams AS1115_QF_DEM_ST_R Demonstrator kit
The AS1115 is a 64 LEDs multiplexed LED Driver with I²C interface and Keyscan. The device is powered via an USB connector from a PC or via an external power supply. The AS1115 Demo Kit RED can be controlled via the ams USB box in addition with the evaluation software or with an external device via an I²C interface. The demo kit comes with 64 LEDs on it.
제품 선택기
원하는 제품을 찾으세요.
자세히 LED 드라이버
고효율 LED 드라이버 IC.
