Description

Simplify single or selectable CCT luminaire and replacement lamp designs with the AS7220 calibrated CCT and lumen maintenance smart lighting manager. Closed loop calibrated tri-stimulus color sensing for direct CIE color point mapping and control enables lower precision components to produce a higher-quality single or selectable-CCT luminaire or replacement lamp.

Configurable single CCT lifetime target values are stored at the time of manufacture, allowing the AS7220 to manage independent LED strings to assure consistent CCT over time, temperature, and the full range of dimming. In addition, a selection of industry standard CCT targets can be selected via resistor configuration to enable a single BOM to satisfy multiple CCT SKUs while increasing lifetime color precision. Target lumen output lux-criteria are similarly configurable and are used by the AS7220 to map internal lux to manage LED strings to replace "percent of drive current" with "percent of rated lumen output", for all dimming operations.

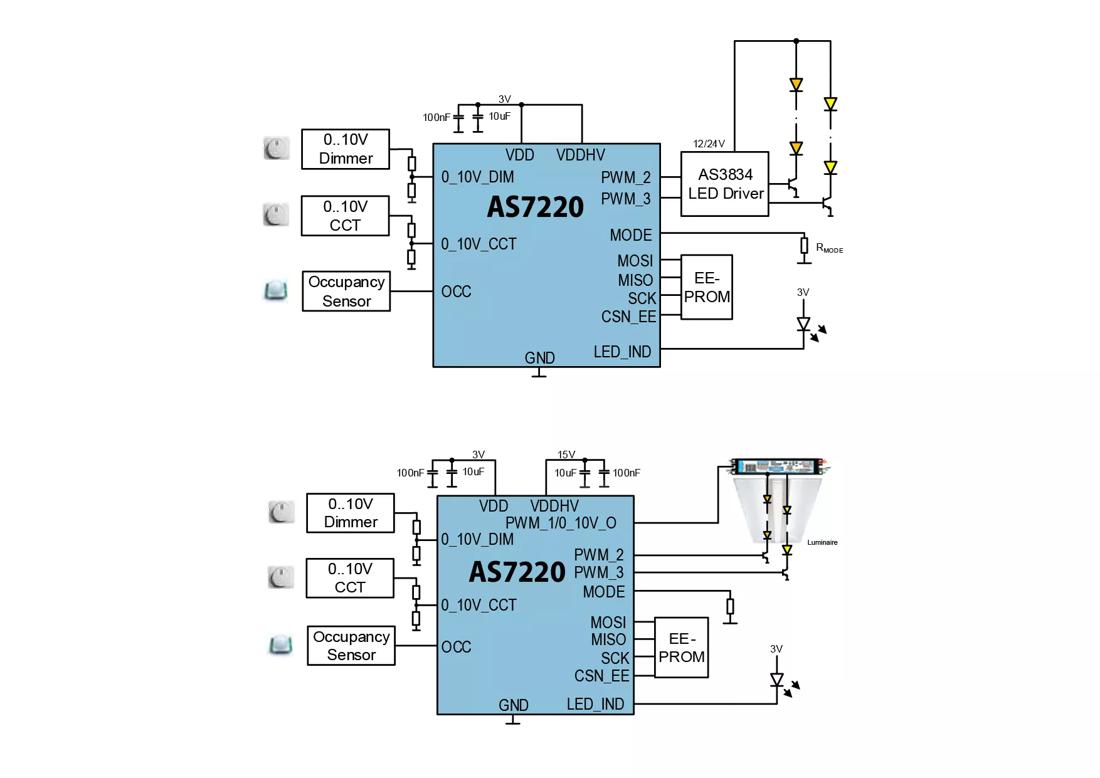

Legacy controls are fully supported with direct connection to 0-10V control,. Control outputs include direct PWM management of digital LED drivers or analog 0-10V for standard dimmable drivers.
Datasheet
AS7220 DS000509
English
Download
Select & order
Contact us Support

Details

Features

  • Intelligent controller with integrated XYZ tristimulus sensor and selectable CCT presets
  • Industry standard CCT presets via mode resistor, or single CCT target value in Flash
  • Selectable drive modes, including PWM-switched current steering or PWM-based duty cycle management
  • Remaps dimming response from percent of power to percent of rated lumen output
  • 20-pin LGA 4.5mm x 4.7mm x 2.5mm, -40°C to 85°C
  • Compact lighting-capable package with no added optics required

Benefits

  • Flexible manufacturing and stocking inventories… One BOM can support multiple CCT SKUs
  • Eliminates lumen/color binning penalty, significantly reducing cost of quality lighting
  • Enables cost-optimized single channel drivers to deliver a precise CCT result
  • 100% lumen maintenance factor over the life of the luminaire

Ordering codes

Product Type Description Order No. Availability
AS7220-BLGM
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
AS7220-BLGT
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product

Downloads

Datasheets

AS7220 DS000509

Datasheet
EN
DE
CN
JP

Application note

Technical documents

Lifecycle documents

Images

Software
