Details

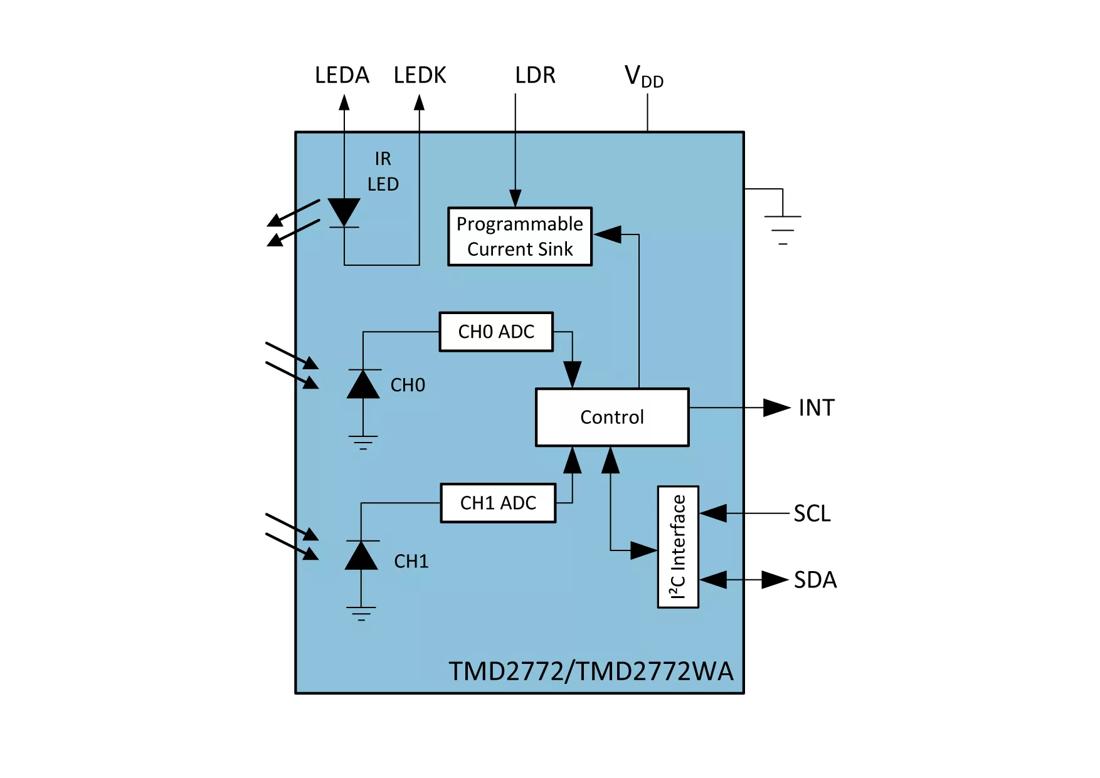

Features
- Ambient light sensing, proximity detection, and IR LED in a single module
- Wide variety of programmable features with very high sensitivity
- Proximity detection
- Maskable ALS and proximity interrupt
- Power management
- I²C fast mode compatible interface
- 3.94mm x 2.36mm x 1.35mm package
- Available with standard 25° (TMD2772) and wide 50° (TMD2772WA)
Benefits
- Minimizes board space requirements
- Approximates human eye response over a wide variety of lighting conditions
- Reduces external processor burden
- Enables dynamic power dissipation control
- Industry standard two-wire interface
- Small foot print module
- Optimizes ambient light sensing angle
Parameters
Function
ambient light sensing
proximity detection
Supply voltage
3.0
V
min.
2.2
V
max.
3.6
V
Interface
input
I²C slave (400kHz)
output
I²C slave (400kHz)
Operating ambient temperature
min.
-40
°C
max.
85
°C
Emitter quantity
1 integrated
Integrated diffuser
No
Package
Module
Package dimension
l
3.94
mm
w
2.36
mm
h
1.35
mm
Input/Output Voltage
VDD
