ams TMF8805 1D Time-of-Flight Sensor

Description

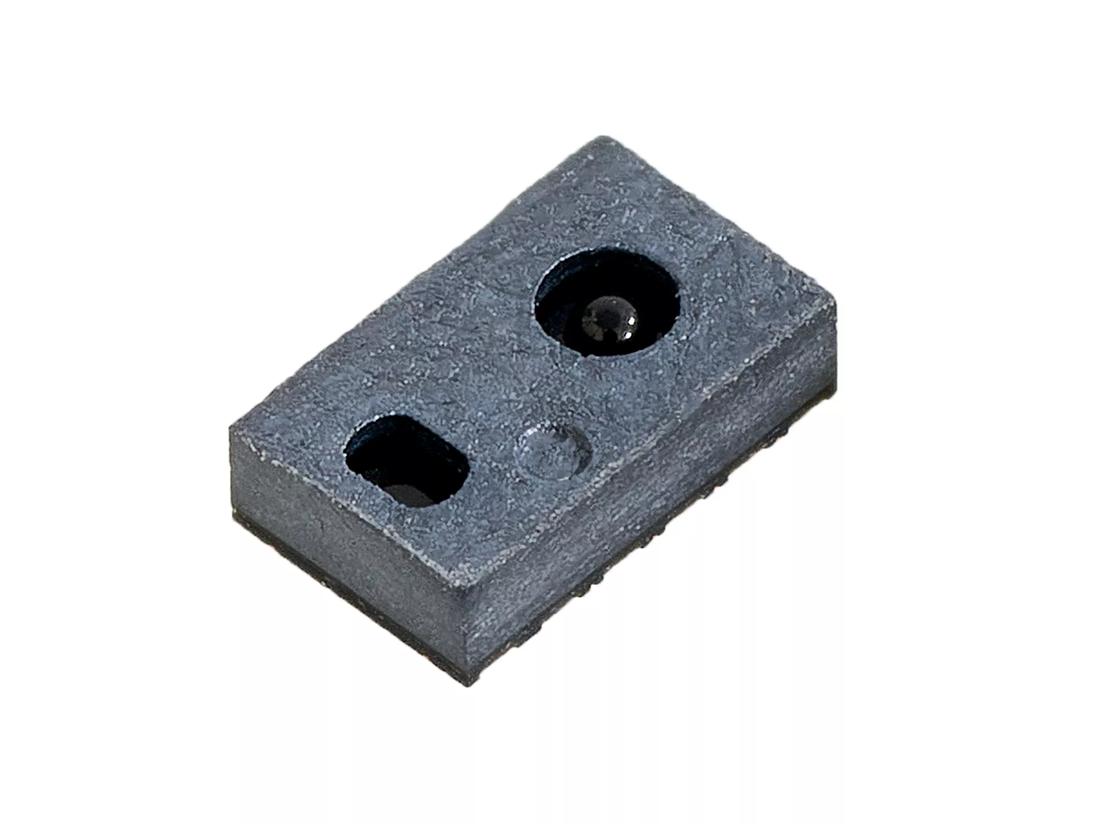

The TMF8805 is a time-of-flight (TOF) sensor in a single modular package with associated VCSEL. The TOF device is based on SPAD, TDC and histogram technology. The device achieves 2500mm detection range.

Details

Features

  • Direct ToF technology with high sensitivity SPAD detection
  • Fast Time-to-Digital Converter (TDC) architecture
  • Sub-nanosecond light pulse
  • 20 – 2500mm distance sensing @ 30Hz
  • On-chip histogram processing
  • 940nm VCSEL Class 1 Eye Safety
  • High performance on-chip sunlight rejection filter and algorithm
  • Industry’s smallest modular OLGA 2.2 x 3.6 x 1.0 mm package

Benefits

  • Delivers high SNR, wide dynamic range and no multi-path reflections
  • Enables dark and sunlight environment distance measurement within ±5%
  • Provides best-in-class resolution ranging mode detection sensing
  • Enables accurate distance measurements
  • Provides high accuracy, greater distance between cover glass, dynamic cover glass calibration, dirt or smudge removal and crosstalk compensation
  • Eye-safety circuitry stops VCSEL driver if VCSEL fault occurs
  • Optical filters with algorithm support enables high ambient light resilience
  • Reduce board space requirements, enables low-profile system designs in restricted space Industrial Designs

Parameters

Sensor zones
single
Number of detection zones
1
Detection distance
max.
250 cm
Wafer level optical filters
No
Field of view
24 °
Operating ambient temperature
min.
-30 °C
max.
70 °C
Supply voltage
min.
2.7 V
max.
3.3 V
3.0 V
Wavelength
940 nm
Package
OLGA12
Package dimension
l
3.6 mm
w
2.2 mm
h
1.0 mm
Interface
input
I²C
output
I²C

Ordering codes

Product Type Description Order No. Availability
TMF8805-1BM Tape & reel (7″ reels) 500 pcs/reel Q65114A1113
TMF8805-1B Tape & reel (13″ reels) 5000 pcs/reel Q65114A1112
