Description

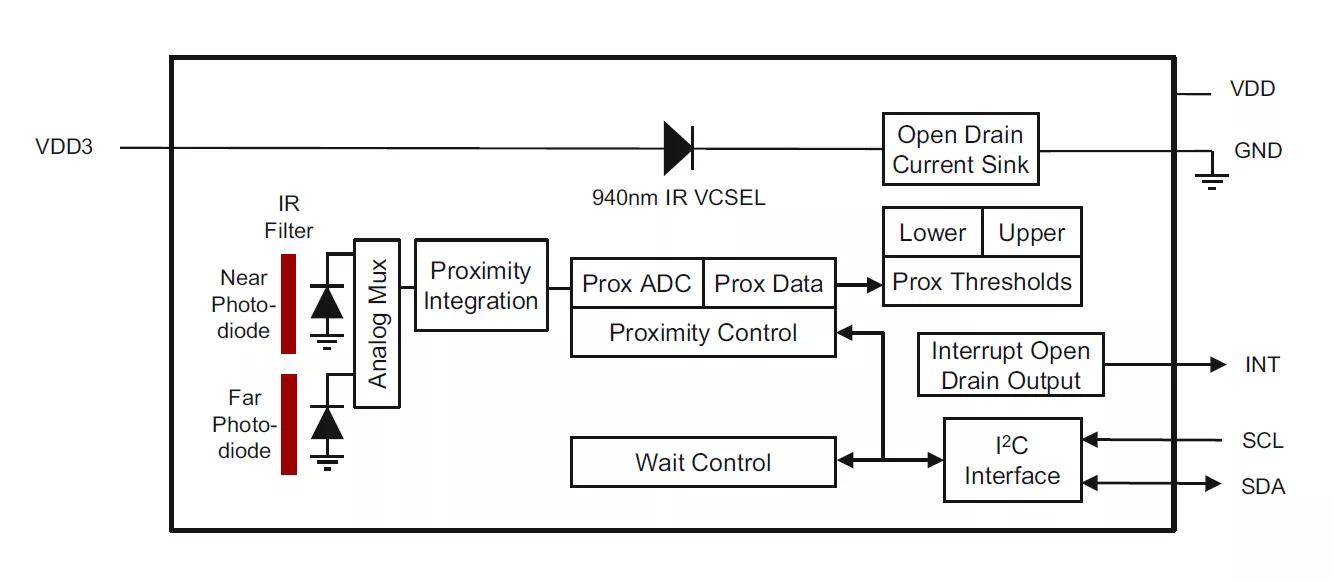

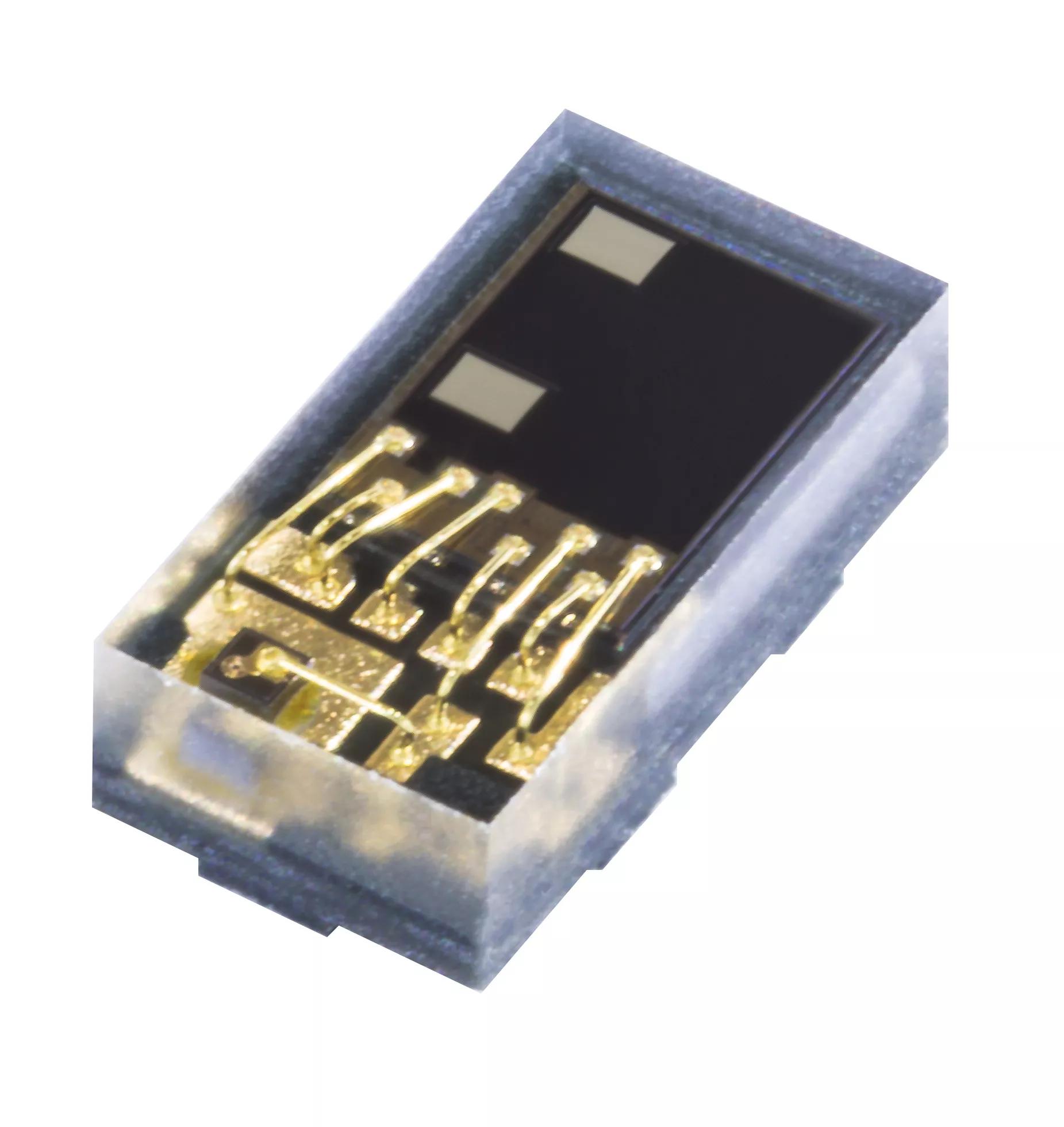

The TMD2635 is an advanced IR proximity sensor module suited for short range proximity measurement detection and offered in the industry's smallest size (1.0mm x 2.0mm) and thin (0.5mm) optical land grid array module that incorporates a 940nm IR VCSEL and is factory calibrated for IR proximity response. The proximity detection feature provides nearby object detection by photodiode detection of reflected IR energy sourced by the integrated VCSEL emitter. Sensitivity, power consumption, and noise can be optimized with adjustable timing and power. Detect/release events can be interrupt driven, and occur when proximity result crosses upper and/or lower threshold settings. The proximity engine features advanced crosstalk noise cancellation through a wide range offset adjustments to compensate for unwanted IR energy reflection at the sensor. Proximity results are further improved by automatic ambient light subtraction.
Datasheet
TMD2635 DS000674
English
Download
User guide Select & order
Contact us Support

Details

Features

  • Ultra-Small (1.0mm3) volumetric size
  • Proximity crosstalk compensation
  • 940nm IR proximity with automatic ambient light subtraction
  • Automatic single alternative I²C address option
  • Split near/far photodiodes and offset emitter/detector placement
  • 0.18µm process technology with 1.8V I²C

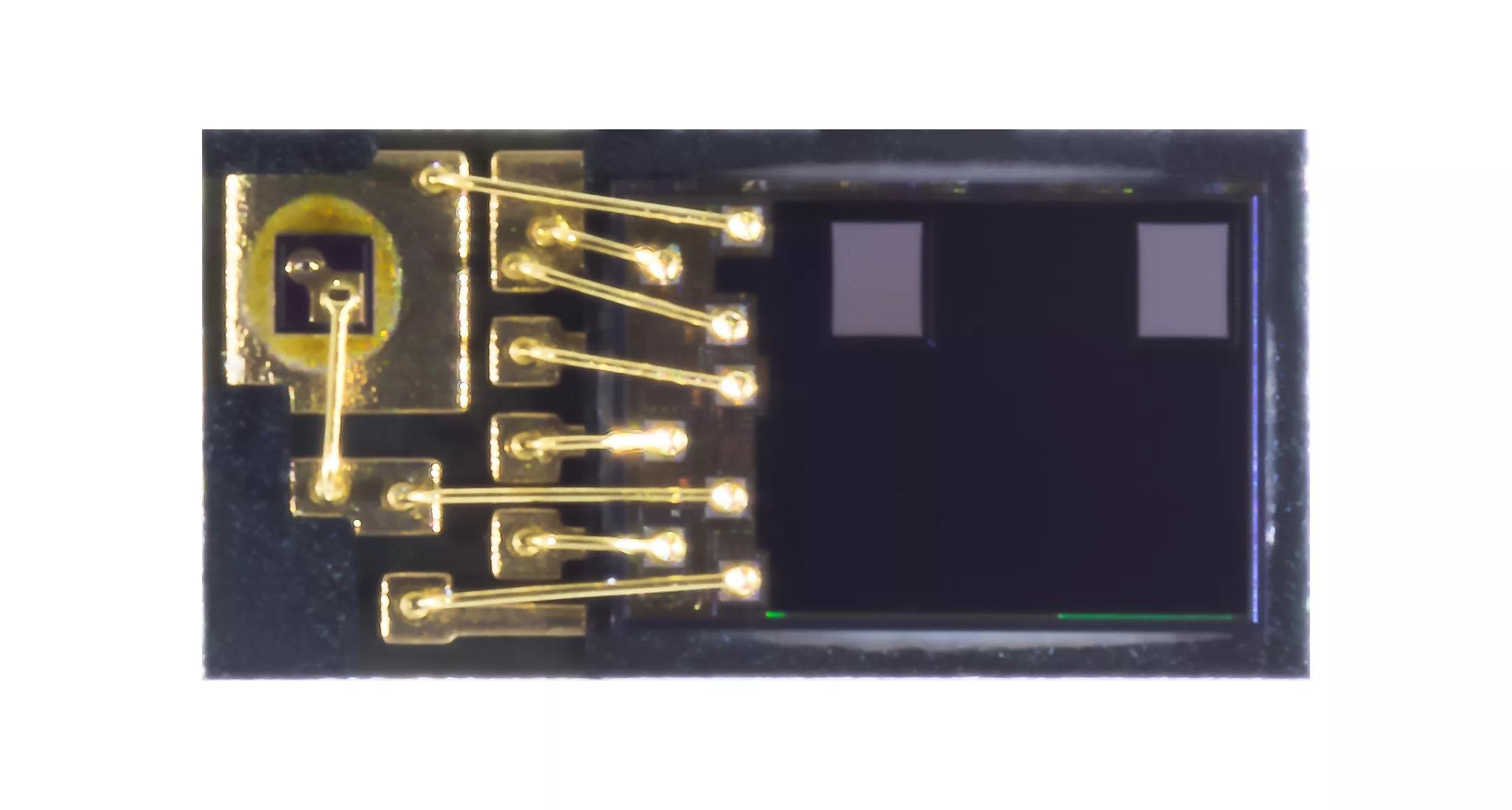

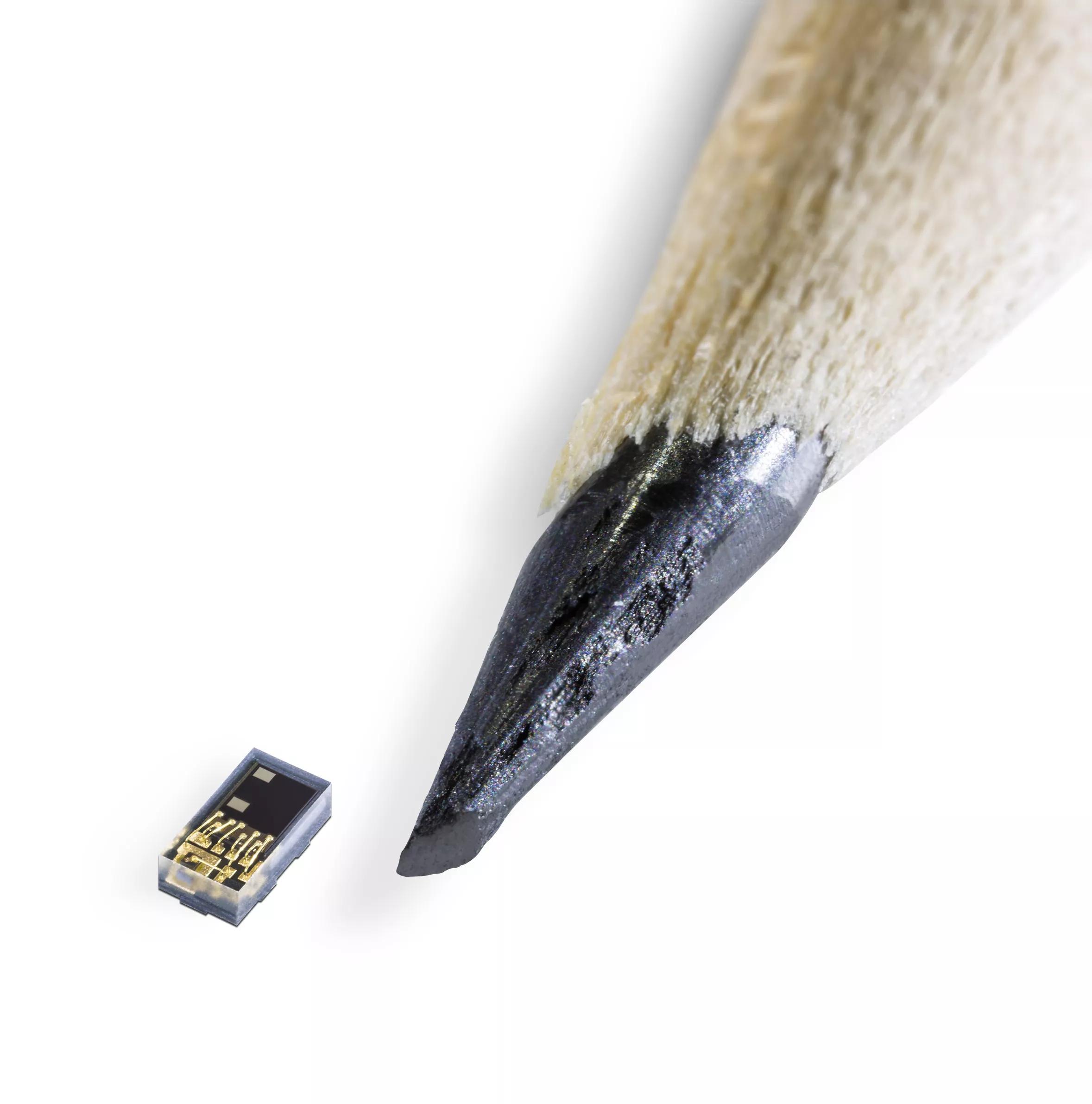

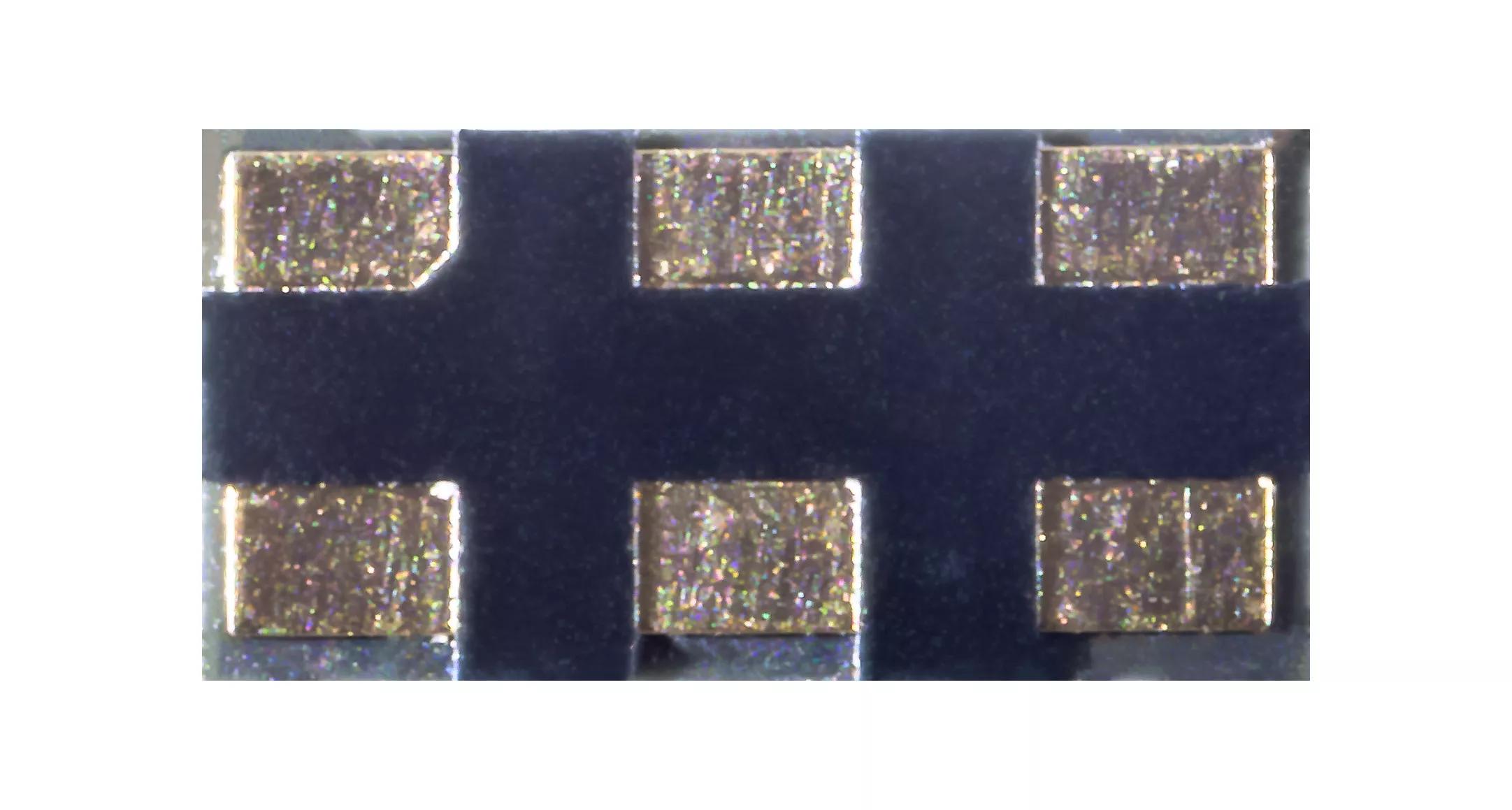

  • Small footprint and low profile 2.0mm x 1.0mm x 0.5 mm package

Benefits

  • Ideal for the smallest size applications
  • Enables accurate and stable measurements behind highly diffusive and spectrally distorting materials in low light level environments
  • Compensates for unwanted ambient light photodiode current
  • Enables an additional device to reside on I²C bus with 0x38
  • Enhances industrial design flexibility of sensor apertures sizes and shapes (1.5mm circular or 1x2mm oval)
  • Reduces overall system power consumption
  • Reduce board space requirements and enable low-profile system design

Parameters

Function
proximity detection
Supply voltage
1.8 V
min.
1.7 V
max.
2.0 V
Interface
input
I²C slave (400kHz)
output
I²C slave (400kHz)
Operating ambient temperature
min.
-30 °C
max.
85 °C
Emitter quantity
1 integrated
Integrated diffuser
No
Package
Module
Package dimension
l
2.0 mm
w
1.0 mm
h
0.5 mm
Input/Output Voltage
1.8 V

Ordering codes

Product Type Description Order No. Availability
TMD26353
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
TMD26353M
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Farnell
Buy now
Mouser
Buy now
