ams AS5600L Magnetic Rotary Position Sensor

Longevity January 2031
×
Longevity January 2031

Description

The AS5600L is an easy to program magnetic rotary position sensor with a high-resolution 12-bit I2C or PWM output. This contactless system measures the absolute angle of a diametric magnetized on-axis magnet. This AS5600L is designed for contactless potentiometer applications and its robust design eliminates the influence of any homogenous external stray magnetic fields.
The industry-standard I2C interface supports simple user programming of non-volatile parameters without requiring a dedicated programmer.

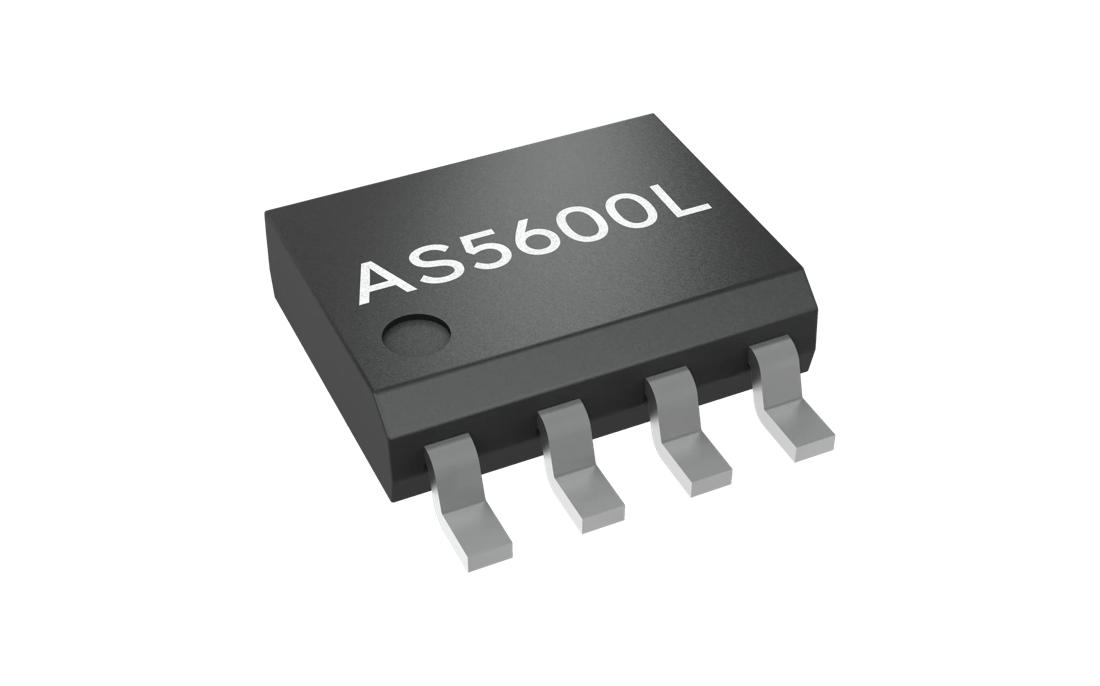

By default the output represents a range from 0 to 360 degrees. It is also possible to define a smaller range to the output by programming a zero angle (start position) and a maximum angle (stop position). The AS5600L is also equipped with a smart low power mode feature to automatically reduce the power consumption. An input pin (DIR) selects the polarity of the output with regard to rotation direction. If DIR is connected to ground, the output value increases with clockwise rotation. If DIR is connected to VDD, the output value increases with counterclockwise rotation. The AS5600L is available in a standard SOIC-8 package and in a WL-CSP for applications requiring small-sized sensing solution with a size of 2.07mm x 2.63mm x 0.6mm. Both variants are qualified for a temperature range from -40°C to 125°C.

With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.

Details

Features

  • Contactless magnetic angle measurement
  • Easy programming of start and stop positions in 3-wire mode (no programmer needed) or over the I2C interface
  • User programmable I2C address
  • Maximum angle programmable from 18° up to 360°
  • Automatic magnet detection
  • WL-CSP (2.07mm x 2.63mm) or SOIC-8 package
  • Wide temperature range: -40°C to 125°C

Benefits

  • Highest reliability and durability
  • Multiple sensors on one I2C bus
  • Simple programming
  • Low-power consumption
  • Great flexibility on angular excursion
  • Robust environmental tolerance

Parameters

Die in package
single
Operating ambient temperature
min.
-40 °C
max.
125 °C
Package
SOIC-8
WL-CSP
Function
angle sensing

Ordering codes

Product Type Description Order No. Availability
AS5600L-ASOM SOIC-8 7” Tape & Reel in dry pack 500 pcs/reel Q65114A1047
AS5600L-ASOP SOIC-8 13” Tape & Reel in dry pack 2500 pcs/reel Q65114A1046
AS5600L-AWLM WL-CSP 7” Tape & Reel in dry pack 1000 pcs/reel Q65114A1049
AS5600L-AWLT WL-CSP 13” Tape & Reel in dry pack 6500 pcs/reel Q65114A1048
