ams AS7341 – 11-Channel Spectral Color Sensor
AS7341 is an 11-channel multi-spectral sensor for color detection and spectral analysis applications. The spectral response is defined in the wavelengths from approximately 350nm to 1000nm. 6 channels can be processed in parallel by independent ADCs while the other channels are accessible via a multiplexer. 8 optical channels cover the visible spectrum, one channel can be used to measure near infra-red light and one channel is a photo diode without filter (“clear”). The device also integrates a dedicated channel to detect 50Hz or 60Hz ambient light flicker. The flicker detection engine can also buffer data for calculating other flicker frequencies externally. The NIR channel in combination with the other VIS channel may provide information of surrounding ambient light conditions (light source detection). The device can also be synchronized to external signals via pin GPIO. AS7341 integrates filters into standard CMOS silicon via Nano-optic deposited interference filtertechnology and its package provides a built in aperture to control the light entering the sensor array. Control and Spectral data access is implemented through a serial I²C interface. The device is available in an ultra-low profile package with dimensions of 3.1mm x 2mm x 1mm.
Details
Features
- Integrated interference filters directly deposited on standard CMOS silicon
- 6 spectral channels spaced at 450, 500, 550, 570, 600 and 650 nm
- Integrated microcontroller on chip and low power consumption
- 2 integrated LED drivers
- Selectable interfaces UART or standard I²C
- in-factory calibrated
Benefits
- Stable filter conditions over temperature and life time
- Detection of spectral fingerprints in visible spectrum
- Signal processing on chip, reduced hardware costs
- Sample illumination without external LED driver
- Easy connecting to mobile devices or external µController
Parameters
Sensor Type
6-channel visible interference 430-670nm
I/O
I²C master or UART (mode configurable)
Applications
Color/Content analysis, visible spectrometry
Supply Voltage
[V]
2.7 to 3.6
Size
[mm]
4.5 x 4.7 x 2.5
Package
20-pin LGA with aperture
Temperature Range
[°C]
-40 to 85
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability | |
|---|---|---|---|---|
| AS7262-BLGM |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
Order now
|
||
| AS7262-BLGT |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
Order now
Digi-Key
Buy now
|
×
Downloads
For other documents visit our
Download center
Datasheets
AS7262 DS000486
Datasheet
Application note
Technical documents
AS7262_FS000166_1-00
Factsheet
Environmental documents
AS7262_RC000201_1-00
RoHS certificate
Lifecycle documents
AS72xx_PN000172_1-00
Product change notification (PCN)
Images
AS7262_BD000205_1-00

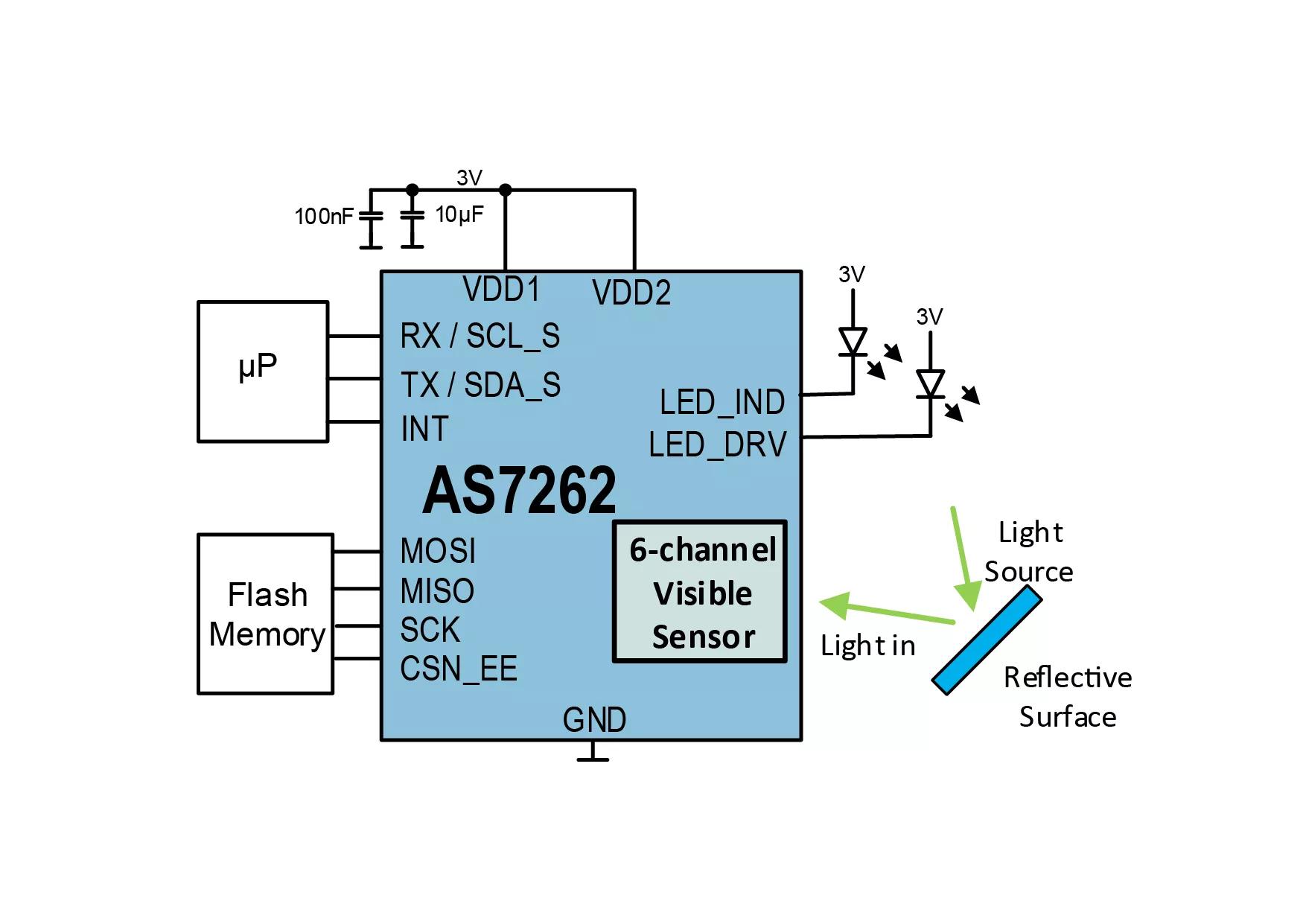

Block diagram
