ams AS5306 Linear Sensor

Description

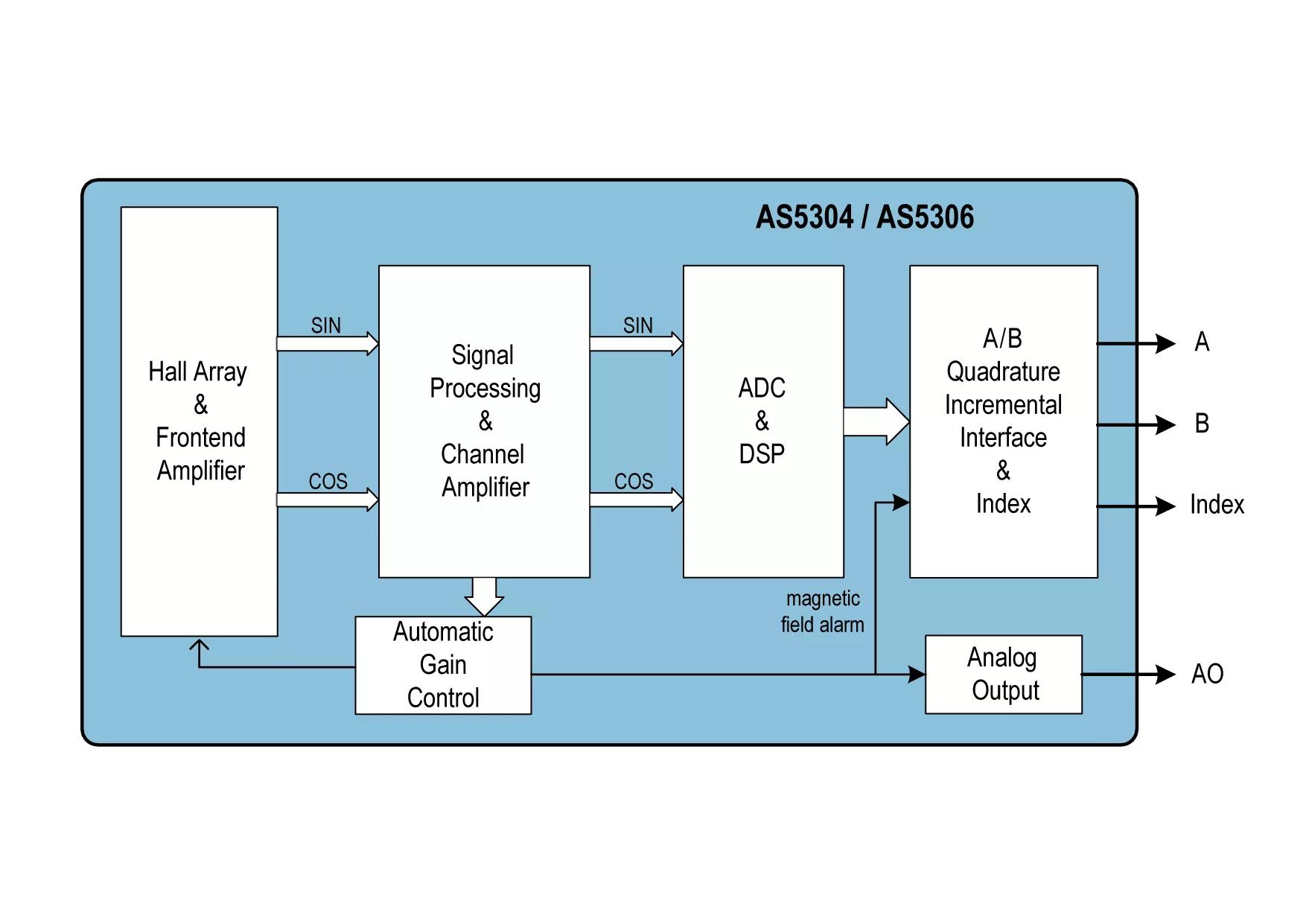

The AS5306 is an incremental position sensor for linear and rotary off-axis applications based on contactless magnetic sensor technology. To measure position and motion a multi-pole magnet strip or ring has to be used. There are 160 pulses per 2.4 mm pole pair length on the standardized quadrature output interface with an index pulse (=ABI-interface) with a maximum speed of 15m/s.

With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.

Details

Features

  • Contactless motion and position sensing
  • High speed measurement
  • No programmer needed
  • Immune to external magnetic stray fields

Benefits

  • Highest reliability and durability in harsh environments
  • Control of high speed movements
  • Easy to use
  • Lower material cost (no magnetic shielding needed)

Parameters

Package
TSSOP-20
Min. Pole Pair Length [mm]
2.4
Remark
For linear: Use magnetic strip \ For off-axis: Use ring magnet
Resolution
160-step
Max. Speed [m/s]
12
Temperature Range [°C]
-40 to +125
Output
ABI
Supply Voltage [V]
5.0
