Details
Features
- DAEC ™ Dynamic angle error compensation DFS ™ Dynamic filter system
- Magnetic stray field immunity
- Developed according ISO26262, diagnostics, dual redundant chip version ASIL-D capable, Safety Element out of Context (SEooC)
- AEC-Q100 Grade 0 qualified
- Independent output interfaces: SPI, ABI, UVW, PWM
Benefits
- Easy to use – saving costs on DSP
- Higher durability and lower system costs (no shield needed)
- Enabler for safety critical applications
- Suitable for automotive applications
- Versatile choice of the interface
Parameters
Resolution
14
bit
Interface
output
PWM
ABI
UVW
SPI
Rotation speed
max.
28000
rpm
Die in package
dual
Supply voltage
3.3
V
5
V
Operating ambient temperature
min.
-40
°C
max.
150
°C

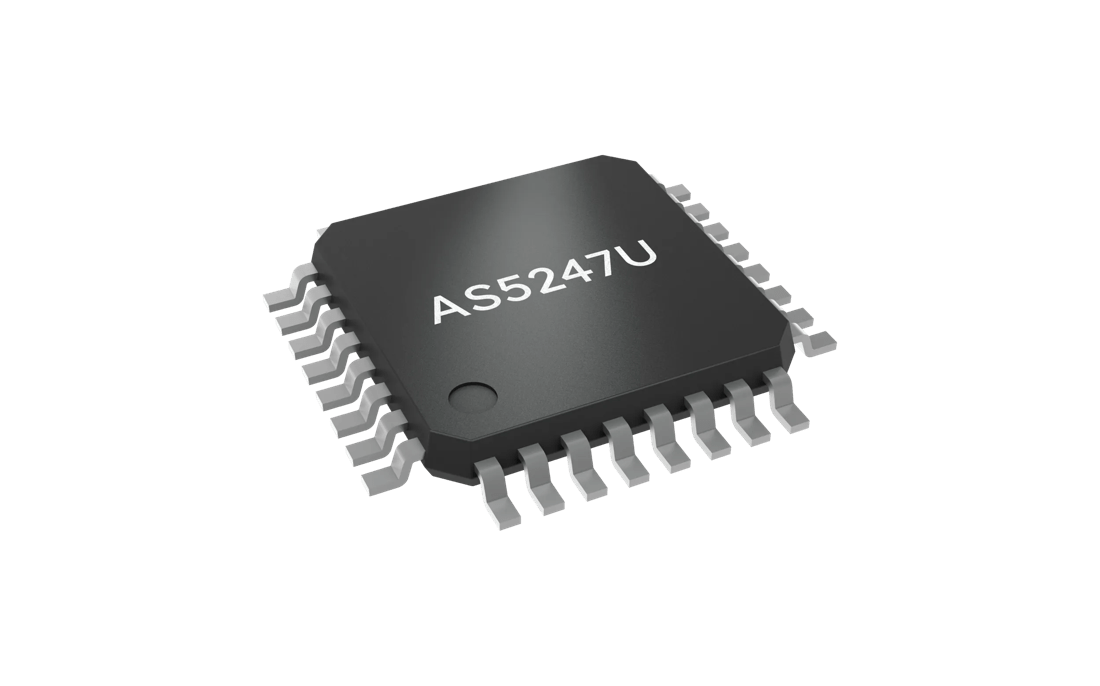

Package
TQFP32
Automotive qualified
AEC-Q100
ASIL qualified
ASIL D
Accuracy typ.
0.4
°
Function
on-axis angle position sensing
Sensing technology
magnetic
Application fields
Downloads
Datasheets
Datasheet
User guides
User guide
User guide
User guide
Application note
Product related
Product related
Product related
Product related
Product related
Technical documents
Factsheet
Factsheet
Technical note
Environmental documents
Material declaration form
Material declaration form
Material declaration form
RoHS certificate
Lifecycle documents
Product discontinuation notification (PDN)
Images
Images
Block diagram
