詳細
特徴
- Ultra-high ALS and color sensitivity
- 1024x dynamic range
- 50/60 Hz Ambient light flicker detection channel
- Clear, IR, and Wideband reference channels
- High proximity crosstalk compensation
- 0.18µm process technology with 1.8V I²C
利点
- Enables maximum design flexibility for operation behind dark inked glass
- Enables dark room to sunlight operation
- Minimizes flicker effect in 50/60 Hz light-source environments for non global-shutter image sensors
- Clear and Wideband reference channels enable color content isolation
- Enables operation behind highly diffusive glass by compensating for unwanted reflected crosstalk
- Reduces power consumption in battery powered applications
パラメーター
I²C Bus
1.8V
Package
FN, pin count 12
Recommended Operating Distances
<15 cm
Supply Voltage
[V]
1.7 - 2.0
Temperature Range
[°C]
-30 to 70
Programmable
Gain, Integration Time, Interrupt
アプリケーション分野
ダウンロード
その他の資料は、こちらをご覧ください：
ダウンロードセンター
データシート
TCS3707 DS000625
Datasheet
アプリケーションノート
環境関連文書
TCS3707_RC000116_1-00
RoHS certificate
画像
TCS3707

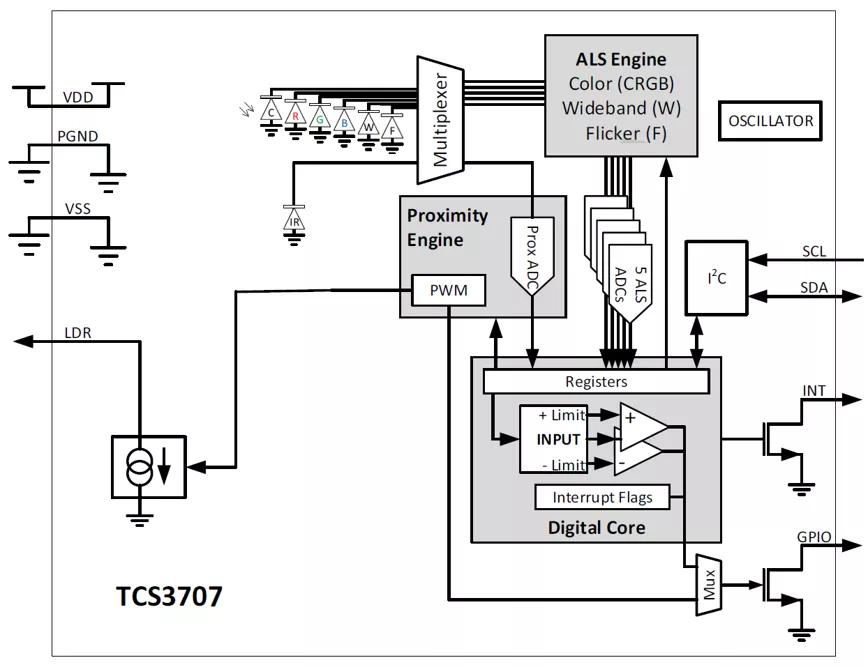

Block diagram
Related boards, kits & accessories
ams TCS3707_EVM_ST Evaluation kit
The TCS3707 Evaluation Kit comes with everything needed to evaluate the TCS3707 ALS/Color and Proximity sensor. The evaluation kit comprises of a main controller board with a PIC microcontroller, an industry standard USB 2.0 interface (with a USB cable), a TCS3707 daughter card, "plug-n-play" USB HID class drivers, software documentation, and GUI software allowing users to control the proximity sensor settings as the PIC takes the I2C digital outputs to calculate proximity.
