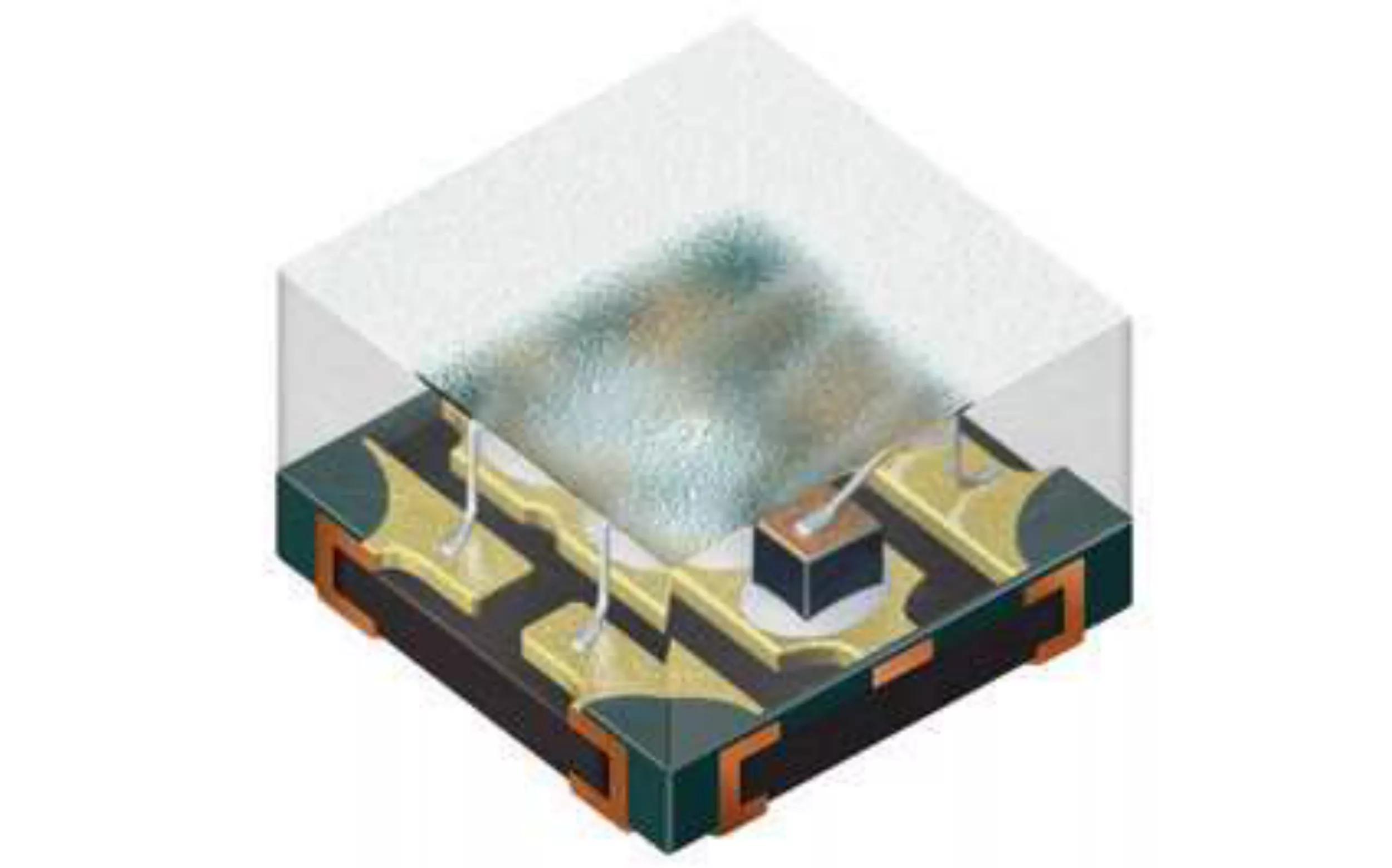

OSRAM Multi Chip LED, LRTBR48G

OSRAM Multi Chip LED, LRTBR48G
×
×

Description

This device is especially designed for full color video walls. The 4-lead common anode technology facilitates an additive mixture of color stimuli by independent driving of each chip. Very compact package size fits best for high resolution narrow pitch video walls.
Datasheet Choose product
Contact us Support

Details

Application fields

Lighting Entertainment

Ordering codes

Product Type Description Order No. Availability
LRTBR48G-R5S5-0107-W N/A (IF□=□2□mA)
● Iv = 125 ... 315 mcd (IF□=□5□mA) 		Q65113A1544
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
LRTBR48G-P9Q7-1+R7S5-26+NP-68 ● Iv = 63 ... 140 mcd (IF□=□10□mA)
● Iv = 140 ... 315 mcd (IF□=□5□mA)
● Iv = 28 ... 71 mcd (IF□=□5□mA) 		Q65112A3521
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
×
