Details
Features
- Photopic sensor for accurate LUX control
- Compatible with standard dimmer, occupancy controls and ballasts
- Built-in PWM generator for precise 1% dimming
- 2.3 x 2.5mm WLCSP package, 5 x 5mm LGA
Benefits
- Automatic daylighting
- Direct 0-10V inputs/outputs
- Direct PWM interfaces
- Choice of compact 20-pin packages
Parameters
Sensor Type
Photopic ambient light
Applications
Retrofit daylighting
UART
No
Smart Ltg Command Set
n/a
Package
LGA(5x5)
I²C
Master
Reference Networking
n/a
Lux/CCT Control
Lux hold
Application fields
Downloads
For other documents visit our
Download center
Images

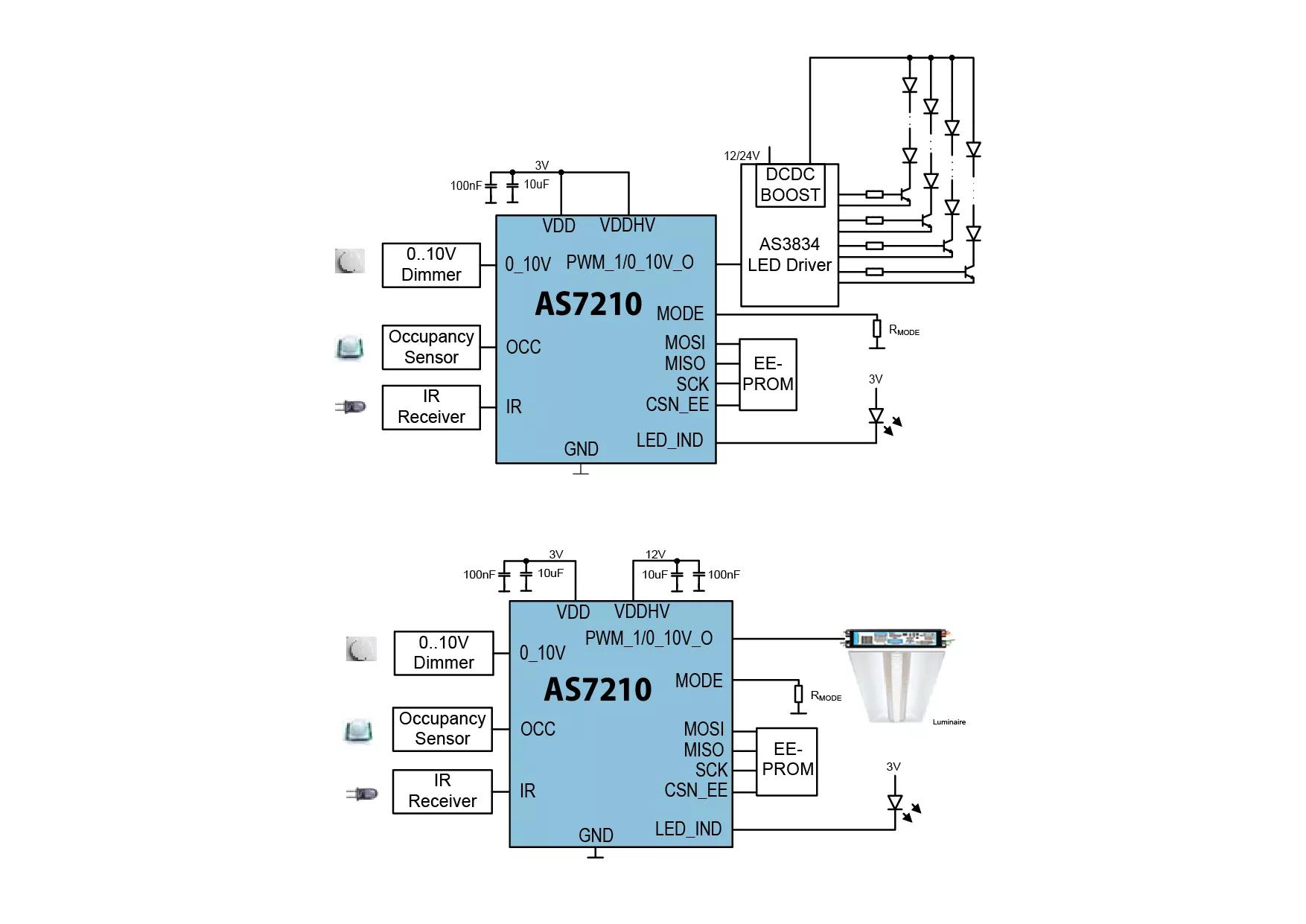

AS7210_BD000348_1-00
Block diagram
Related boards, kits & accessories
ams AS722X-1X_DEM_RB_SLIK Demonstrator kit
The Smart Lighting Integration Kit (SLIK) is a complete color tuning luminaire reference design solution, built around the AS7221 network-enabled smart lighting manager. The kit applies to the full AS72xx smart lighting manager, including the AS7221, AS7220, AS7211, and AS7210. The integration kit is designed to move developers rapidly from demo to proof-of-concept integration into a prototype luminaire design. It consists of two interconnected modules: the AS7221 sensor, networking and power module with integrated Bluetooth Smart (BLE); and the LED module with two strings of white LEDs for tuning (warm and cool). The SLIK includes the 2-section board, a diffuser, USB to serial interface cable, and power supply with US/European adapter. The included memory stick includes complete user documentation, GUI and drivers.
